RKC INSTRUMENT RB Series - Page 172

8. PARAMETER DESCRIPTION
IMR02C15-E4
8-48
Continued from the previous page.
Continued on the next page.

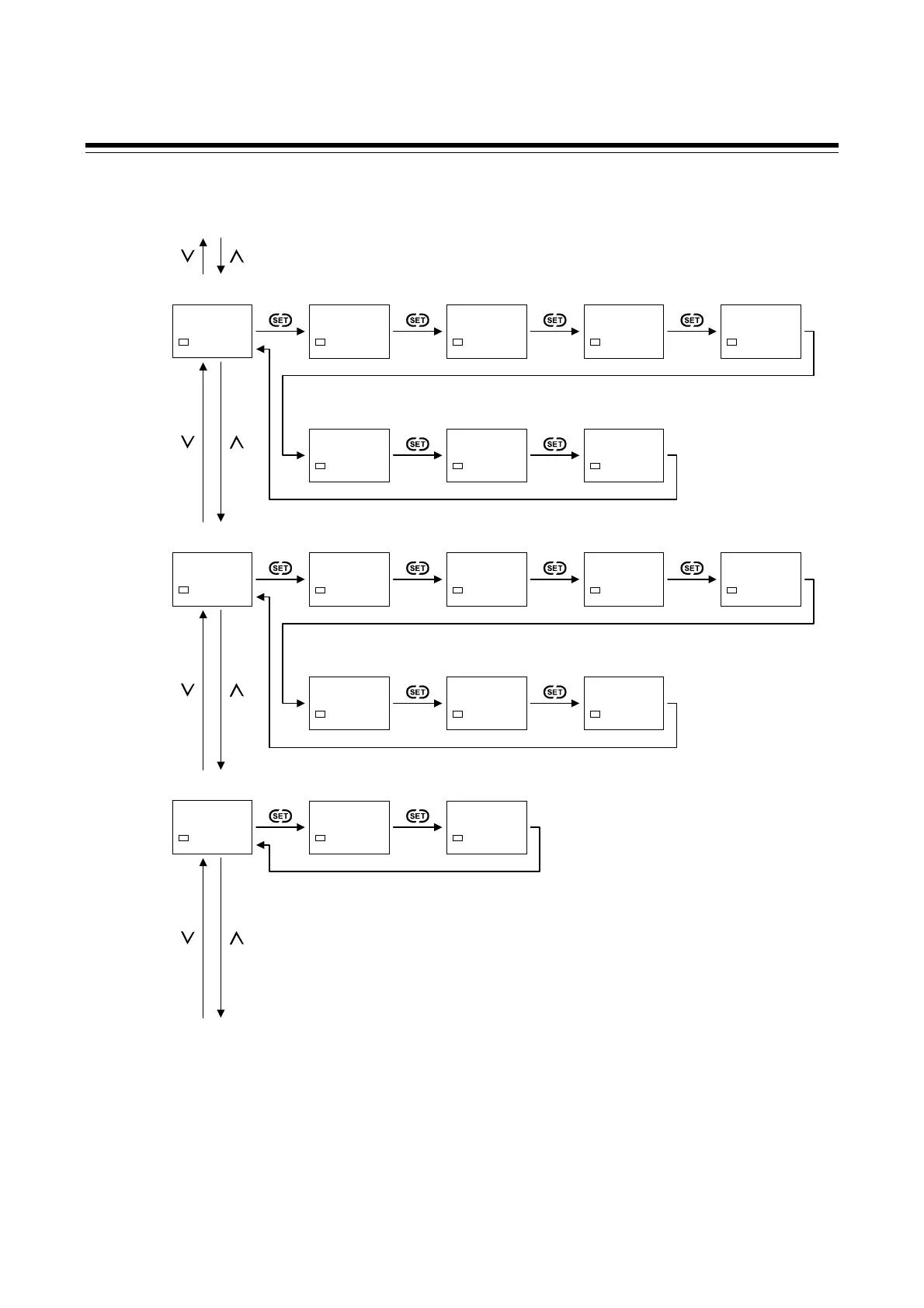

Function block 43
(F43)
F43.
SV1
(P. 8-101)
ES3
0000
SV1
Event 3 type
EHO3
0000
SV1
Event 3 hold action
EH3$
0002
SV1
Event 3
differential gap
EBO3
0000
SV1
Event 3 output action
at input burnout
(P. 8-101) (P. 8-110) (P. 8-113) (P. 8-115)
EXC3
0000
SV1
Energized/De-energized
of Event 3 output
(P. 8-116)
EVT3
0000
SV1
Event 3 timer
EIL3
0000
SV1
Event 3 interlock
(P. 8-118) (P. 8-120)
Function block 44
(F44)
F44.
SV1
(P. 8-101)
ES4
0000
SV1
Event 4 type
EHO4
0000
SV1
Event 4 hold action
EH4$
0002
SV1
Event 4
differential gap
EBO4
0000
SV1
Event 4 output action
at input burnout
(P. 8-101) (P. 8-110) (P. 8-113) (P. 8-115)
EXC4
0000
SV1
Energized/De-energized
of Event 4 output
(P. 8-116)
EVT4
0000
SV1
Event 4 timer
EIL4
0000
SV1
Event 4 interlock
(P. 8-118) (P. 8-120)
Function block 42 (F42)
Function block 44
(F44)
F45.
SV1
CTR
1000
SV1
CT ratio
HBC
0003
SV1
Number of HBA
delay times
(P. 8-122) (P. 8-123)
Function block 51 (F51)
(P. 8-122)
