8. PARAMETER DESCRIPTION
IMR02C15-E4 8-49
Continued from the previous page.
Continued on the next page.

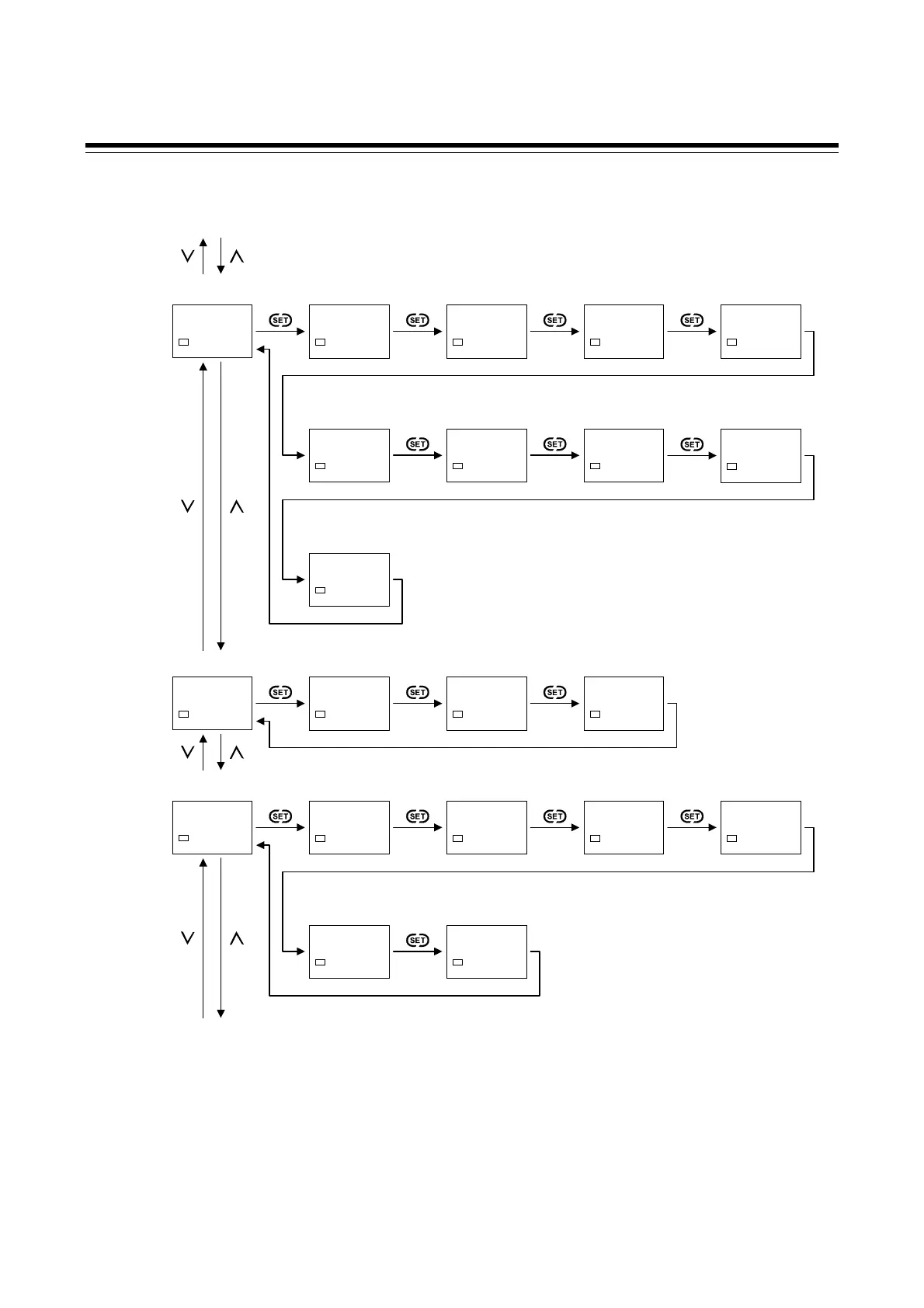

Function block 51
(F51)
F51.
SV1
(P. 8-124)
OS
0000
SV1
Direct/Reverse
action
OSC
0000
SV1
Cool action
OHH$
0001
SV1
ON/OFF action
differential gap (upper)
OHL$
0001
SV1
ON/OFF action
differential gap (lower)
(P. 8-124) (P. 8-125) (P. 8-126) (P. 8-126)
OBO
0000
SV1
Control output at
burnout
(P. 8-127)
BUMP
0001
SV1
Bumpless mode setting
DTP
0000
SV1
Derivative action
(P. 8-127) (P. 8-128)
Function block 52
(F52)
F52.
SV1
(P. 8-130)
ATC
0000
SV1
AT cycles
ATH
0010
SV1
AT
differential gap time
STS
0000
SV1
ST start condition
(P. 8-130) (P. 8-131) (P. 8-132)
Function block 45 (F45)
Function block 70 (F70)
TU
0002
SV1
Time setting of
proportional cycle time
[heat-side]
(P. 8-129)
tU
0002
SV1
Time setting of
proportional cycle time
[cool-side]
(P. 8-129)
Function block 60
(F60)
F60.
SV1
(P. 8-133)
CMPS
0000
SV1
Communication protocol
ADD
0000
SV1
Device address
BPS
0003
SV1
Communication speed
BIT
0000
SV1
Data bit configuration
(P. 8-133) (P. 8-133) (P. 8-134) (P. 8-134)
INT
0010
SV1
Interval time
(P. 8-135)
CMRM
0000
SV1
Communication
response monitor
(P. 8-135)
