Publication 1734-UM001D-EN-P - April 2008

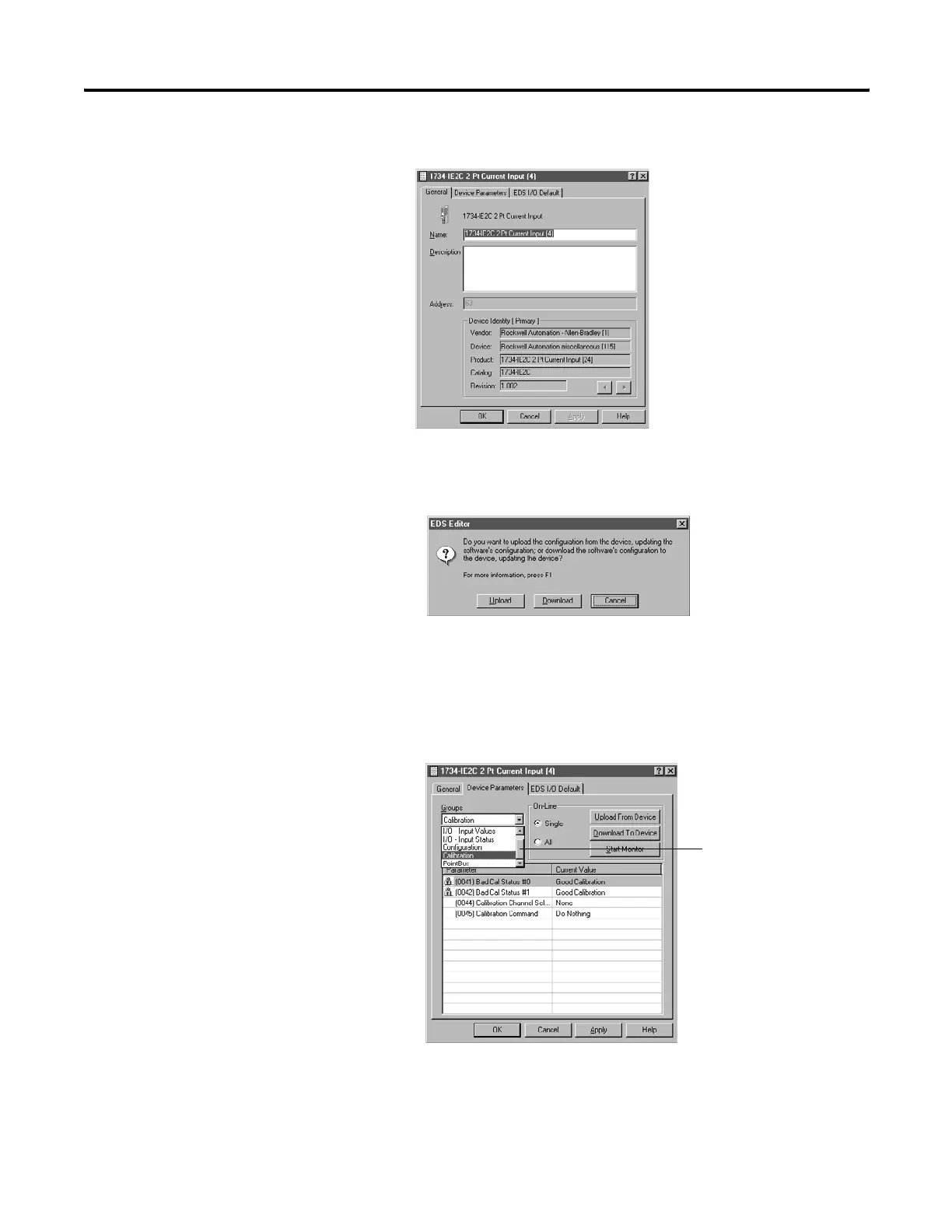

124 Calibrate Your Analog Modules
1. Double-click the icon to bring up the General parameter dialog.
The EDS editor asks you if you want to upload the configuration from
the device.
2. From the EDS editor, click Upload
3. From the General parameter dialog, click Device Parameters.
You see the Device Parameters dialog.
4. Select Calibration at the Groups pull-down.
5. Click Calibration Command, and select Begin Calibration.
This is the group
pull-down.
