Rockwell Automation POINTBlock Series User Manual

Publication 1734-UM001D-EN-P - April 2008

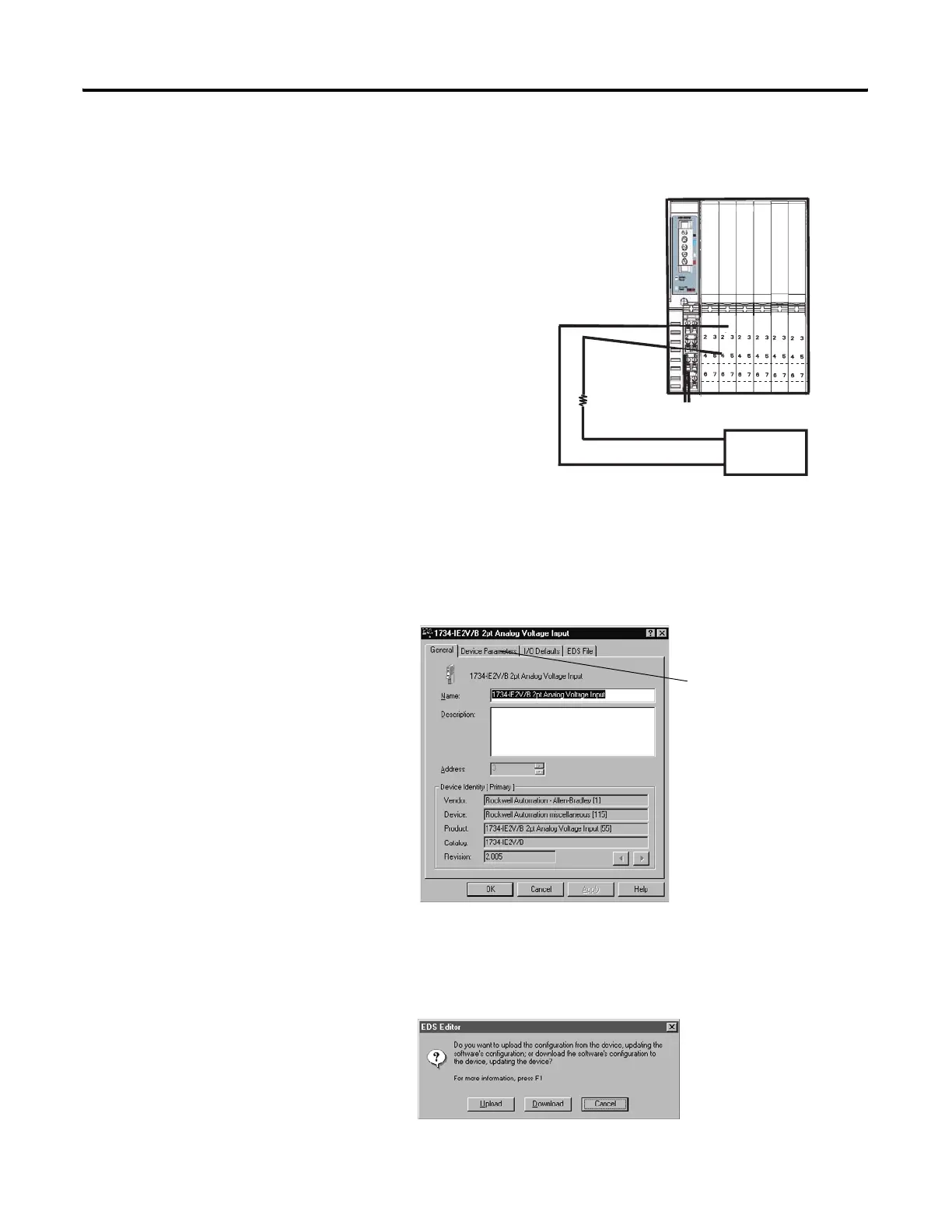

Calibrate Your Analog Modules 133
You can calibrate both voltage input channels at the same time using one
voltage source.
1. Double-click the icon to bring up the General parameter dialog.
2. Click Device Parameters to view the parameters.
You see the EDS Editor dialog that asks you if you want to upload the
configuration from the device.
3. From the EDS Editor dialog, click Upload.
01 0101 01
01
01
4032
Power Supply Voltage
DeviceNet Input
250 Ω
Channel 0
Connect to 0 and 4
Channel 1
Connect to 1 and 5
Voltage Source
