138 Calibrate Your Analog Modules

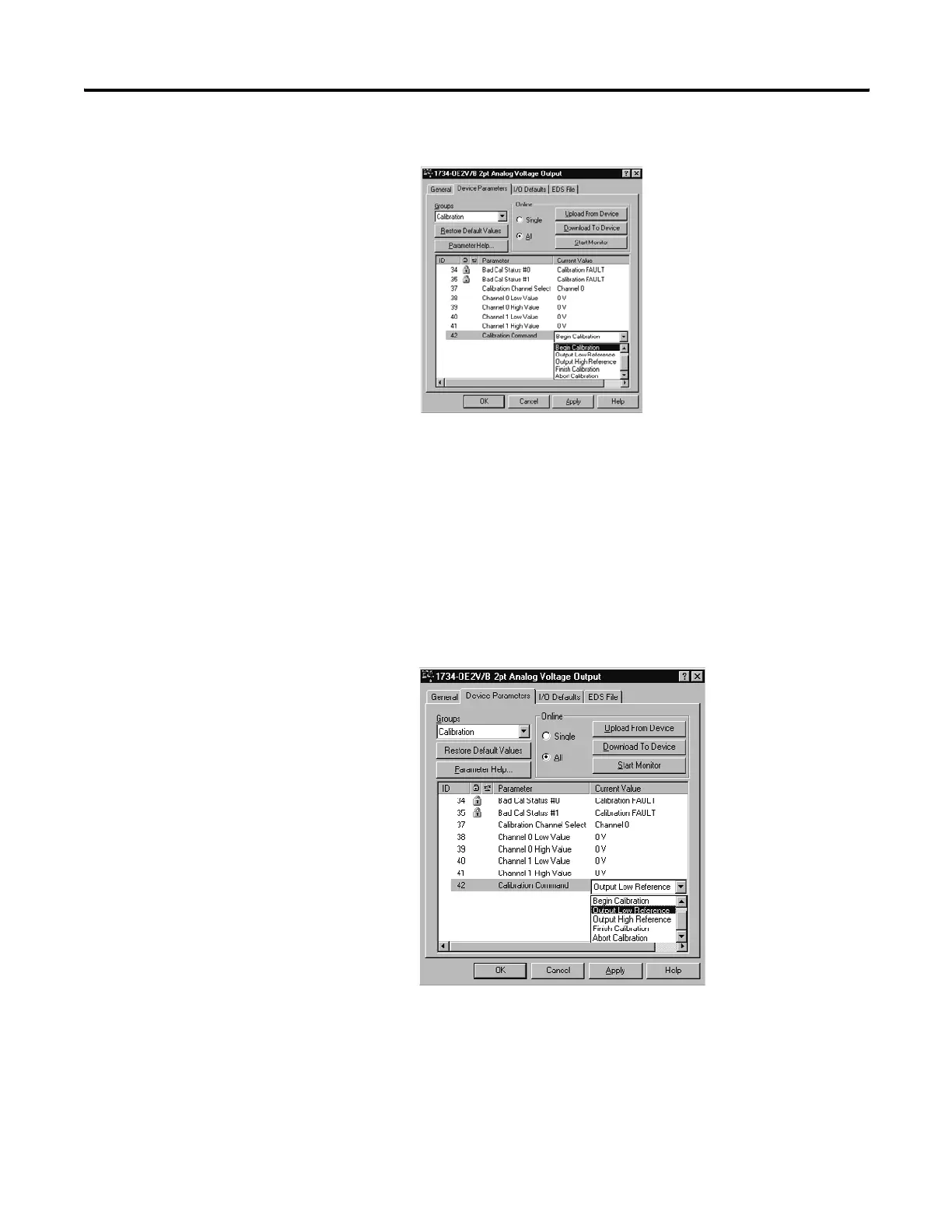

5. Click Calibration Command and Apply.
6. Click the Download to Device button.
The channel status indicator turns off.
7. Select a channel.
8. Click the Download to Device button.
9. Select Output Low Reference and download to the module.
The selected channel status indicator blinks green.
