Rockwell Automation POINTBlock Series User Manual

Publication 1734-UM001D-EN-P - April 2008
Calibrate Your Analog Modules 139
10. Enter the value shown on your DVM for the Channel Low Value
(-10.1234 in the example).
11. Select the Output High Value and download to the module.
12. Enter the value shown on the DVM onto your dialogs (10.0057 in this
example).
13. Repeat these steps for the other channel.

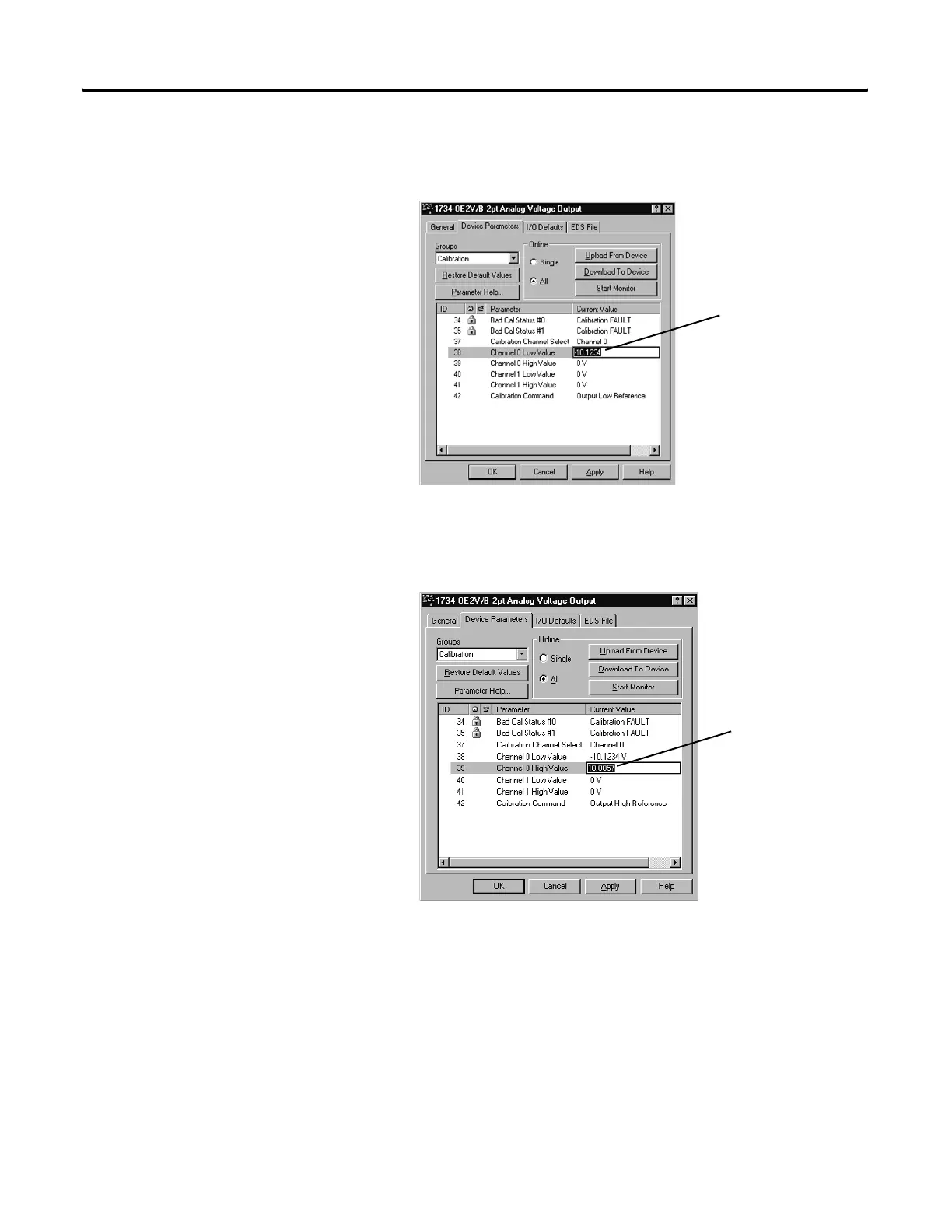

Type in the
resulting value
from your DVM.
Type in the
resulting value
from your
DVM.
