Rockwell Automation POINTBlock Series User Manual

Publication 1734-UM001D-EN-P - April 2008
140 Calibrate Your Analog Modules

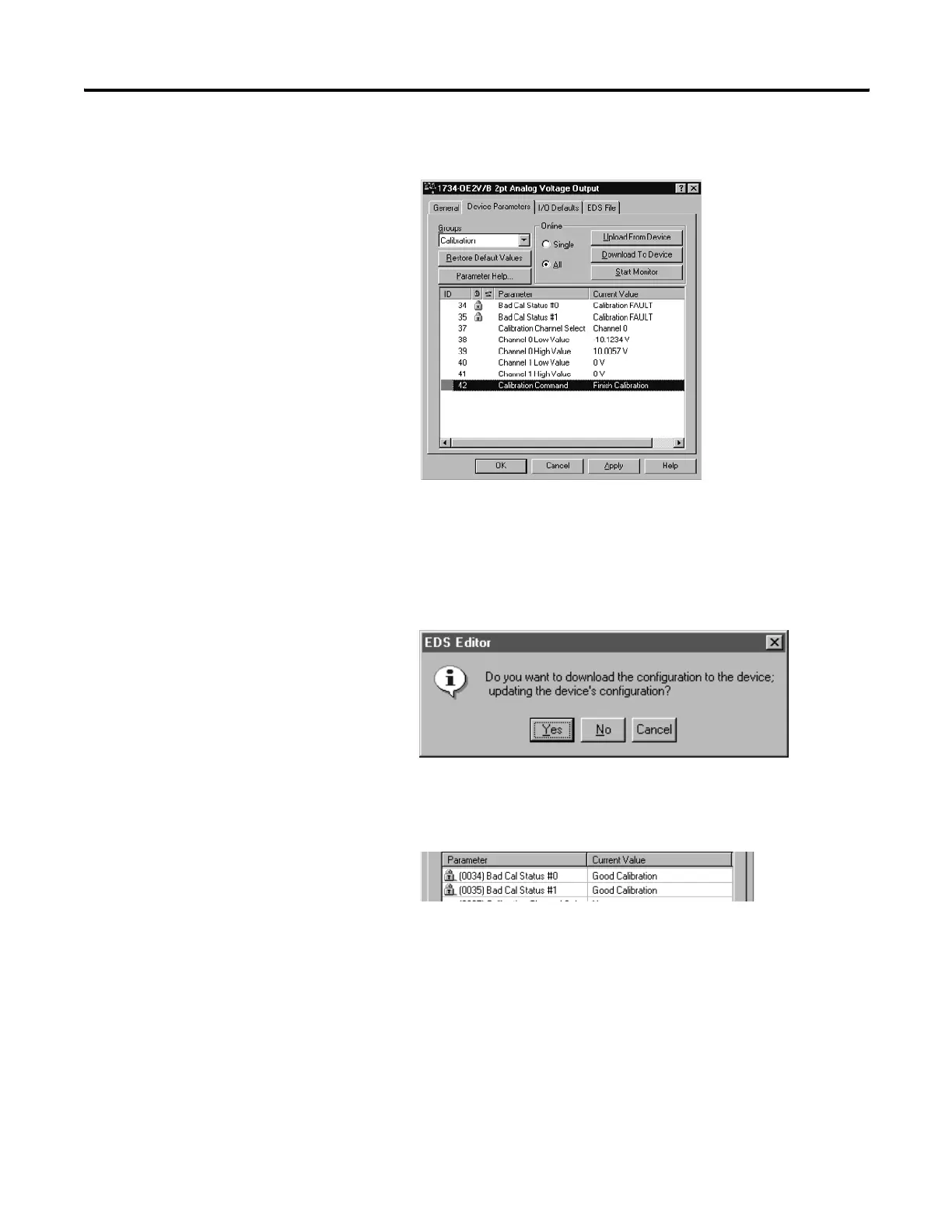

14. From the Device Parameters dialog, select All, and click Finish
Calibration to complete the calibration process.
You see the EDS Editor dialog that prompts you to download to the
module.
15. From the EDS Editor dialog, click Yes.
If calibration was accomplished, the Cal Status reflects good.
Your module is now calibrated.
