Publication 1734-UM001D-EN-P - April 2008
Configure POINT I/O Modules in RSLogix 5000 Software 205
Working with Alarm Configuration Dialog
This dialog does not appear for Listen Only connections. To complete the
entries on this dialog, proceed as follows.
1. From the top of the General dialog, click Alarm Configuration.

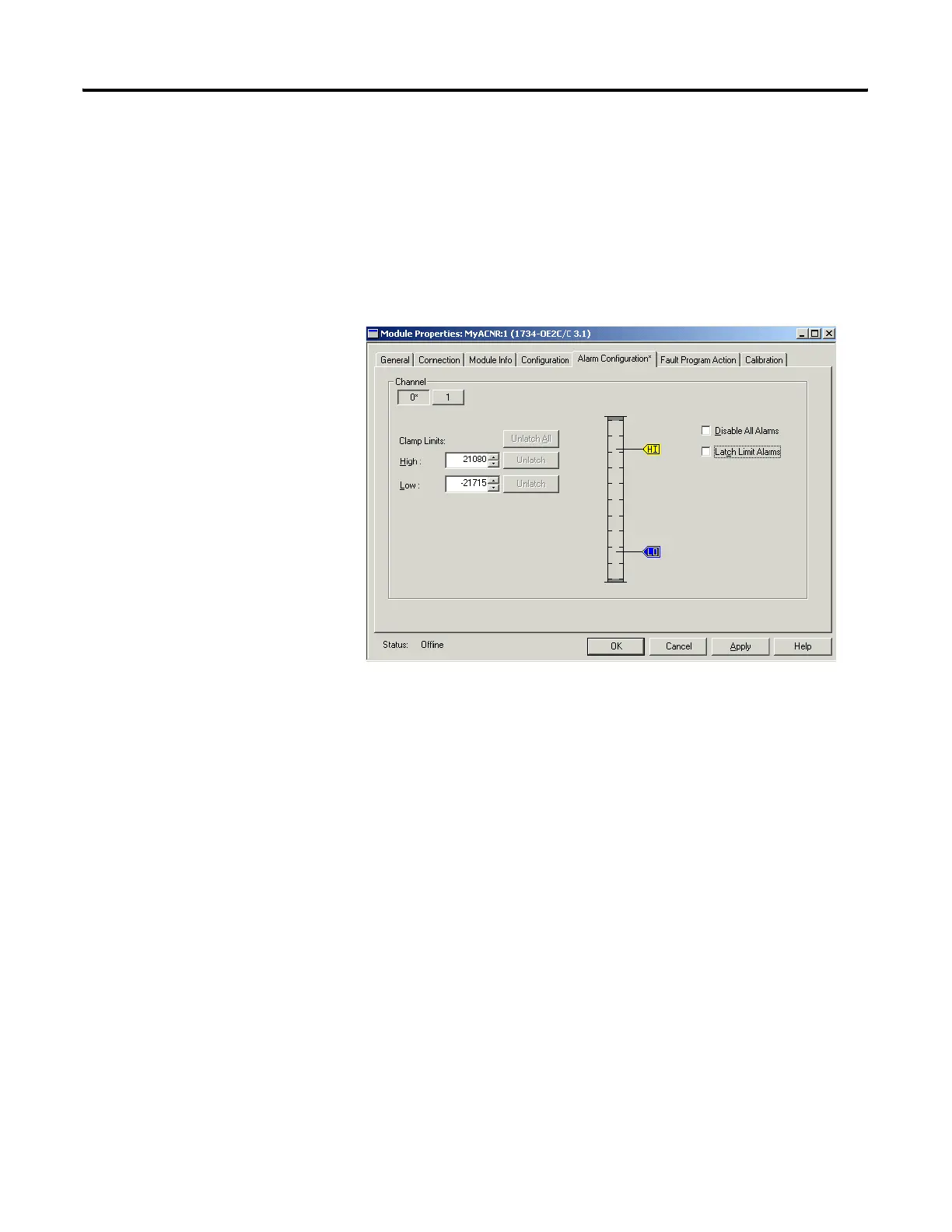

You see an Alarm Configuration dialog for a current or voltage module,
based on the type of module you added.
2. Click a channel push button, such as 0 or 1, to show it pressed, selecting
the corresponding channel for the values you enter.
3. Enter values for Low and High Clamp limits by typing the numeric
value or dragging the pointer on the corresponding slider control,
noting the following:
• For High Clamp limit, default is 32767.
• For High Clamp limit, range is -32768 to 32767.
• For Low Clamp limit, default is -32768
• For Low Clamp limit, range is -32768 to 32767.
4. Choose unlatch options one of these ways.
• Click Unlatch to unlatch an individual alarm.
• Click Unlatch All to unlatch all the alarms at once.
