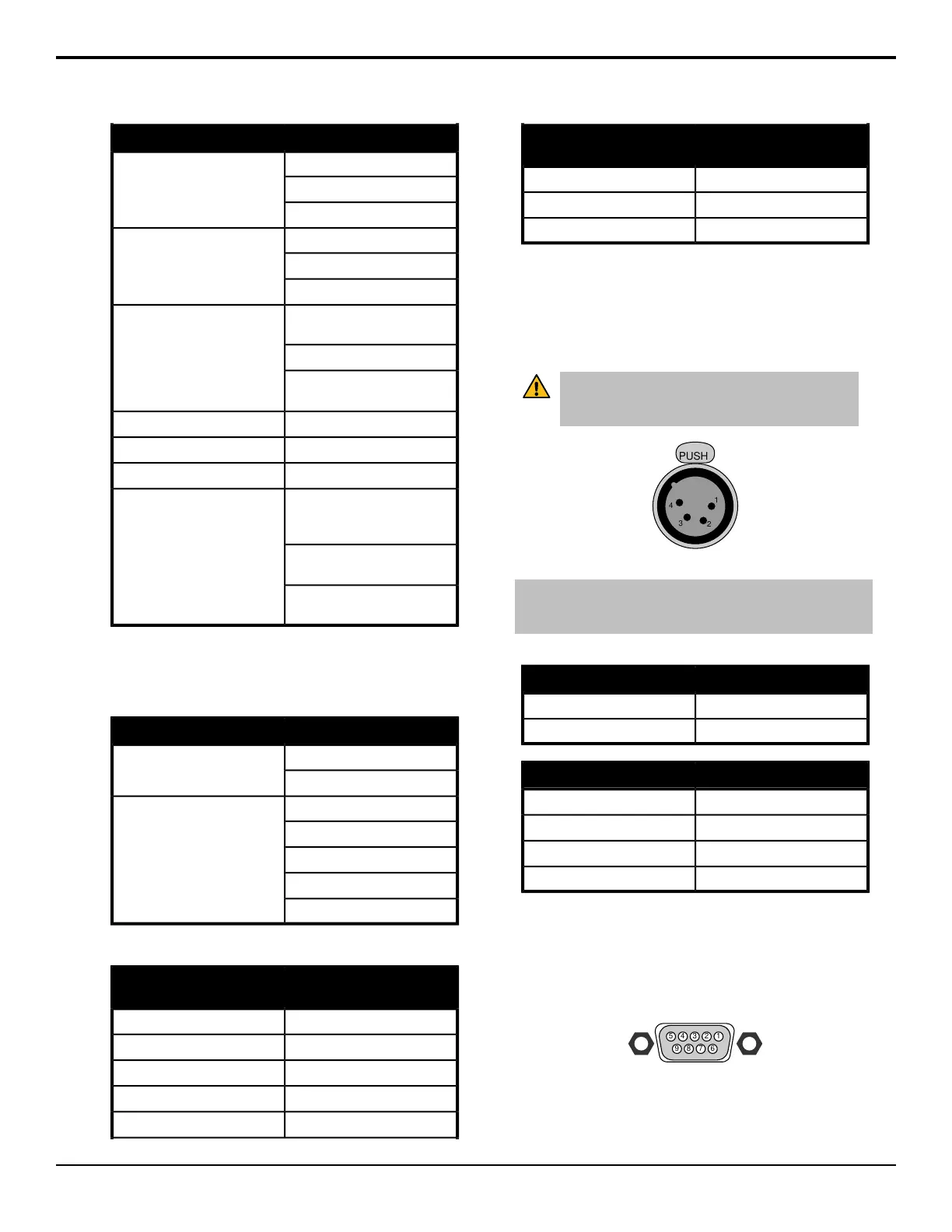

ValueOutput Specification
UHD Video Format - <8.0UI
Timing Jitter
HD Video Format - <1UI
SD Video Format - <0.2UI
UHD Video Format - <0.3UI
Alignment Jitter
HD Video Format - <0.2UI
SD Video Format - <0.2UI
UHD Video Format - <10%
amplitude
Rise and Fall Time
HD Video Format - <240ps
SD Video Format - 450ps to
700ps
800mV ±10%
Signal Level
0 VoltsDC Offset
<8%Overshoot
UHD Video Format - SMPTE
ST 2082-1:2015 (Amendment
1:2016)
Video Outputs (SDi)
HD Video Format - 10-bit
SMPTE 292M/424M
SD Video Format - 10-bit
SMPTE 259M-C
Power Rating
Table 19: Input Voltage
Power RatingComponent
90-250V~Panel
47-63Hz
100-120V~
Frame
220-240V~
47-63Hz
9A 650W
(Canada 120V~ only)
Table 20: Power Consumption
Power Consumption (Full
Load)
Component
1022W4RU Frame
1412W8RU Frame
159WA1S Panel
247WA2M Panel
289WA2X Panel
Power Consumption (Full
Load)
Component
340WA3M Panel
379WA3 Panel
526WA4 Panel
Aux Power Ports
The aux power ports on the back of the control panel
provide power for the touchscreen display and an
auxiliary control panel.
CAUTION: Only use the cables provided to connect
your Acuity Auxiliary Control Panel or Touchscreen
display to the Auxiliary Power module.
1
2
3
4
PUSH
Figure 27: Aux Power Port (female)
Tip: The status LEDs just below the port indicate whether each
port is ok (green), or if there is a fault (red). Specific faults are
reported on the Status menu.
Table 21: Aux Power Rating
ValueSpecification
12VDCOutput Voltage
4AMaximum Current
SignalPin
GND1
n/c2
n/c3
+12VDC4
Serial Ports
The serial ports on the back of the frame and control
panel support the RS-232 (TIA/EIA-232) and RS-422
(TIA/EIA-422) transmission standards.
123
89
45
67
Figure 28: Serial Port (female)
Acuity Setup Manual (v9.2) — Specifications • 111
