• Id01 — the ancillary data from the rst source
in the list is embedded in the video stream.
Note: The ancillary data of the first source in the list is
embedded in Head A.
To Name a MultiViewer Layout
1. Press HOME > Setup > MultiViewer.
2. In the Layouts area, select the layout that you want
to name.
3. Press Layout Name.
4. Enter the new name in the New Name eld.
The name can contain letters, numbers, spaces,
dashes, underscores, and, periods, but should not
contain symbols.
5. Press Accept New Name.
Copying and Pasting MultiViewer Layouts
A MultiViewer layout can be copied to another layout.
To Copy and Paste a MultiViewer Layout
1. Press HOME > Setup > MultiViewer.
2. In the Layouts area, select the layout that you want
to copy.
3. Press Copy Layout.
4. In the Layouts area, select the layout that you want
to paste the layout to.
5. Press Paste Layout.
Fade to Black
Fade to Black allows you to have one, or all, of the ME
outputs fade to black with a single button press. Pressing
the button again returns the ME output from black to the
previous state.
In an MultiPanel conguration, the fade to black only
affects the ME outputs that are assigned to the control
panel that the fade to black is performed on, and that fade
to black is turned on for. Each control panel has a unique
fade to black rate, but which ME outputs that fade to
black is turned on for is common across all control
panels.
To Set Fade to Black
1. Press HOME > Setup > Installation > Output >
Fade To Black.
2. Press ME X to turn fade to black on (On) or off
(Off) for each ME.
3. Press HOME > Confirm.
Mix/DSK
The Mix/DSK option provides an additional half ME
that supports up to 4 Auto Select or Self keys and can
perform basic dissolves and cuts. Only a single Mix/DSK
can be added to a switcher and the video outputs of the
Mix/DSK cannot be re-entered back into the switcher.
Note: The Half ME option is not supported on the Evertz
®
IP
Output board or when the switcher is operating in a UHDTV1
video format.
The number of keys depends on how the Mix/DSK option
is set up. If Mix/DSK is set to Mix2K there are 2 keys
and if it is set to Mix4K there are 4 keys. Both of these
options lock specic output BNCs to the video signals
being output by the Mix/DSK option.
Note: The Mix/DSK option is applied to the highest number ME
in the switcher.

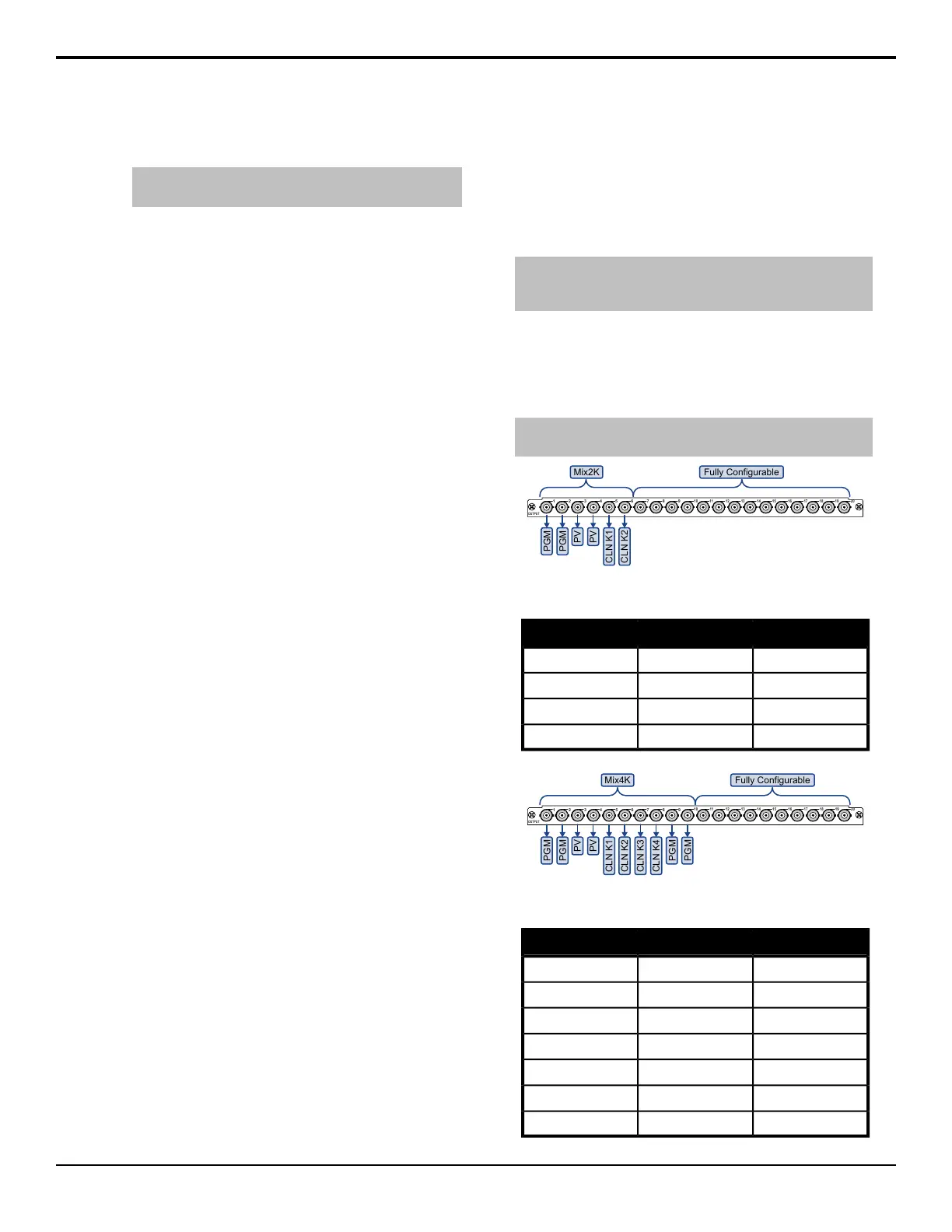

OUTPUT
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20
Fully Configurable
Mix2K
PGM
CLN K2 CLN K1
PV PV
PGM
Figure 10: Mix2K
Table 6: Mix2K Output BNC Assignment
8RU Frame4RU FrameOutput
K01, K02C01, C02Program
K03, K04C03, C04Preview
K05C05Clean (before key 1)
K06C06Clean (before key 2)
OUTPUT
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20
Fully Configurable
Mix4K
PGM
CLN K2 CLN K1 CLN K3 CLN K4
PV PV
PGM
PGM
PGM
Figure 11: Mix4K
Table 7: Mix4K Output BNC Assignment
8RU Frame4RU FrameOutput
K01, K02C01, C02Program
K03, K04C03, C04Preview
K05C05Clean (before key 1)
K06C06Clean (before key 2)
K07C07Clean (before key 3)
K08C08Clean (before key 4)
K09, K10C09, C10Program
38 • Video Output Setup — Acuity Setup Manual (v9.2)
