Installing the Access Point
ZoneFlex 7441 Physical Installation
ZoneFlex Indoor Access Point 9.8.1 User Guide, 800-70601-001 Rev C 105
The ZoneFlex 7441 DAS AP can be installed in a variety of configurations, as
designed by the DAS vendor. For one example scenario in a multi-floor building, see
Figure 49. DAS systems typically require RF design using sophisticated RF modeling
tools in order to design effective Wi-Fi coverage on the DAS system. Detailed RF
specs may be secured on the Ruckus Support Site.

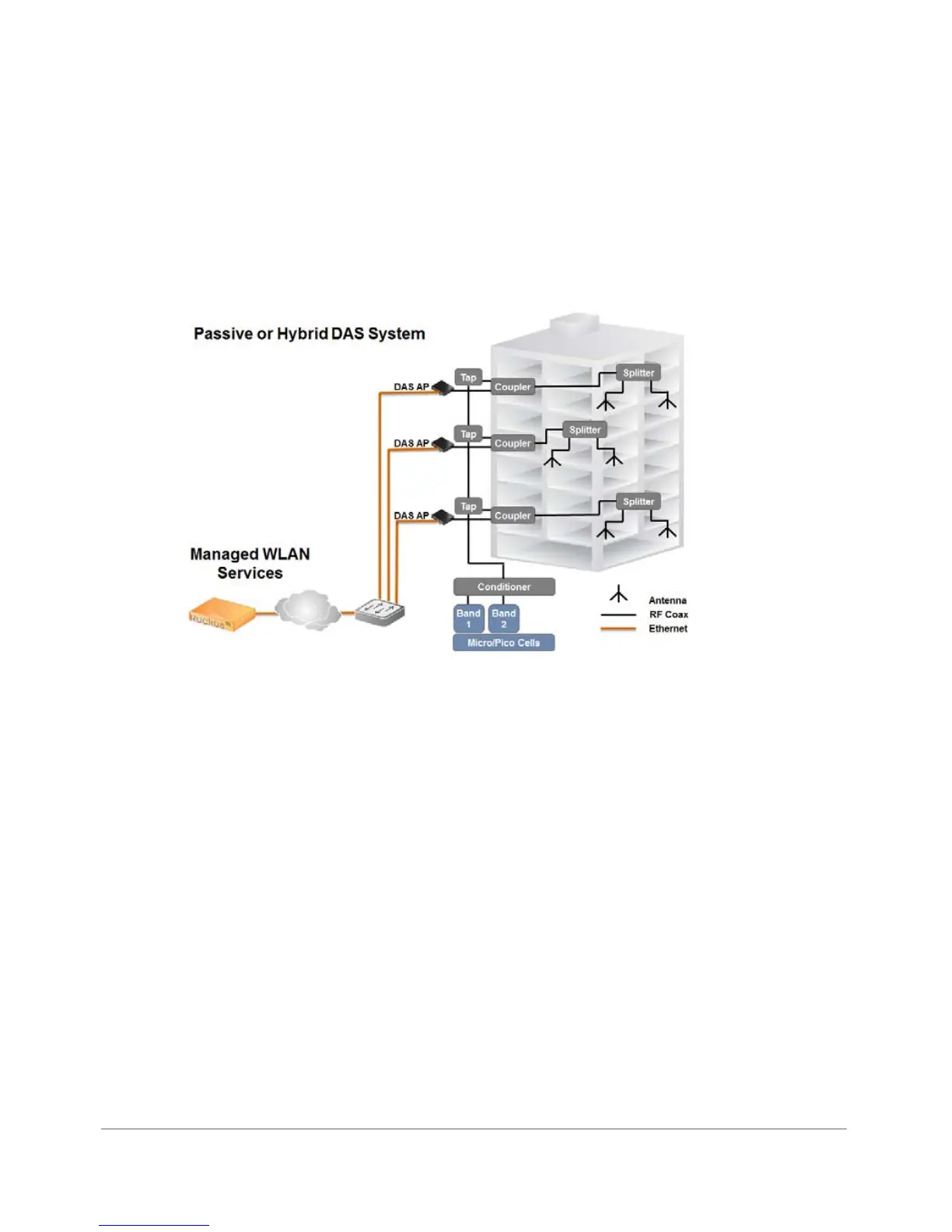

Figure 49. ZoneFlex 7441 DAS AP installation example
