Installing the Access Point
ZoneFlex 7441 Physical Installation
ZoneFlex Indoor Access Point 9.8.1 User Guide, 800-70601-001 Rev C 106
Antenna Gain and Cable Loss

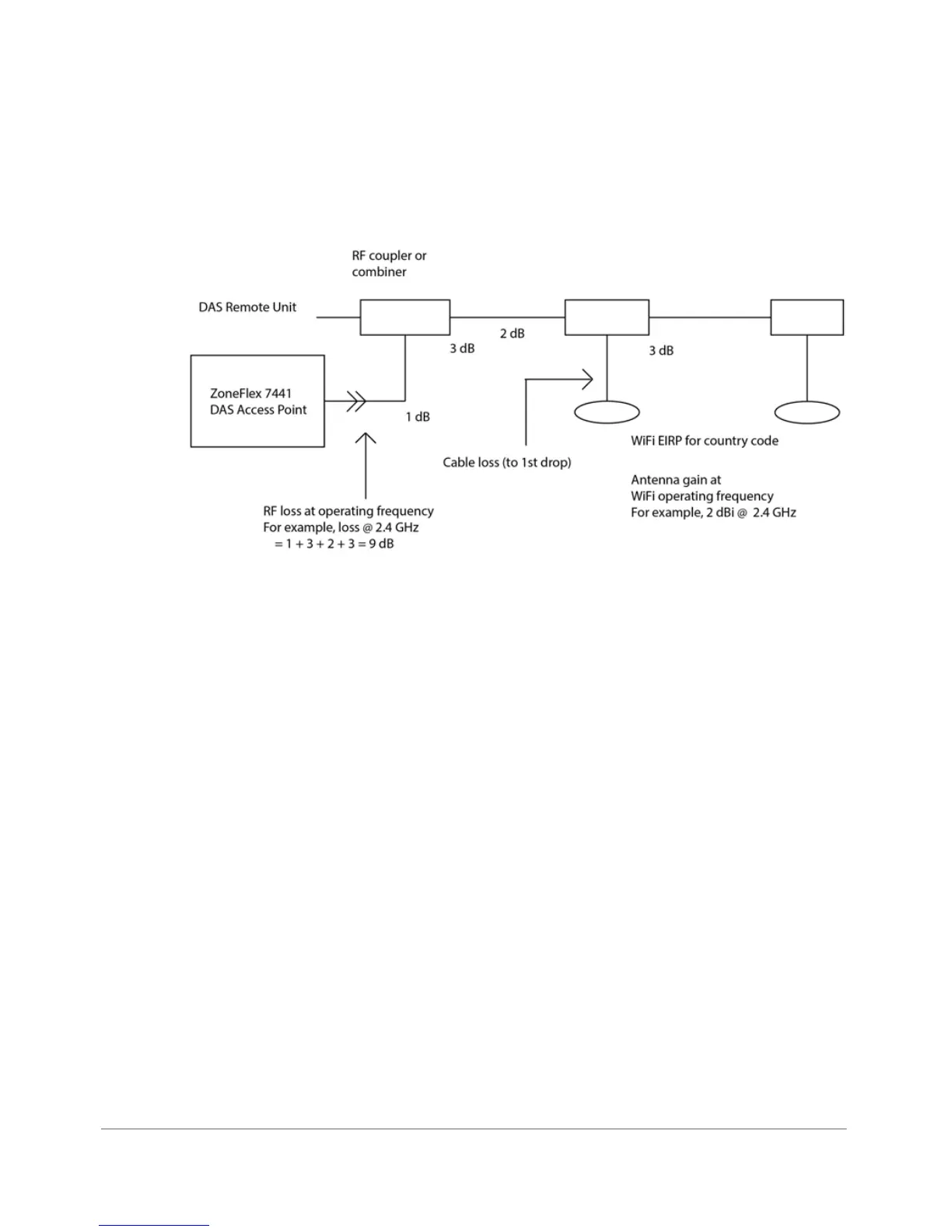

Figure 50 provides an example of how to calculate antenna gain and cable loss.
Figure 50. ZoneFlex 7441 Cable Loss and Antenna Gain
Mounting Instructions
The ZoneFlex 7441 mounting options include desktop, wall mounting (flat), wall
mounting (horizontal), and DIN rail mounting. Continue with one of the following:
• Wall Mounting (Flat)
• Wall Mounting (Horizontal)
• DIN Rail Mounting
• Grounding the Access Point
• DIN Rail Removal
Wall Mounting (Flat)
1 Attach the wall mounting brackets to the ZoneFlex 7441 as shown in Figure 51.
