Installing the Access Point
ZoneFlex 7441 Physical Installation
ZoneFlex Indoor Access Point 9.8.1 User Guide, 800-70601-001 Rev C 107

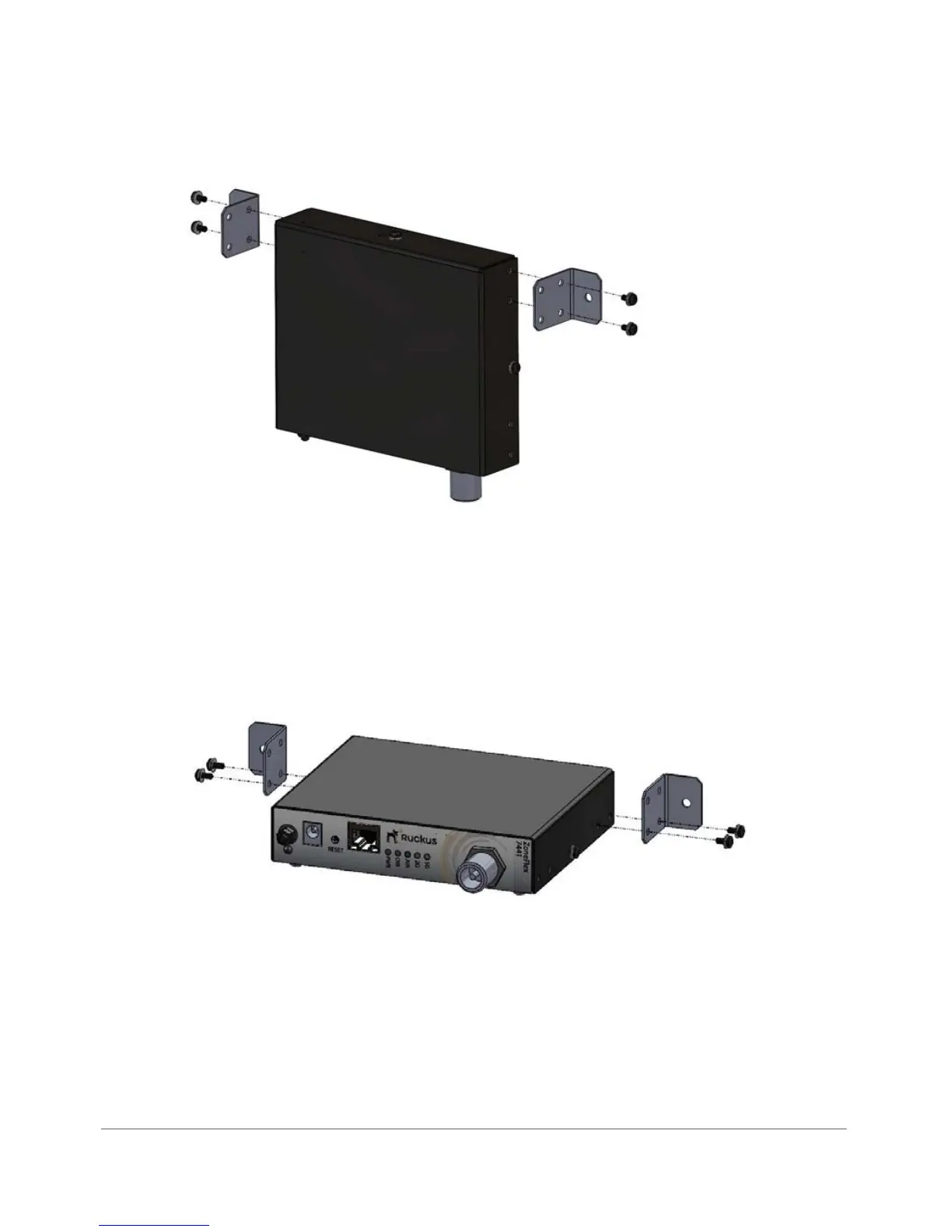

Figure 51. Flat wall mount
2 Place the AP on the wall and mark the locations for screw holes.
3 Drill screw holes, place the AP onto the wall and insert screws.
Wall Mounting (Horizontal)
The ZoneFlex 7441 can be mounted to a wall horizontally as shown in Figure 52.
Figure 52. Horizontal wall mount
1 Attach the brackets to the AP as shown in Figure 52.
2 Place the AP on the wall and mark the locations for screw holes.
3 Drill screw holes, place the AP onto the wall and insert screws.
