R300 Access Point
NOTE The R300 requires a minimum of ZoneFlex firmware version 9.7 and later,
SmartCell Gateway (SCG) 2.5 and later, or virtual SmartCell Gateway (vSCG) 2.5
and later to operate.
The R300 features five LEDs on its front panel and buttons and connectors on its
rear panel.
NOTE The R300 is an entry level 802.11n dual band Access Point that does not
support the Smart Mesh or Spectrum Analysis features, and supports a maximum
of 250 unencrypted clients.
Front Panel
Figure 26 shows the top view of the R300. For a description of each front panel
part, refer to Ta ble 3 1 .

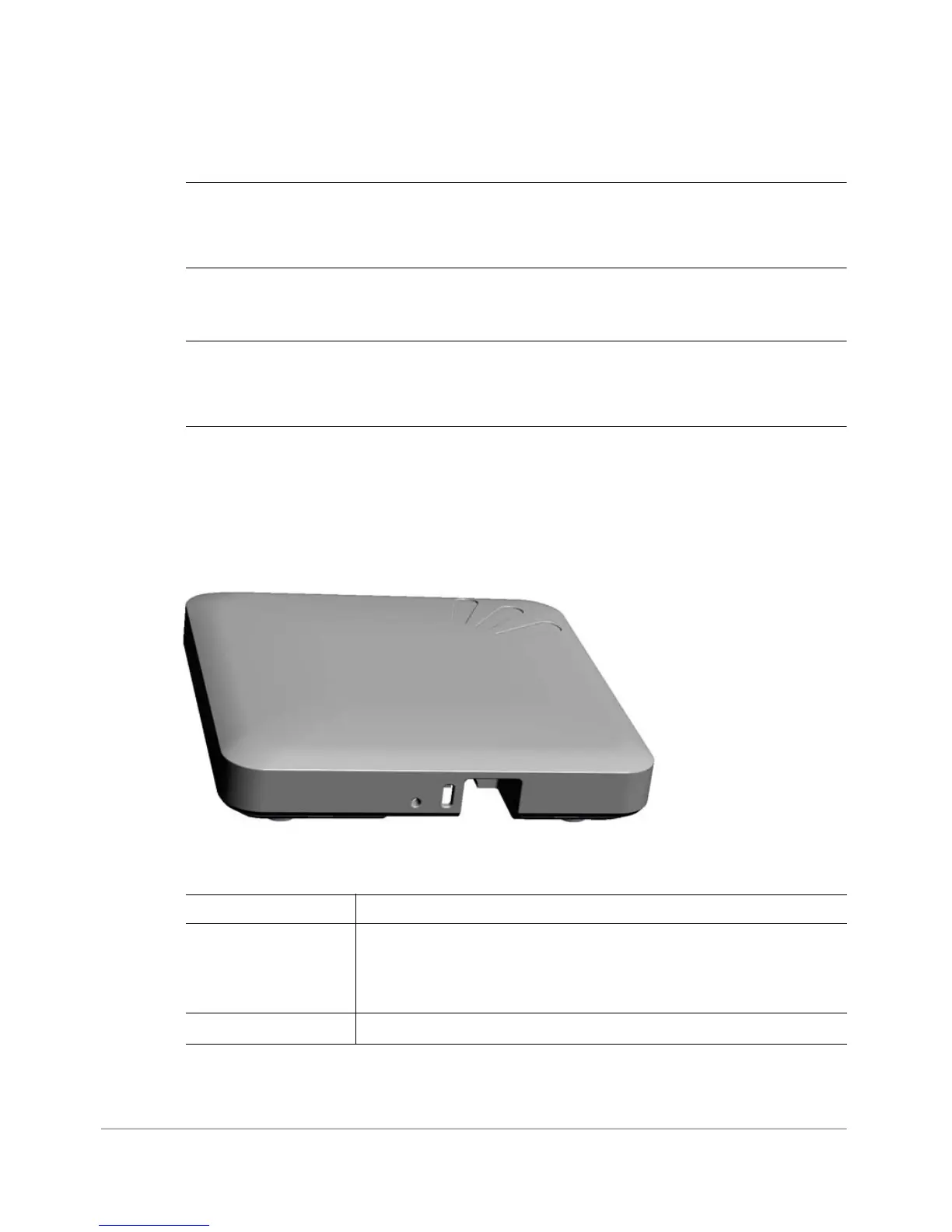

Figure 26. R300 top view
Table 31. R300 front panel elements
LED Description
PWR LED • Off: Off.
• Red: Boot up in process.
• Green: On.
OPT LED Not used in this model.
