Rear Panel
The rear panel of the R500 features one 10/100/1000 PoE Ethernet port, 10/100/
1000 Ethernet port, power socket and reset button. See Table 3 4 for a description
of each rear panel part.

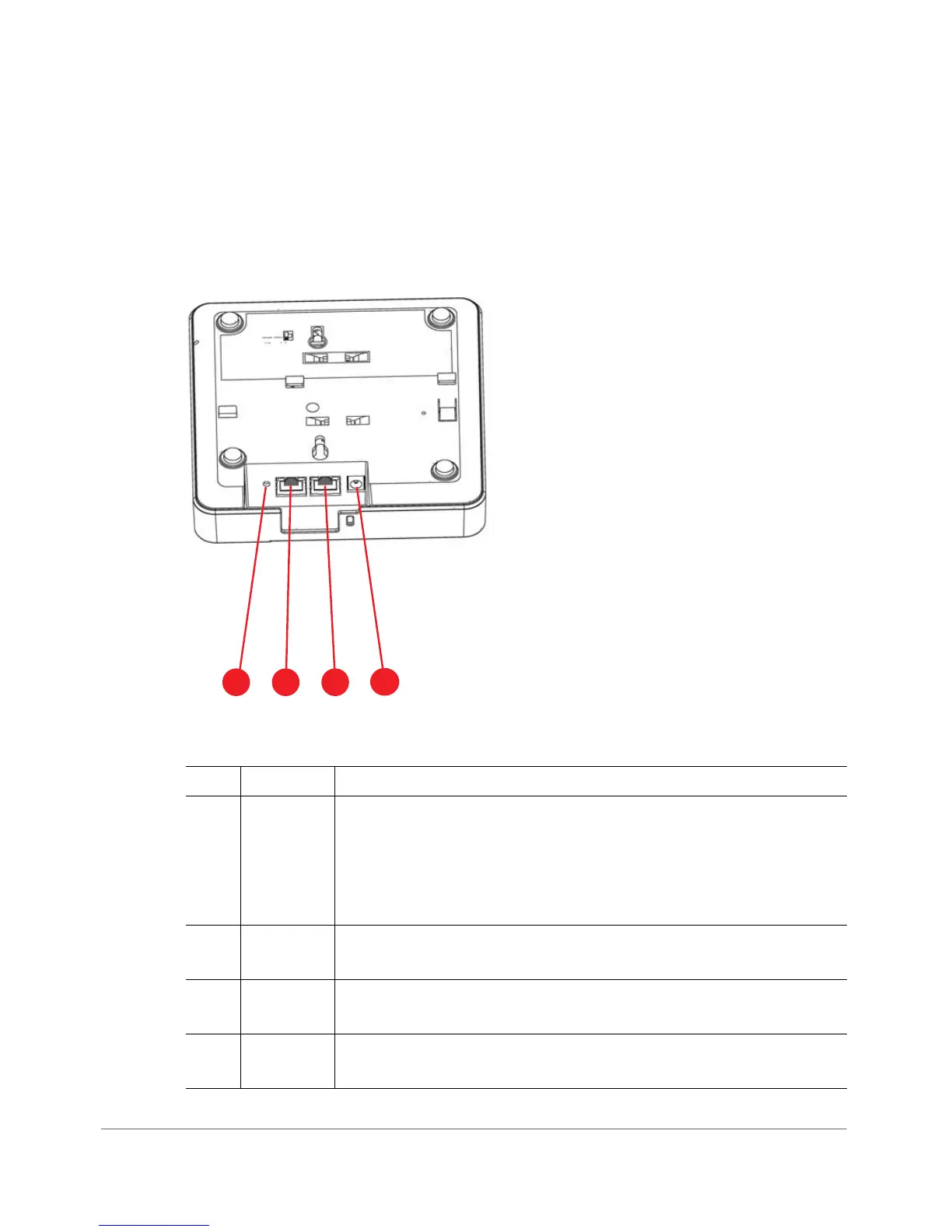

Figure 29. R500 rear panel
v
Table 34. Rear panel element descriptions
No. Label Description
1
RESET
Button
Pressing, and then quickly releasing this button reboots the AP.
Pressing and holding it for six seconds resets the AP to factory
default settings.
CAUTION! Resetting the AP to factory default settings erases all
settings that you configured previously.
2
PoE
Port One RJ-45 port for a 10/100/1000 PoE (Power over Ethernet,
802.3af/at) connection. (The R500 is a Class 3 device.)
3
Ethernet
Port
One RJ-45 port for a 10/100/1000 connection.
412VDC
Connect the power adapter (12 VDC/1.25A) to this socket. Power
can also be supplied via the 10/100/1000 PoE port.
