ZoneFlex 7363 Access Point
NOTE ZoneFlex 7363 requires a minimum of ZoneFlex firmware version 9.0 and
later to operate.
ZoneFlex 7363 features five LEDs on its front panel, and buttons and connectors
on its rear panel.
Front Panel
Figure 18 shows the front panel of the ZoneFlex 7363. For a description of each
front panel part, refer to Ta b le 2 1 .

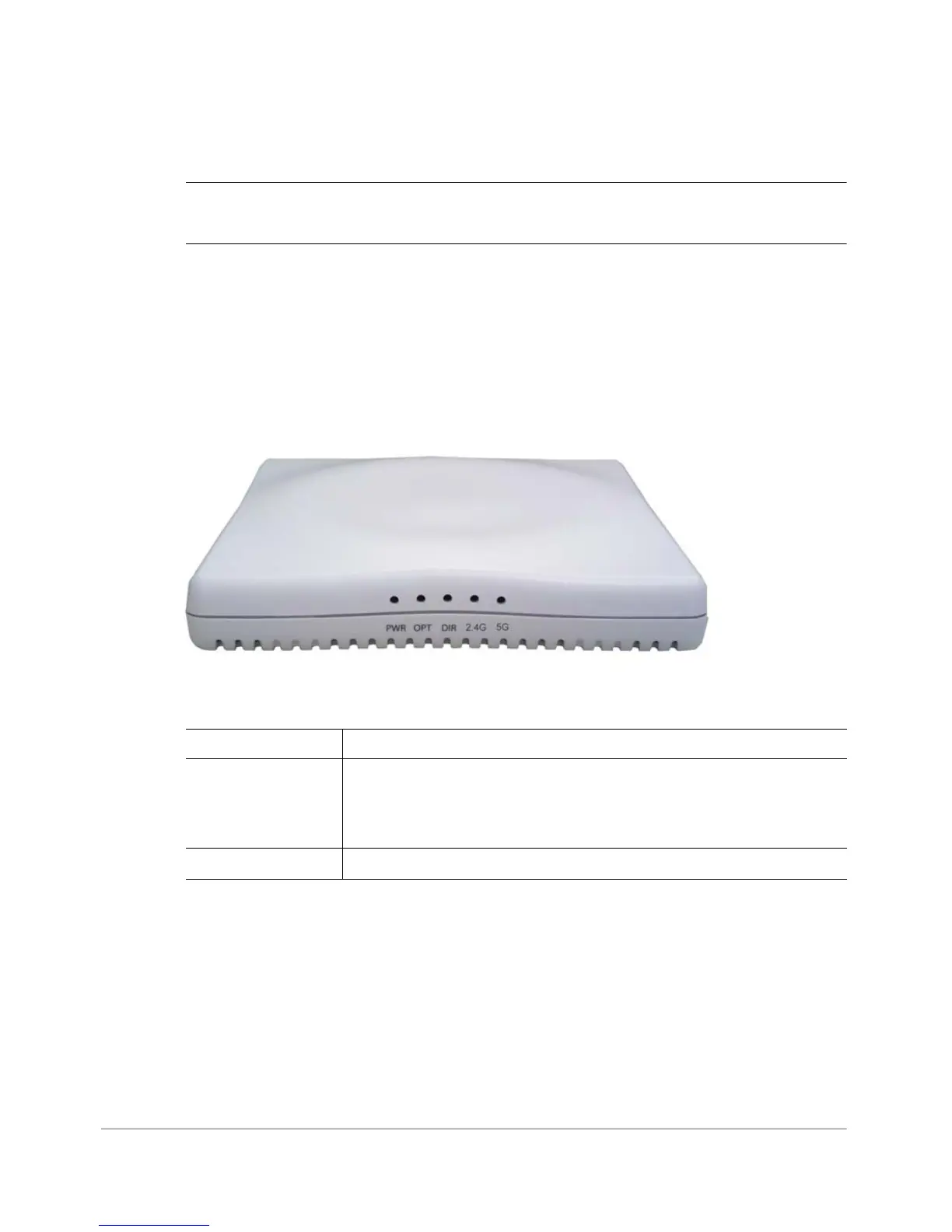

Figure 18. ZoneFlex 7363 top view
Table 21. ZoneFlex 7363 front panel elements
LED Description
PWR LED • Off: Off.
• Amber: Boot up in process.
• Green: On.
OPT LED Not used in this model.
