ZoneFlex 7962 Access Point
NOTE The ZoneFlex 7962 requires a minimum of ZoneFlex firmware version 8.2
and later, SmartCell Gateway (SCG) 1.0 and later, or virtual SmartCell Gateway
(vSCG) 2.5 and later to operate.
The side panel of ZoneFlex 7962 features four LED indicators that can be used to
assess both device and network status. The rear view displays the connector panel,
which includes the LAN ports and power adapter connector. Refer to the following
illustrations and tables to learn more.
Side Panel Features
The ZoneFlex 7962 chassis includes a Kensington lock (on the side of the unit
opposite the OPT and DIR LEDs) and a lockable “sliding door” (shown in Figure 22)
that hides and protects the rear connector I/O panel and status LEDs. As your AP
may be placed in a public location, the lock and door mechanisms can help prevent
tampering or theft. Figure 22 illustrates the side panel features of the ZoneFlex 7962.
For a description of each side panel part, refer to Ta ble 2 5.

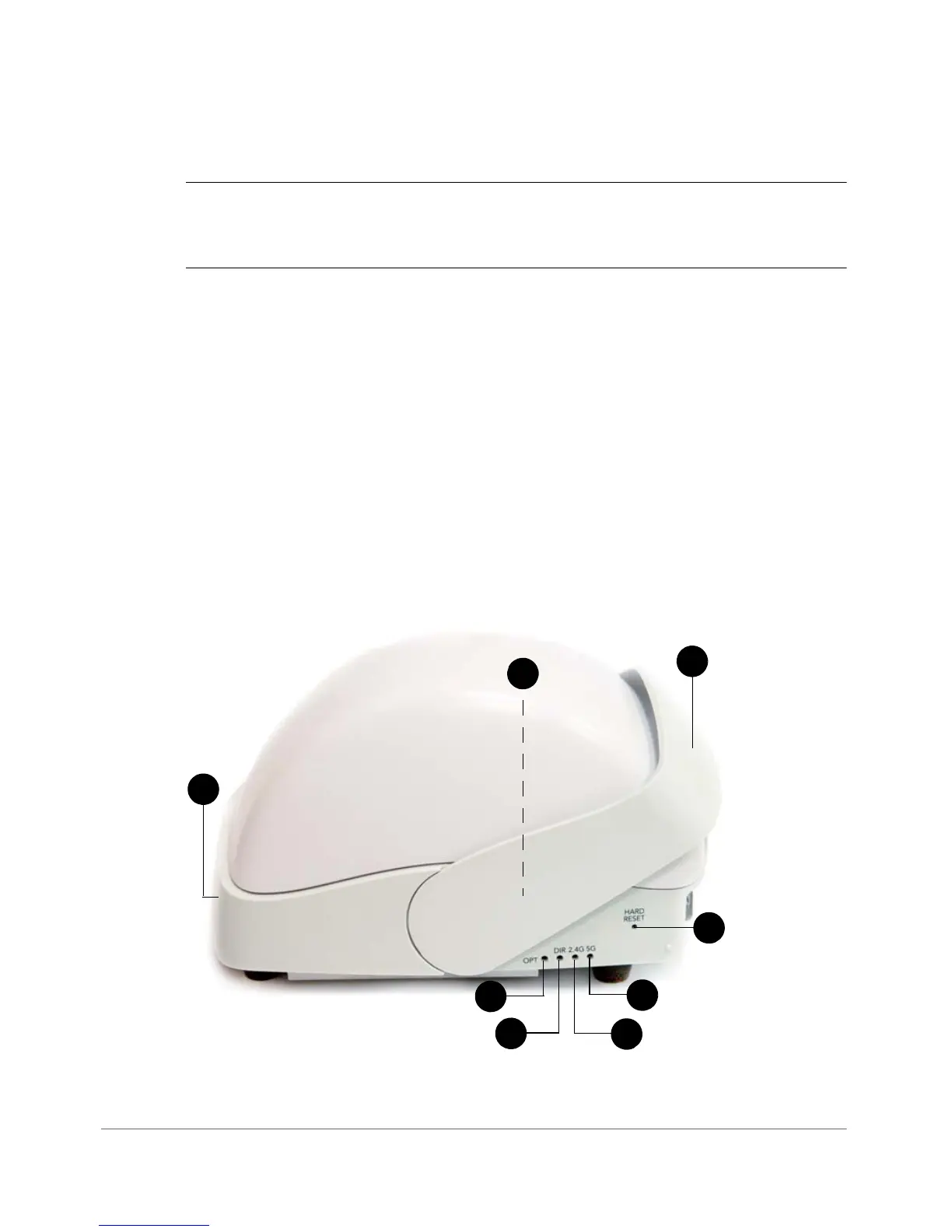

Figure 22. ZoneFlex 7962 side panel
1
2
3
4
5
6
7
8
