Introducing the ZoneFlex Access Point
Getting to Know the Access Point Features
ZoneFlex Indoor Access Point 9.8.1 User Guide, 800-70601-001 Rev C 30
ZoneFlex 7341 Access Point
NOTE The ZoneFlex 7341 requires a minimum of ZoneFlex firmware version 9.0
and later, SmartCell Gateway (SCG) 1.0 and later, or virtual SmartCell Gateway
(vSCG) 2.5 and later to operate.
ZoneFlex 7341 features five LEDs on its front panel and buttons and connectors on
its rear panel.
Front Panel
Figure 11 shows the front panel of the ZoneFlex 7341. For a description of each
front panel part, refer to Ta b le 1 3 .

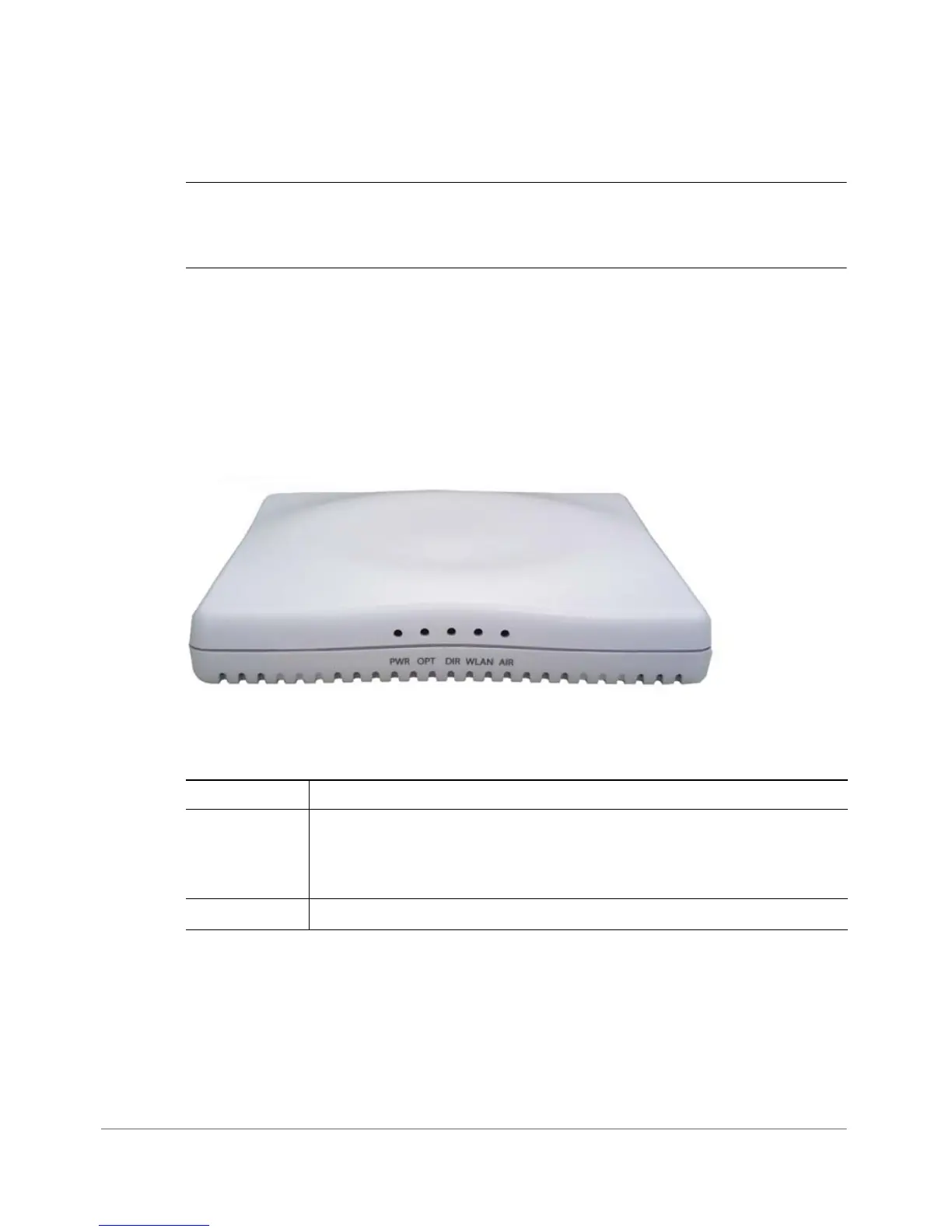

Figure 11. ZoneFlex 7341 front panel
Table 13. ZoneFlex 7341 front panel elements
LED Description
PWR LED • Off: Off.
• Red: Boot up in process.
• Green: On.
OPT LED Not used in this model.
