Introducing the ZoneFlex Access Point
Getting to Know the Access Point Features
ZoneFlex Indoor Access Point 9.8.1 User Guide, 800-70601-001 Rev C 33
ZoneFlex 7343 Access Point
NOTE The ZoneFlex 7343 requires a minimum of ZoneFlex firmware version 9.0
and later, SmartCell Gateway (SCG) 1.0 and later, or virtual SmartCell Gateway
(vSCG) 2.5 and later to operate.
ZoneFlex 7343 features five LEDs on its front panel, and buttons and connectors
on its rear panel.
Front Panel
Figure 13 shows the front panel of the ZoneFlex 7343. For a description of each
front panel part, refer to Ta b le 1 5 .

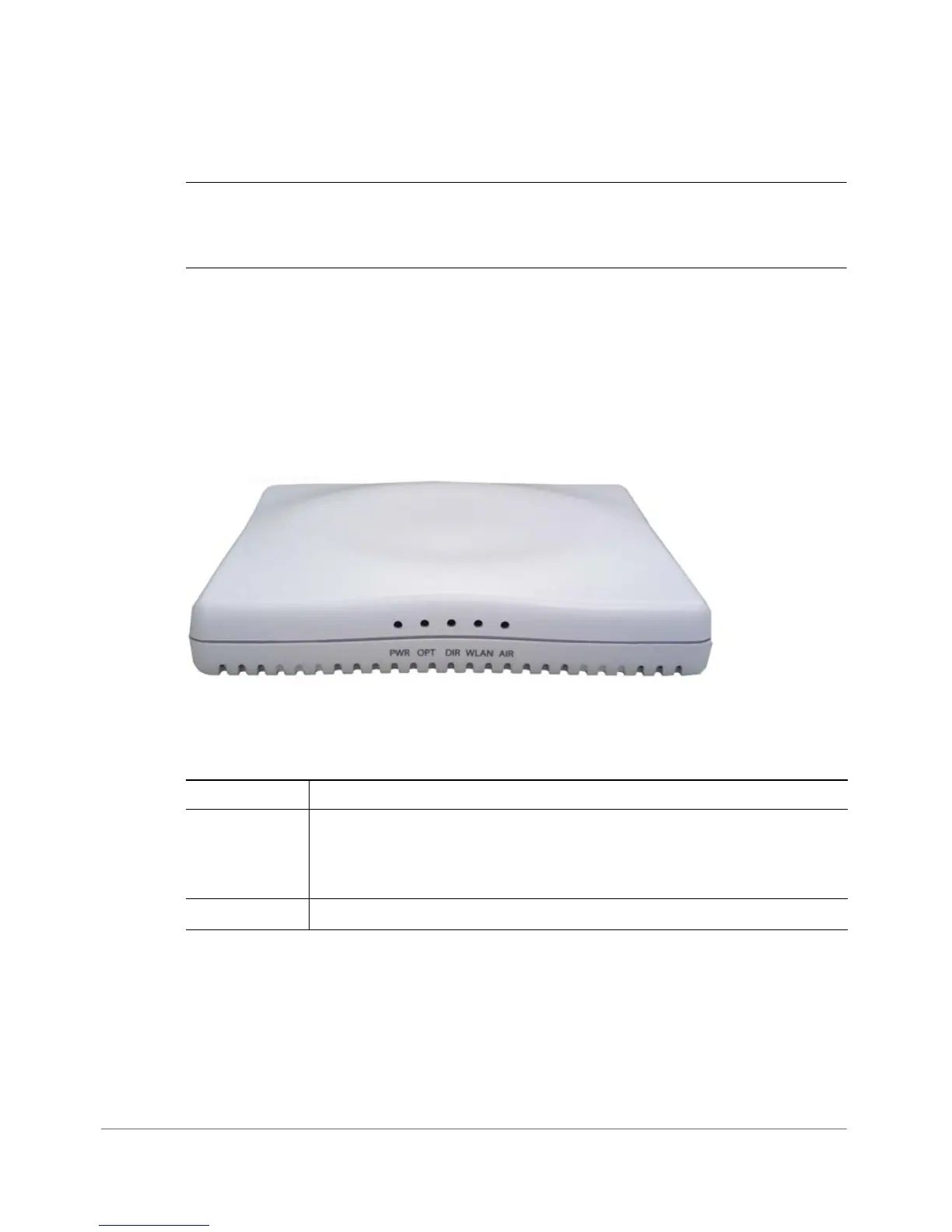

Figure 13. ZoneFlex 7343 front panel
Table 15. ZoneFlex 7343 front panel elements
LED Description
PWR LED • Off: Off.
• Red: Boot up in process.
• Green: On.
OPT LED Not used in this model.
