Installing the Access Point
ZoneFlex 7441 Physical Installation
ZoneFlex Indoor Access Point 9.8.1 User Guide, 800-70601-001 Rev C 109

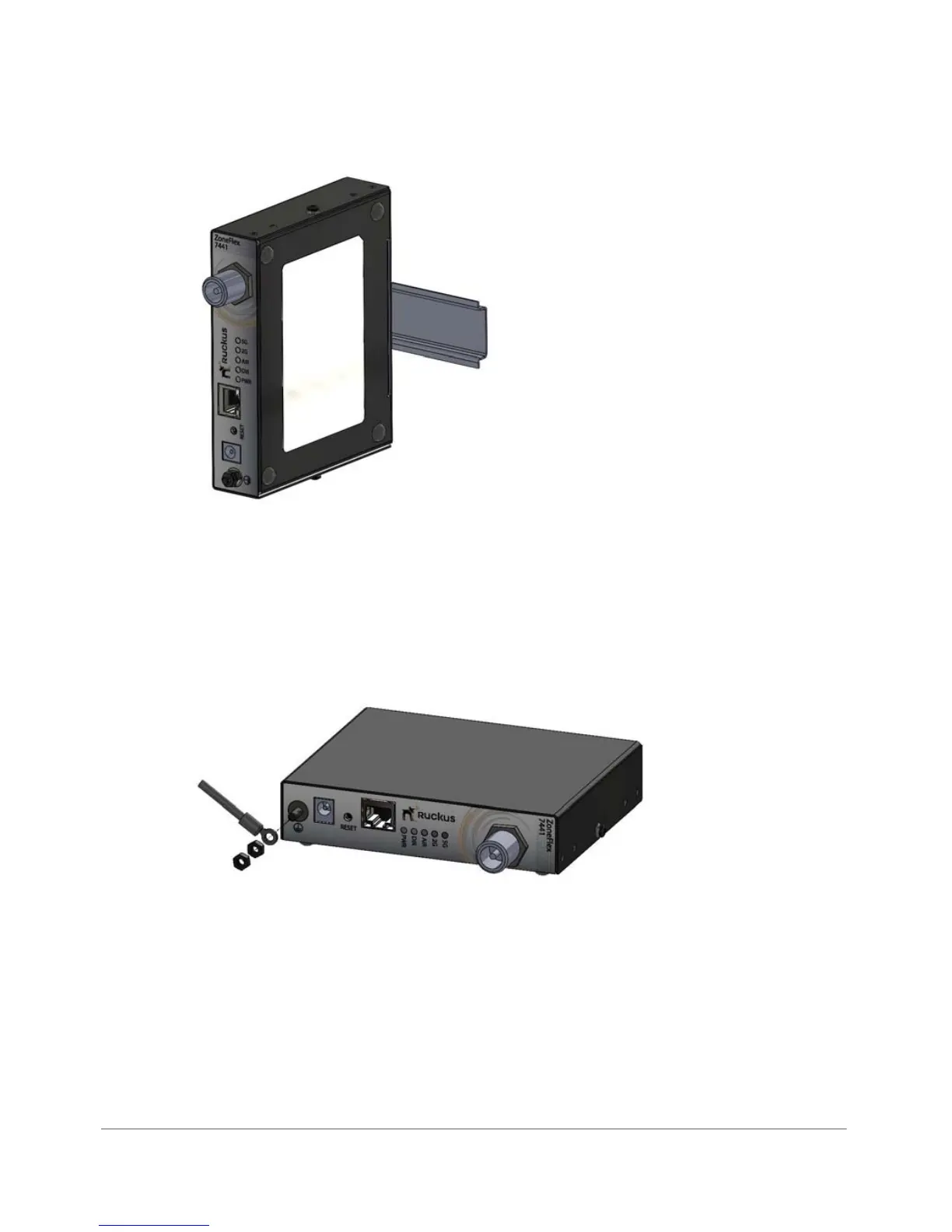

Figure 54. DIN rail mounting
Grounding the Access Point
1 Attach ground wire to the AP using the included terminal ring and two hex nuts
as shown in Figure 55. The terminal ring can accommodate wire sizes ranging
from 16 to 25 gauge.
Figure 55. Grounding the AP
DIN Rail Removal
A large, flat screwdriver inserted from the bottom of the product can be used to pry
the clip off the rail.
