Introducing the ZoneFlex Access Point
Getting to Know the Access Point Features
ZoneFlex Indoor Access Point 9.8.1 User Guide, 800-70601-001 Rev C 48
ZoneFlex 7441 DAS Access Point
NOTE The ZoneFlex 7441 requires a minimum of ZoneFlex firmware version 9.7
and later, SmartCell Gateway (SCG)2.5 and later, or virtual SmartCell Gateway
(vSCG) 2.5 and later to operate.
ZoneFlex 7441 features five LEDs, power, network and DAS coaxial connectors on
its front panel.
Front Panel

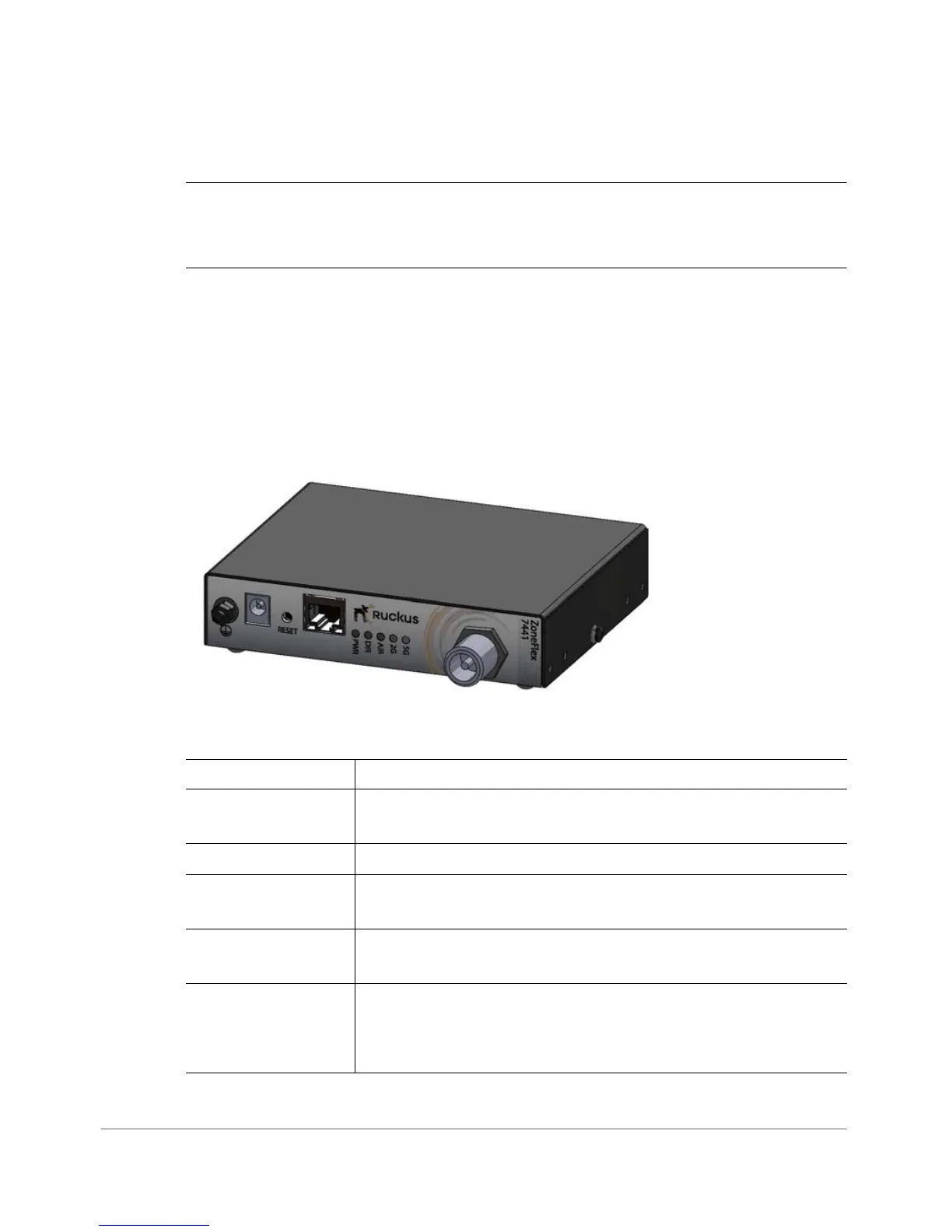

Figure 21 shows the front view of the ZoneFlex 7441. For a description of each front
panel part, refer to Ta ble 2 4 .
Figure 21. ZoneFlex 7441 top view
Table 24. ZoneFlex 7441 front panel elements
LED Description
Ground post Attach the ground wire using the included terminal ring and hex
nuts.
Power socket DC power socket.
Reset button Resets the AP to factory default settings if held for more than 5
seconds.
10/100/1000 PoE
Ethernet port
One RJ-45 port for a 10/100/1000 802.3af PoE (Power over
Ethernet) connection.
PWR LED • Off: Off.
• Red: Boot up in process.
• Green: On.
