ZoneFlex 7055 Dual Band Wired/Wireless Wall Switch
NOTE The ZoneFlex 7055 requires a minimum of ZoneFlex firmware version 9.6
and later, SmartCell Gateway (SCG) 2.1 and later, or virtual SmartCell Gateway
(vSCG) 2.5 and later to operate.
The ZoneFlex 7055 is designed for installation in an electrical junction box. This
section identifies the physical features the ZoneFlex 7055. Before you begin the
installation process, Ruckus Wireless recommends that you become familiar with
these features.
Front View Features
The front view of the ZoneFlex 7055 features four Ethernet Ports, a pass through
port and a DC in socket on the bottom front panel. Refer to Ta b l e 8 for more
information.

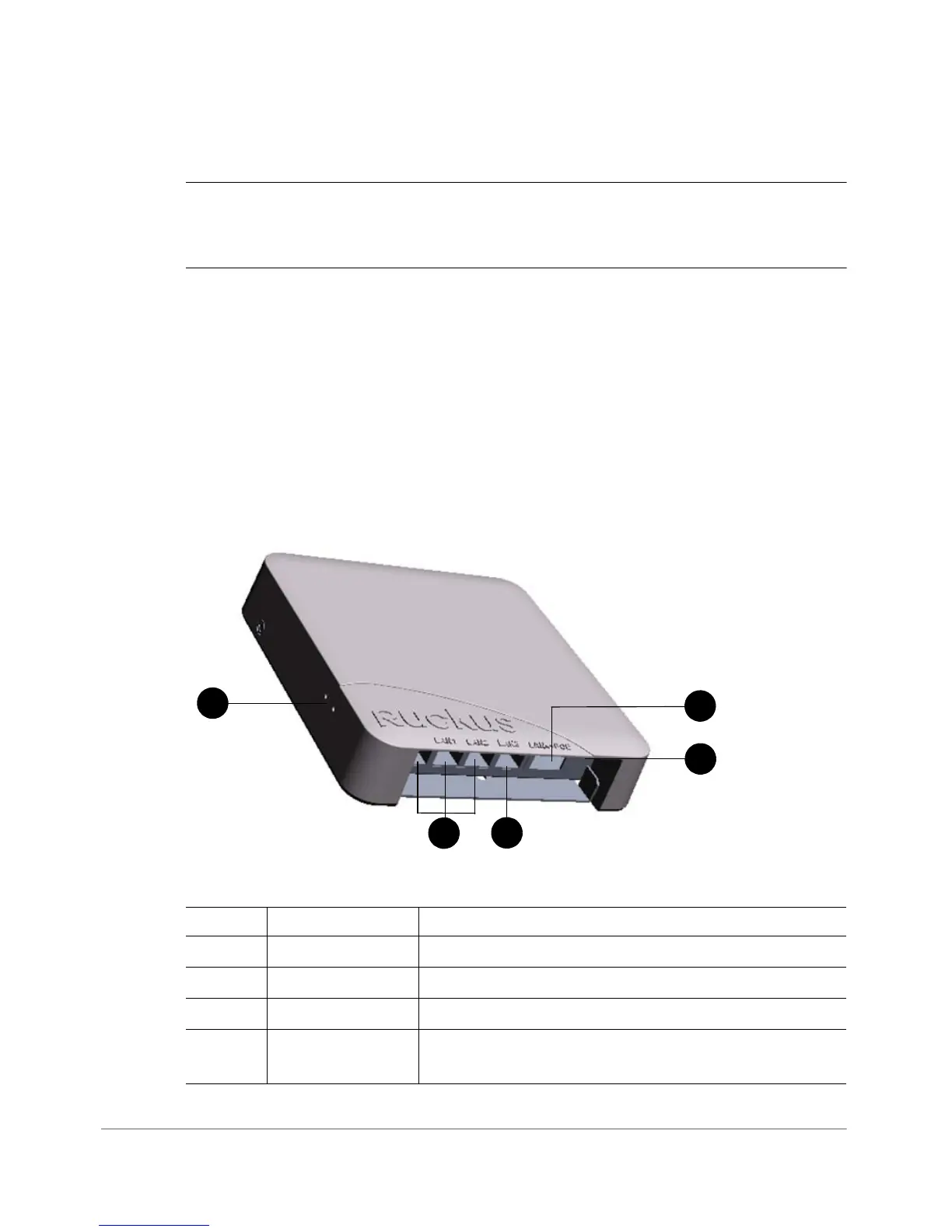

Figure 6. ZF7055 front view
Table 8. ZF7055 front view features
Number Name Description
1 Pass Through port Pass through port.
2 Power Input Optional 48V DC power input.
3 LAN1-LAN3 Three 10/100 RJ-45 Ethernet Ports.
4 LAN4 One 10/100 RJ-45 LAN port with PoE out. Supports
802.3af PSE Class 0/2 (depending on power input).
