Introducing the ZoneFlex Access Point
Getting to Know the Access Point Features
ZoneFlex Indoor Access Point 9.8.1 User Guide, 800-70601-001 Rev C 26
ZoneFlex 7321 Access Point
NOTE The ZoneFlex 7321 requires a minimum of ZoneFlex firmware version 9.4
and later, SmartCell Gateway (SCG) 1.1 and later, or virtual SmartCell Gateway
(vSCG) 2.5 and later to operate.
ZoneFlex 7321 features five LEDs on its front panel and buttons and connectors on
its rear panel.
Front Panel
Figure 9 shows the top view of the ZoneFlex 7321. For a description of front panel
elements, refer to Tab l e 11.

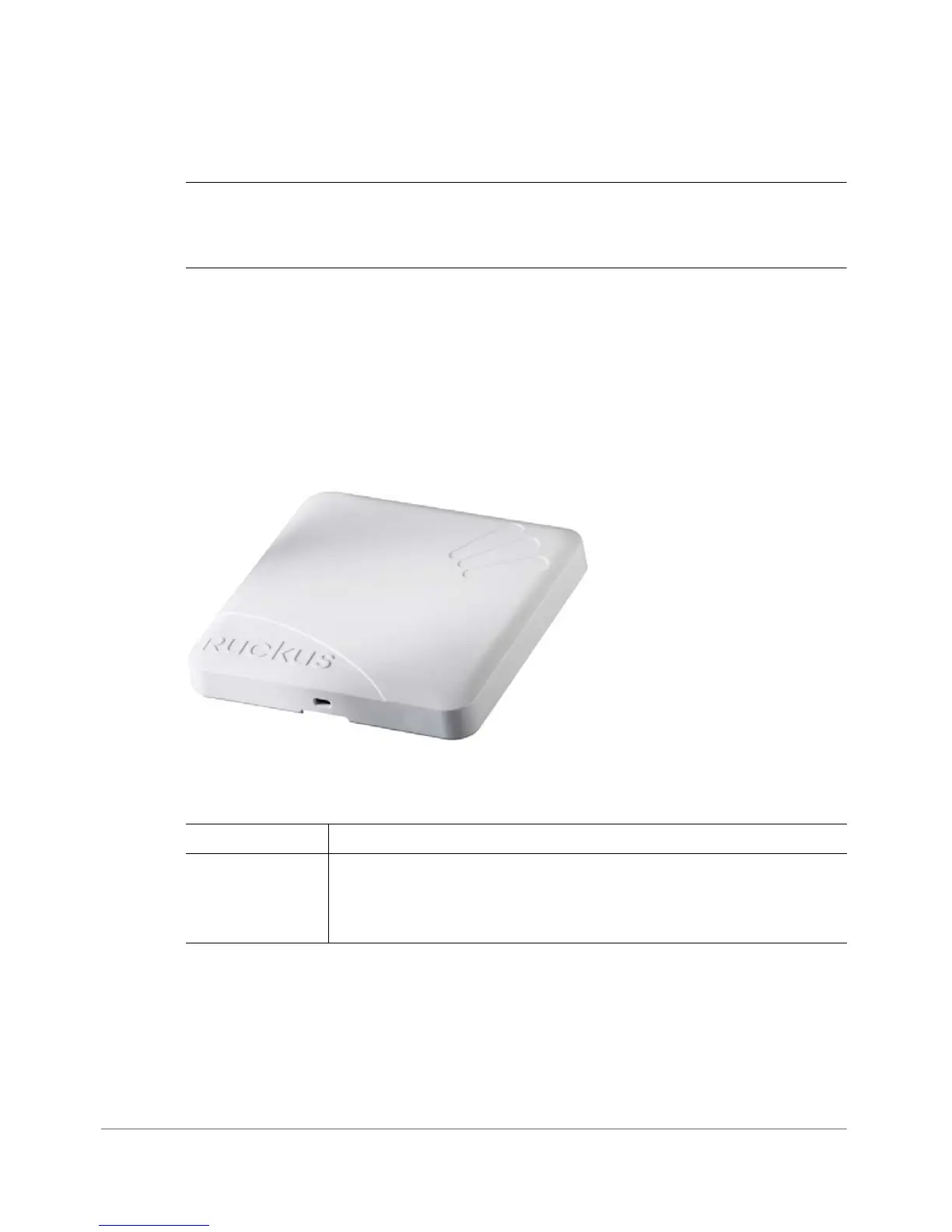

Figure 9. ZoneFlex 7321 front panel
Table 11. ZoneFlex 7321 front panel elements
LED Description
PWR LED • Off: Off.
• Red: Boot up in process.
• Green: On.
