Rear Panel

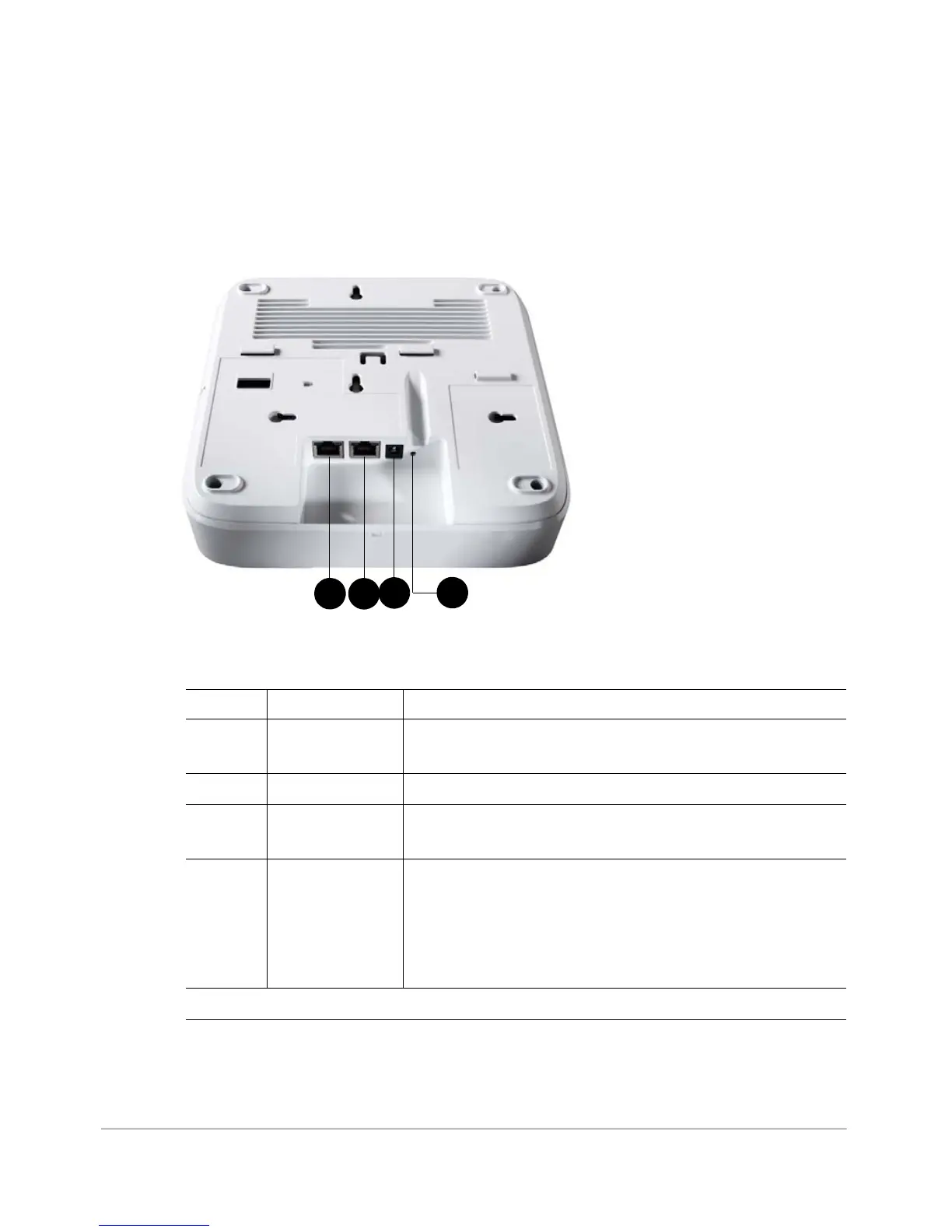

Figure 25 shows the rear panel of the ZoneFlex 7982. For a description of each rear
panel part, refer to Ta ble 2 9 .
Figure 25. ZoneFlex 7982 rear panel
Table 29. ZoneFlex 7982 rear panel elements
Number Item Name Description
1 ETHERNET +
PoE Port
One RJ-45 port for a 10/100/1000 PoE (Power over
Ethernet, 802.3af/at) connection (
Note).
2 ETHERNET Port One RJ-45 port for a 10/100/1000 connection.
3 12V 1.5A Power
Socket
Connect the power adapter (12 VDC/1.25A) to this socket.
Power can also be supplied via the ETHERNET + PoE port.
4 RESET Button Pressing, and then quickly releasing this internal button
reboots the AP. Pressing and holding it for six seconds
resets the AP to factory default settings.
CAUTION! Resetting the AP to factory default settings
erases all settings that you configured previously.
Note:
Class 4 device. Some PoE+ switches reserve 30W for Class 4 device by default.
