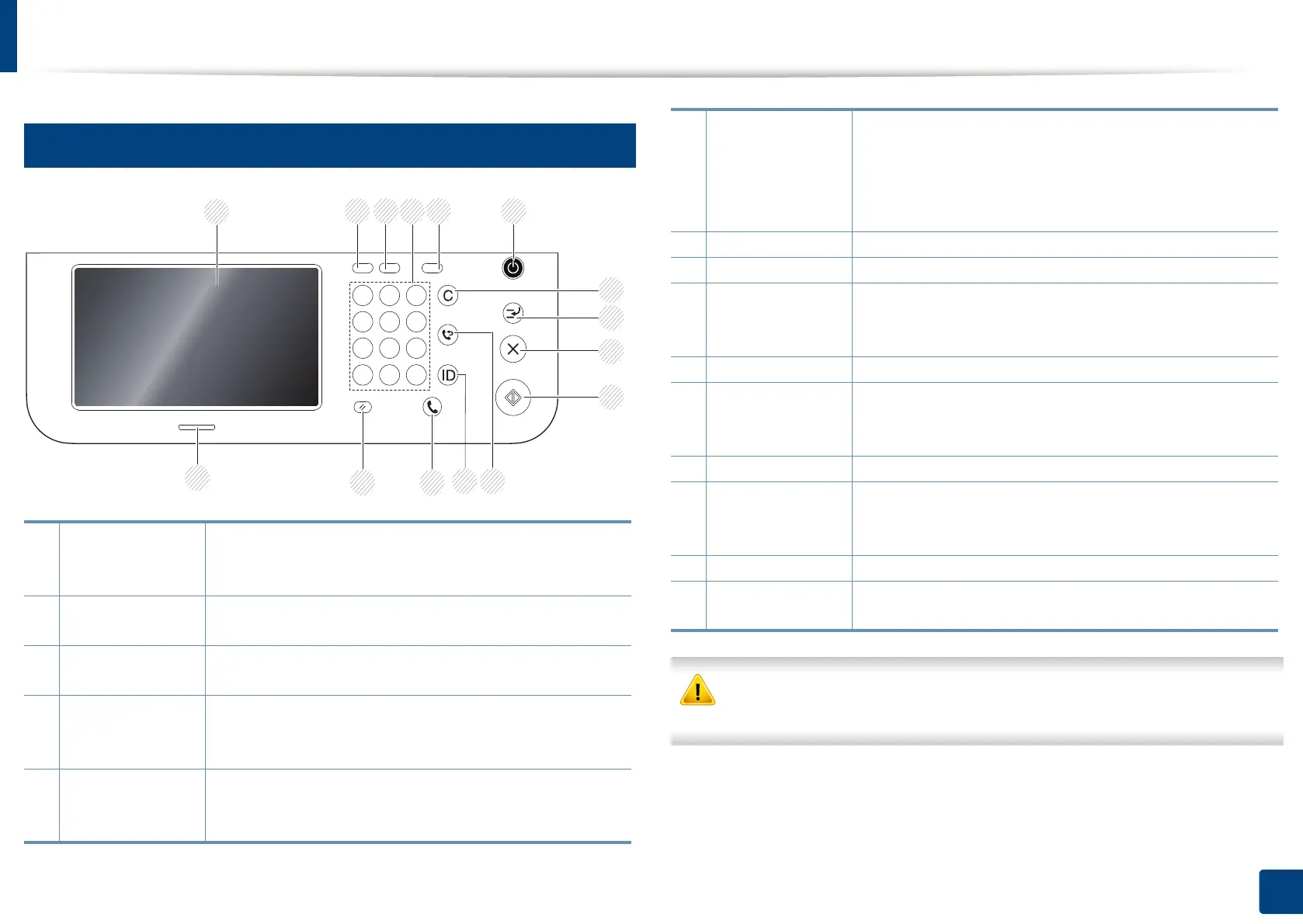

Control panel overview
13
Control panel
When you use the display screen, use your finger only. The screen may be
damaged with a sharp pen or anything else.
1
Display screen
Shows the current machine status and prompts during
an operation. You can set menus easily using the display
screen.
2
Job Status
Shows the jobs currently running, queued jobs,
completed jobs, current error code or secured jobs.
3
Counter
Shows the amount of paper used (see "Counter button"
on page 31).
4
Numeric keypad
Dials numbers and enters alphanumeric characters. You
can also enter the number value for document copies or
other options.
5
Eco
Turn on Eco mode. Turn on the Eco mode to reduce
toner consumption and paper usage when pc-printing
and copying only (see "Eco button" on page 32).
6
Power/Wakeup
Turns the power on or off. When the blue LED is on, the
machine is powered on and you can use it. To turn the
machine off, press and hole this button for at least 3
seconds. Press Yes when the confirmation window
appears.
7 Clear Deletes characters in the edit area.
8 Interrupt Stops a job in operation for urgent copying.
9
Stop
Stops an operation at any time. The pop-up window
appears on the screen showing the current job that the
user can stop or resume.
10 Start Starts a job.
11
Redial/Pause
Redials the recently sent fax number or received caller
ID in ready mode, or inserts a pause (-) into a fax number
in edit mode.
12 Logout Allows user to log out.
13
On Hook Dial
When you press this button, you can hear a dial tone.
Then enter a fax number. It is similar to making a call
using a speaker phone.
14 Reset Resets the current machine setup.
15
Status LED
Shows the status of your machine (see "Understanding
the LEDs" on page 27).
