Chapter 1 Before Installation
RF4402d Series Installation Manual v1.0 11
Copyright © 2018, All Rights Reserved.

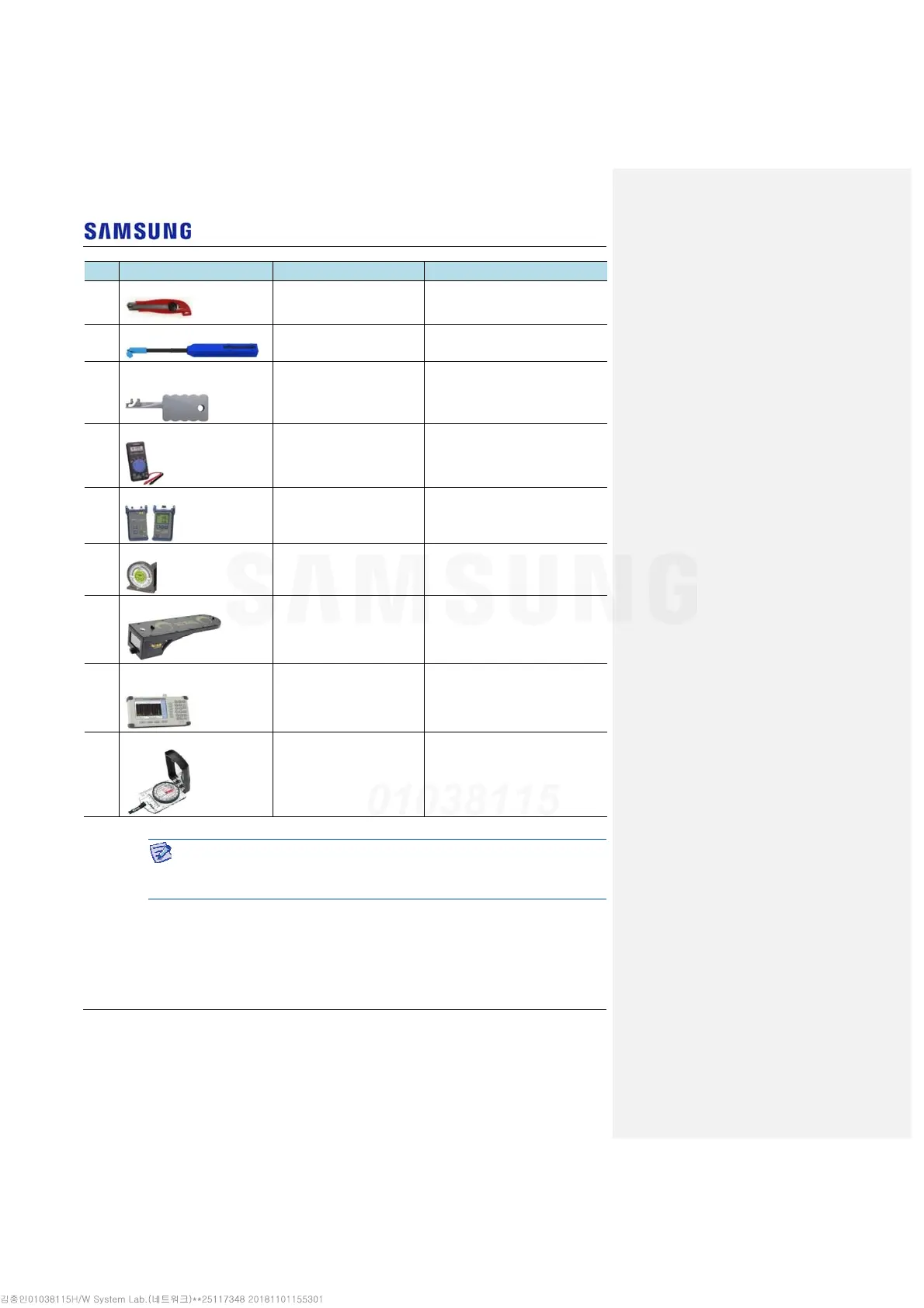

No. Name Specification Purpose of use
24 Knife
Basic Tool Cutting
25 Optical Connector Cleaner
For LC Connector For Optical Connector Cleaning
26 Optical Transceiver Removal
Tool
Normal Separate the Optical Module
27 Multi tester
Digital Pocket Tester
The voltage and current
measurements
Whether measured cable
disconnection
28 Fiber Optical Test Set
Wave length: 1310 nm, 1550
nm (single mode) 850 nm,
1310 nm (multi mode)
Optical level check
29 Angle Meter
Normal Antenna angle measurement
30 Antenna Alignment Tool
- Checking azimuth and tilting
31 Multi master (VSWR & RF
Power)
Normal Feeder VSWR measurement
32 Compass
Normal Check azimuth during installation
The required installation tools may vary depending on the conditions at the site.
In addition to the basic tools, a protractor, ladder, safety equipment, cleaning tools,
and so on should also be prepared in consideration of the site conditions.
