Sanyo PLC HF10000L Service Manual

-15-

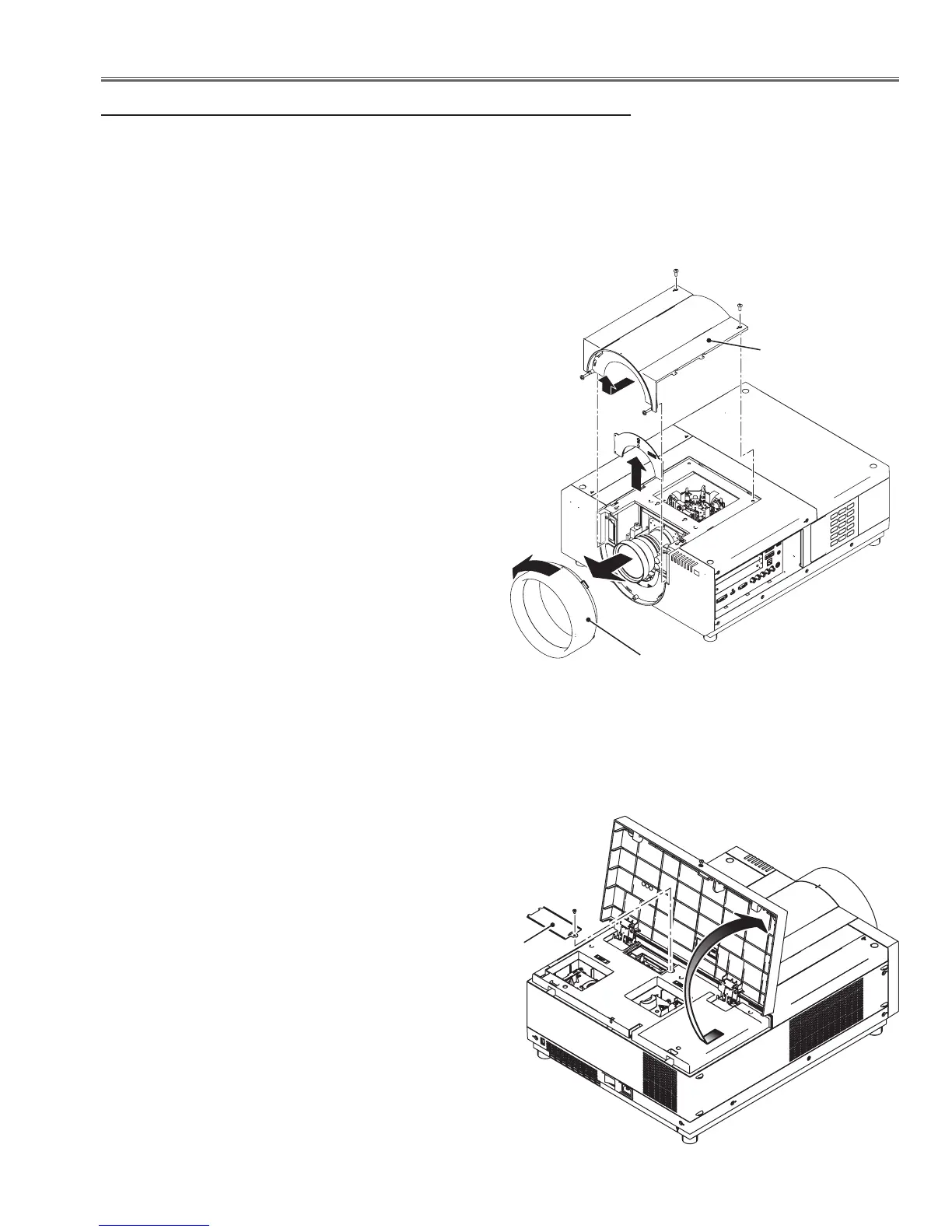

Maintenance
This projector provides a cabinet front cover and lamp cover on the cabinet top to enhance the service maintenance.
This enables service personnel to align the optical adjustment or replace the optical parts without disassembly the
cabinet top.
Quick access to the Projection lens unit, LCD/Prism assy, Polarized glass assy.
Quick Maintenance
Quick access to the PBS/Integrator lens assy
1
2
Turn the Cabinet Front Ring anti-clockwise and
pull it forward to remove.
Remove 2 screws-A and loosen 2 screws-B, and
pull the cabinet front cover-A forward.
You can access the projection lens unit, LCD/
Prism assy and Polarized glass assy quickly.
1
2
Loosen 1 screw-A on the Lamp Cover. Slide and
open the Lamp Cover until it makes a clicking
sound.
Remove 1 screws-B and take the PBS Cover.
You can access the PBS/Integrator lens assy
quickly.
Cabinet front cover-A
Cabinet front ring
A
A
B
B
B
A
PBS Cover

Sanyo PLC HF10000L Specifications

General

Matrix size	1.65 \
Matrix type	3-panel (p-Si TFT active)
Projection distance	- m
Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 120 kHz
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	- \
Projector native resolution	-
Keystone correction, horizontal	30 °
Interface	USB
Power LED	Yes
RS-232 ports	2
Dimensions (WxDxH)	530 x 757 x 268 mm
Focus	Auto
Focal length range	- mm
Noise level	43 dB
Noise level (economic mode)	39 dB
Dot clock scanning frequency	230 MHz
Lamp power	380 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Wi-Fi	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Product color	Gray
Power consumption (standby)	18 W
Power consumption (typical)	955 W
Cables included	AC, RS-232

Weight and Dimensions

Weight	27600 g
