Sanyo PLC HF10000L Service Manual

-49-

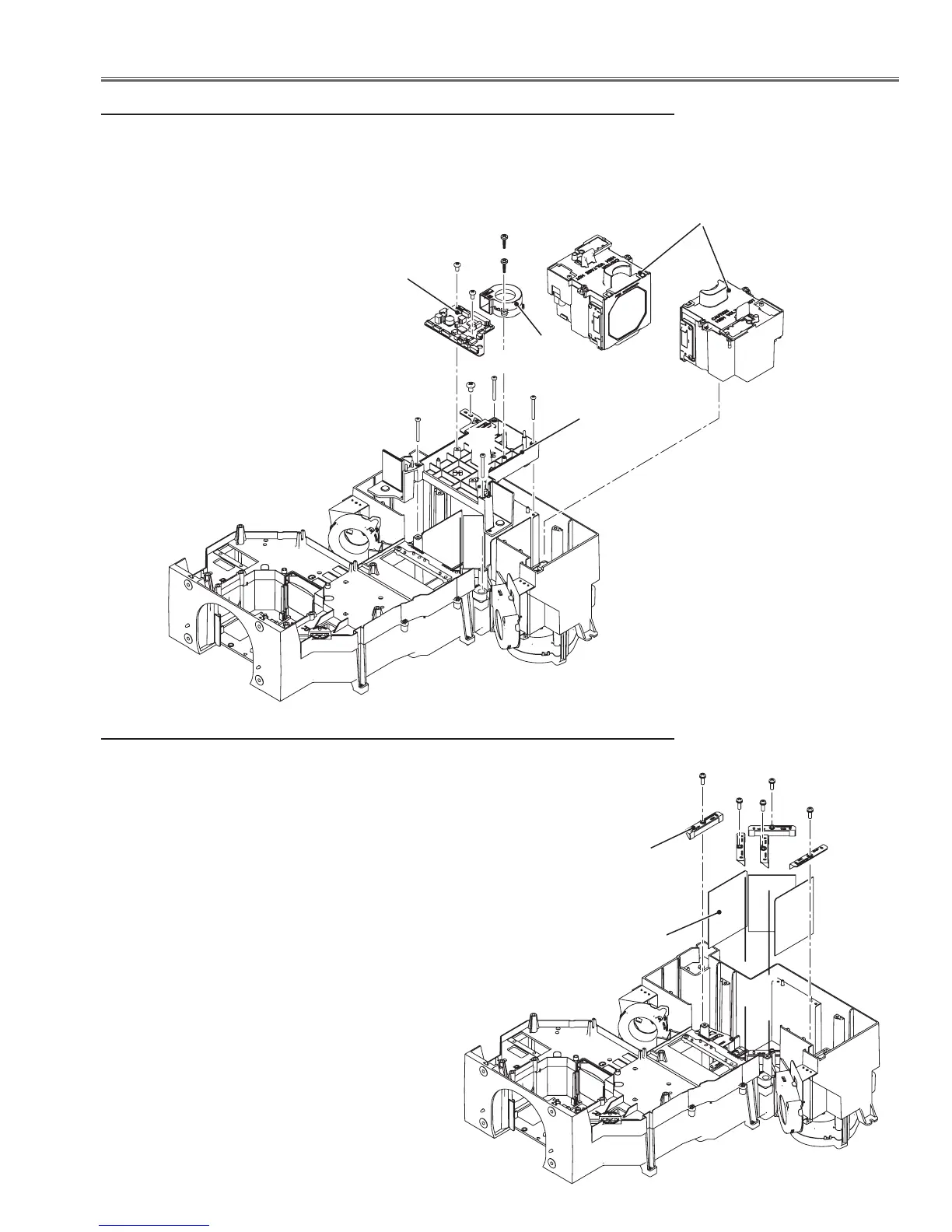

Optical Parts Disassembly
9 Optical lamp unit top removal
1 Loosen 2 screws on the each lamp house and take the lamp houses upward off.
2 Remove 2 screws-A(T3x8) and remove the lamp fan net board.
3 Remove 2 screws-B(T3x12) and remove the fan (FN912).
4 Remove 4 screws-C(M3x30) and screw-D(M4x6) and remove the optical lamp
unit top.
Lamp houses
C
A
A
B
B
C
C
C
D
FN912
Lamp fan net
board
Optical lamp
unit top
9-1 Optical lamp unit disassembly
Remove each 1 screw-A(M3x10) on the stopper of the mirror and remove mirror.
A
A
A
A
Optical filter
Stopper

Sanyo PLC HF10000L Specifications

General

Matrix size	1.65 \
Matrix type	3-panel (p-Si TFT active)
Projection distance	- m
Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 120 kHz
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	- \
Projector native resolution	-
Keystone correction, horizontal	30 °
Interface	USB
Power LED	Yes
RS-232 ports	2
Dimensions (WxDxH)	530 x 757 x 268 mm
Focus	Auto
Focal length range	- mm
Noise level	43 dB
Noise level (economic mode)	39 dB
Dot clock scanning frequency	230 MHz
Lamp power	380 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Wi-Fi	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Product color	Gray
Power consumption (standby)	18 W
Power consumption (typical)	955 W
Cables included	AC, RS-232

Weight and Dimensions

Weight	27600 g
