Sanyo PLC HF10000L Service Manual

-62-
Optical Adjustment
5. Convergence adjustment
Preparation
When adjusting the convergence of LCD panels, Convergence Adjustment Tool is required. This tool can be ordered
as a service parts. Parts No. is shown below.
Mount the Adjustment Tool on the LCD panel and adjust each panel convergence.
Make sure each Red, Green and Blue LCD panel unit has been correctly installed before performing convergence
adjustments.
[Note]
This convergence adjustment is especially designed for the service. It is not for the precise adjustment as the factory
adjustment.

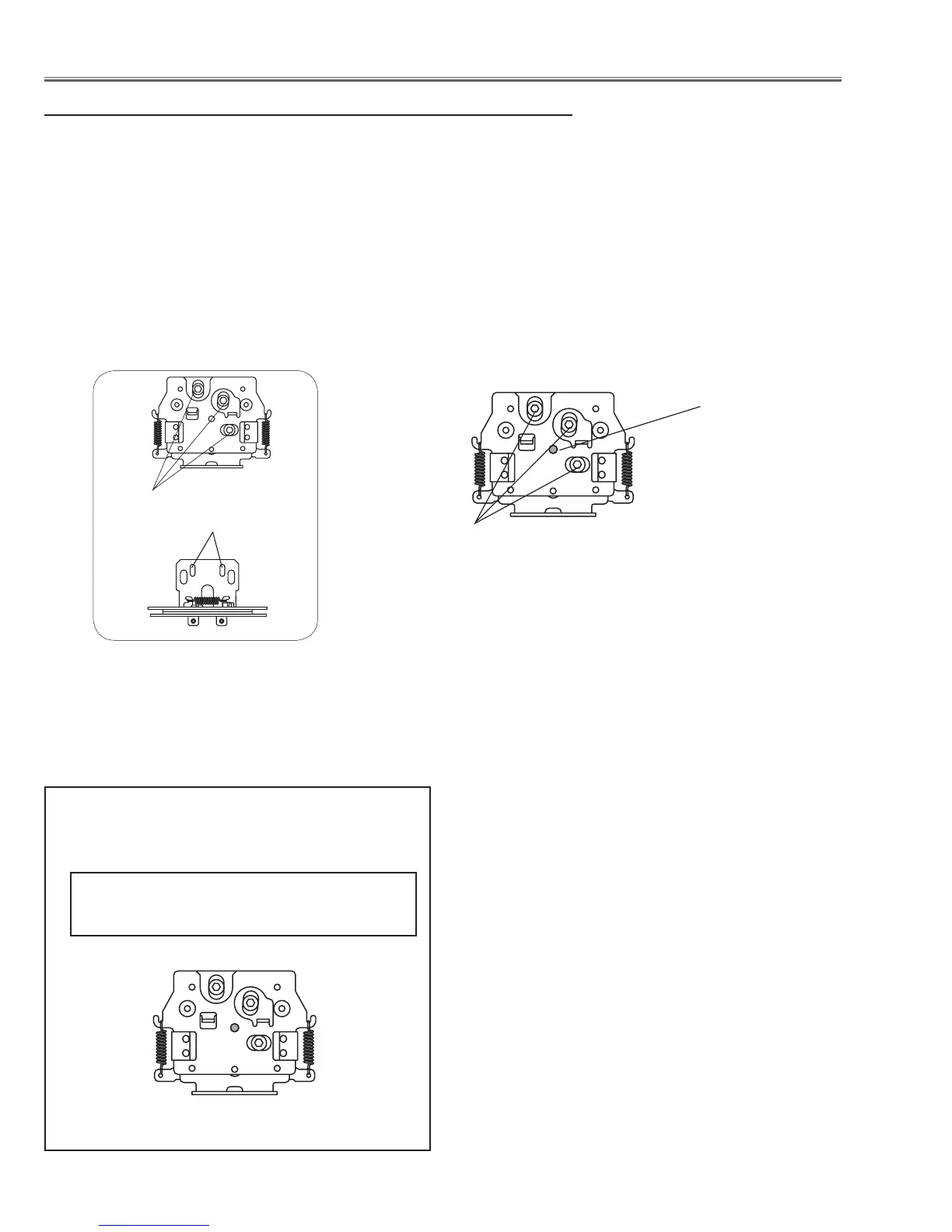

Convergence Adjustment Tool
the hole for the guide
The screw for the adjustment
Top View
Hole
Adjust each screw for Hole can be seen clearly through
the hole.
Screw Setting
The convergence adjustment tool is needed when
taking the convergence adjustment.
Give the following information to the dealer to order
it.
Part Name ;ASSEMBLY CG ADJUST LCD
Service Parts No. 910 304 8209

Sanyo PLC HF10000L Specifications

General

Matrix size	1.65 \
Matrix type	3-panel (p-Si TFT active)
Projection distance	- m
Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 120 kHz
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	- \
Projector native resolution	-
Keystone correction, horizontal	30 °
Interface	USB
Power LED	Yes
RS-232 ports	2
Dimensions (WxDxH)	530 x 757 x 268 mm
Focus	Auto
Focal length range	- mm
Noise level	43 dB
Noise level (economic mode)	39 dB
Dot clock scanning frequency	230 MHz
Lamp power	380 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Wi-Fi	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Product color	Gray
Power consumption (standby)	18 W
Power consumption (typical)	955 W
Cables included	AC, RS-232

Weight and Dimensions

Weight	27600 g
