-27-
Mechanical Disassembly

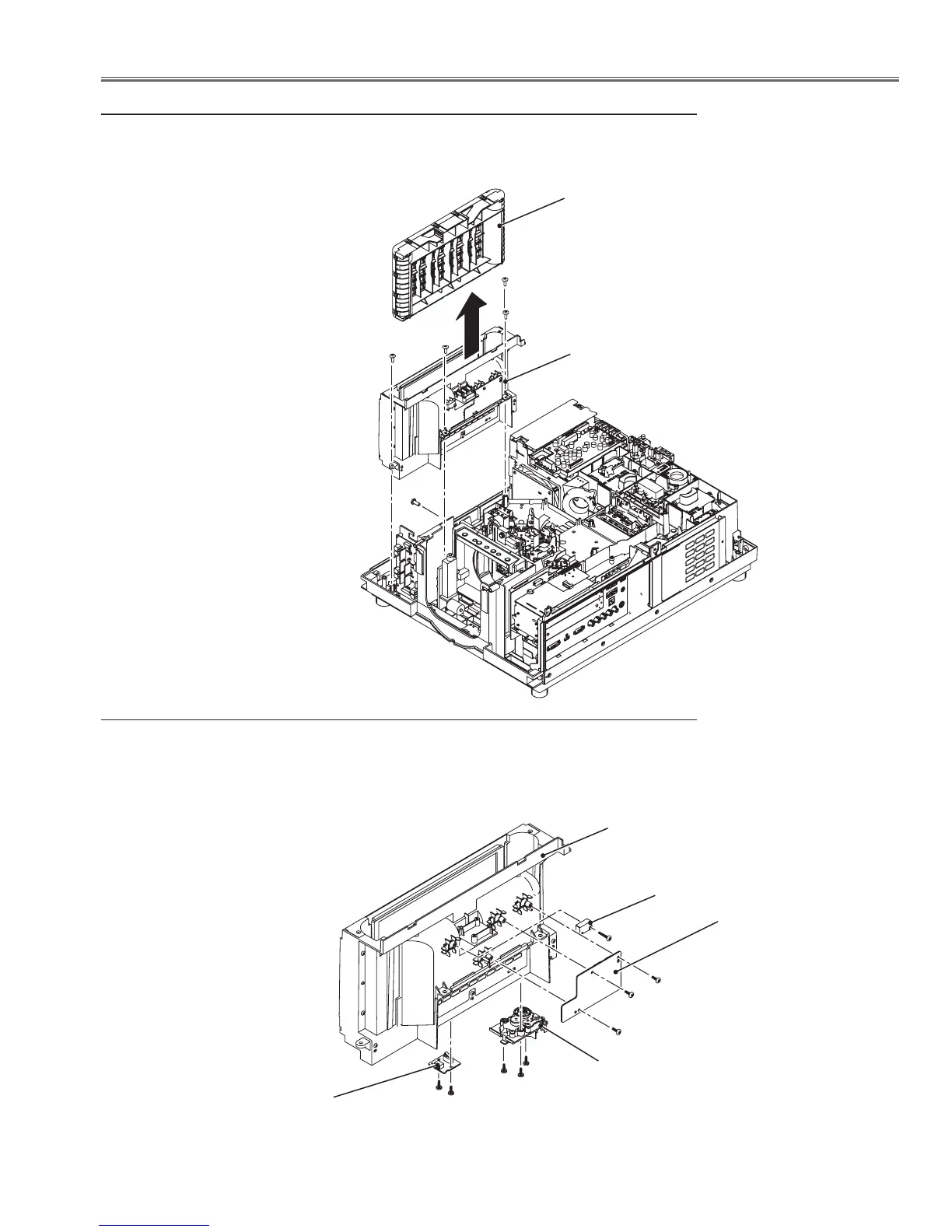

5 Filter holder assy removal
1 Pull the filter cartridge upward off.
2 Remove 4 screws-A (T4x10) and 1 screw-B(M4x10), and then remove the filter holder
assy upward off.
5-1 Filter holder disassembly
1 Remove 1 screw-A (T3x14) and remove the wind sensor (S901).
2 Remove 2 screws-B (T3x8) and remove the filter switch board.
3 Remove 3 screws-C (T3x8) and remove the filter motor assy.
4 Remove 3 screws-D (T3x8) and remove the AMF board.
A
A
A
A
D
B
B
C
C
C
Filter cartridge
Filter holder assy
Filter holder
Wind sensor (S901)
Filter motor assy
Filter SW board
B
AMF driver board
A
D
D
