-28-

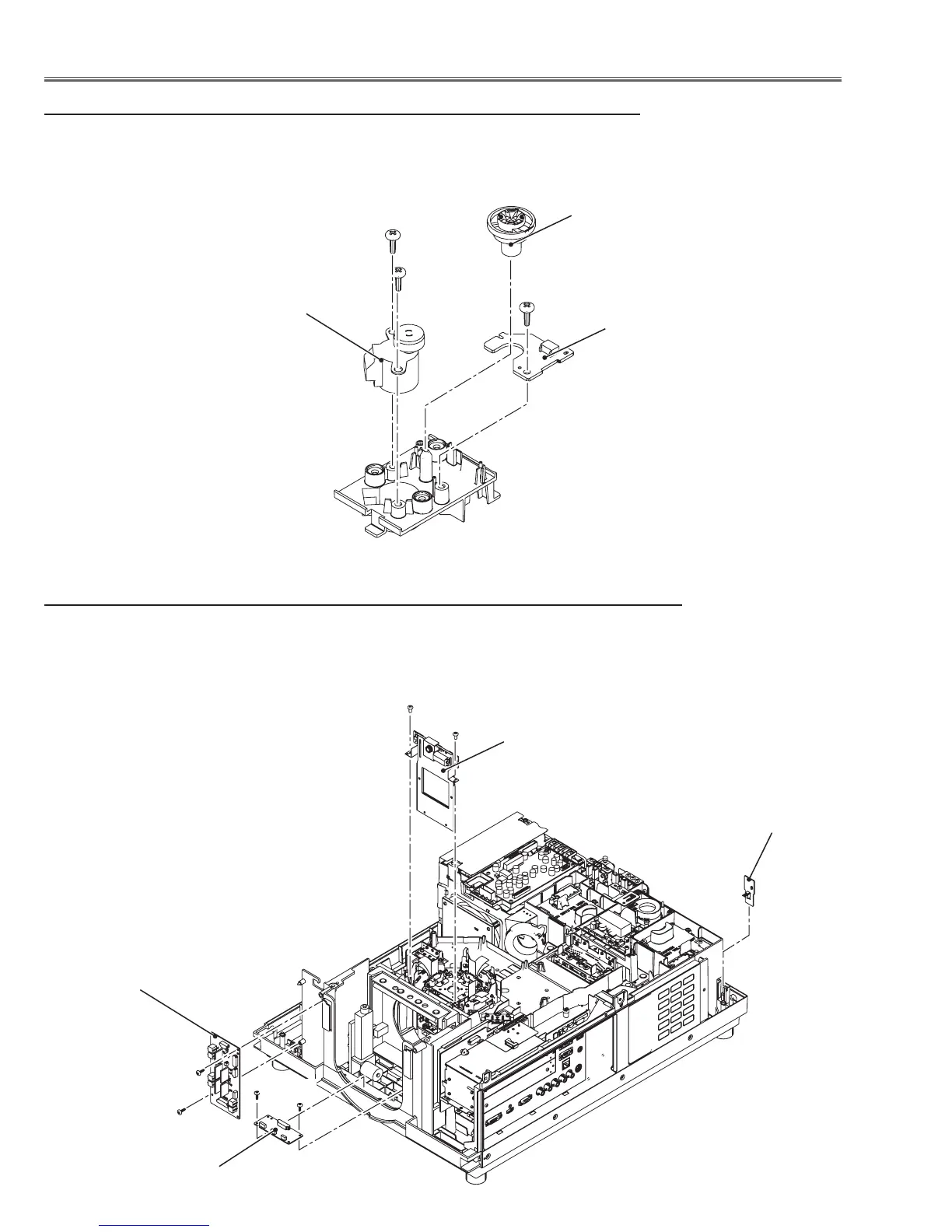

Mechanical Disassembly
5-2 Filter motor assy disassembly
1 Pull the filter gear upward off.
2 Remove 2 screws-A (T3x8) and remove the filter motor.
3 Remove 1 screw-B (T3x8) and remove the hall sensor board.
A
A
B
Filter motor
Filter gear
Hall sensor board
6 Shutter assy, motor, lens-net and RC rear boards removal
1 Remove 2 screws-A (T3x12) and remove the shutter assy upward off.
2 Remove 2 screws-B (T3x8) and remove the motor board.
3 Remove 2 screws-C (T3x8) and remove the lens-net board.
4 Remove the RC rear board upward off.
A
A
B
B
C
C
Shutter assy
RC rear board
Motor board
Lens-net board
