Mechanical Disassembly

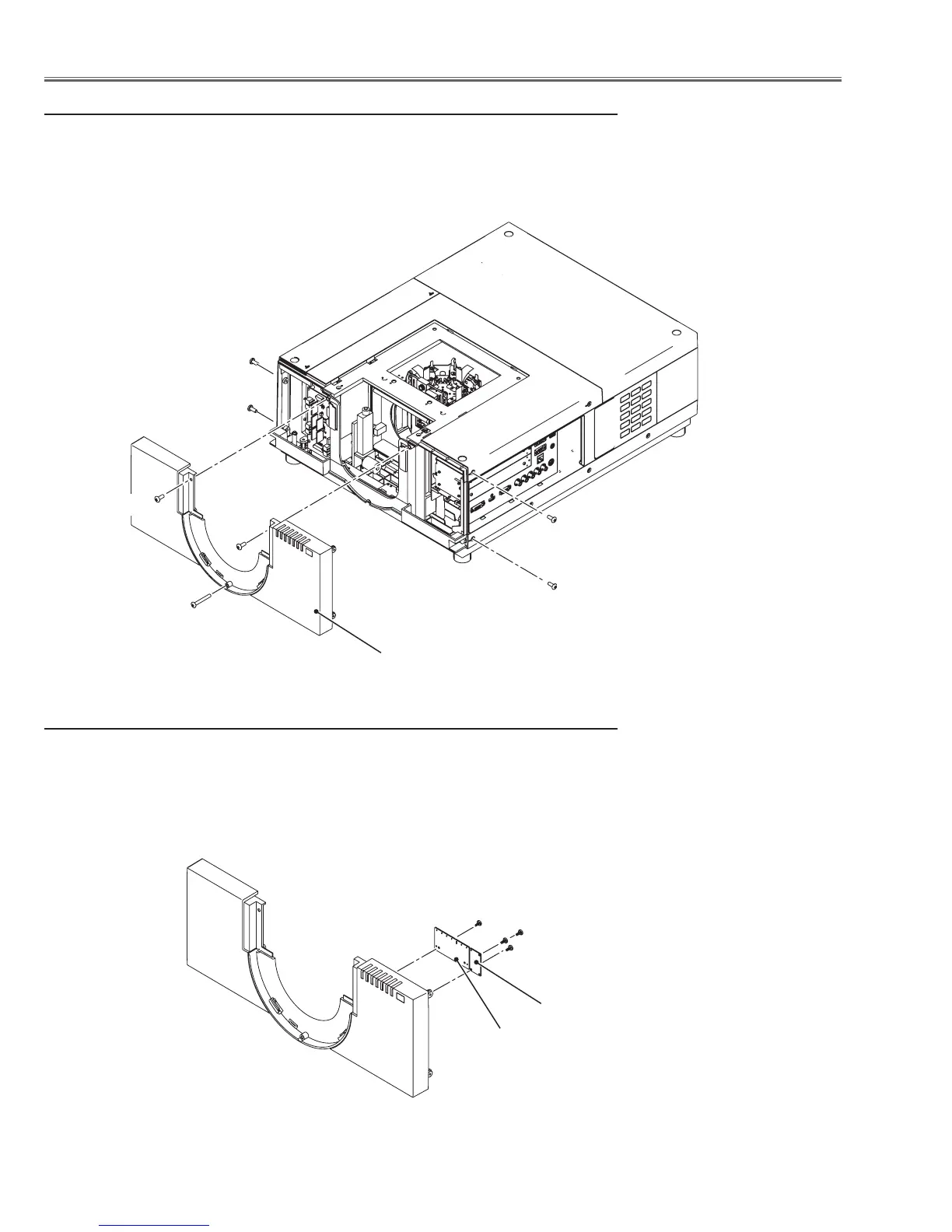

2 Cabinet front removal
1 Remove 4 screws-A (M4x10), 2 screws-B (M4x10) and 1 screw-C (M4x30).
2 Disconnect the cable on the LED board and remove the cabinet front.
2-1 LED and RC front boards removal
1 Remove 2 screws-A (T3x6) on the LED board and 2 screws-B (T3x6) on the RC
front board and then remove boards.
Cabinet front
RC front board
LED board
A
A
A
A
C
B
B
A
A
B
B
