Sanyo PLC HF10000L Service Manual

-67-

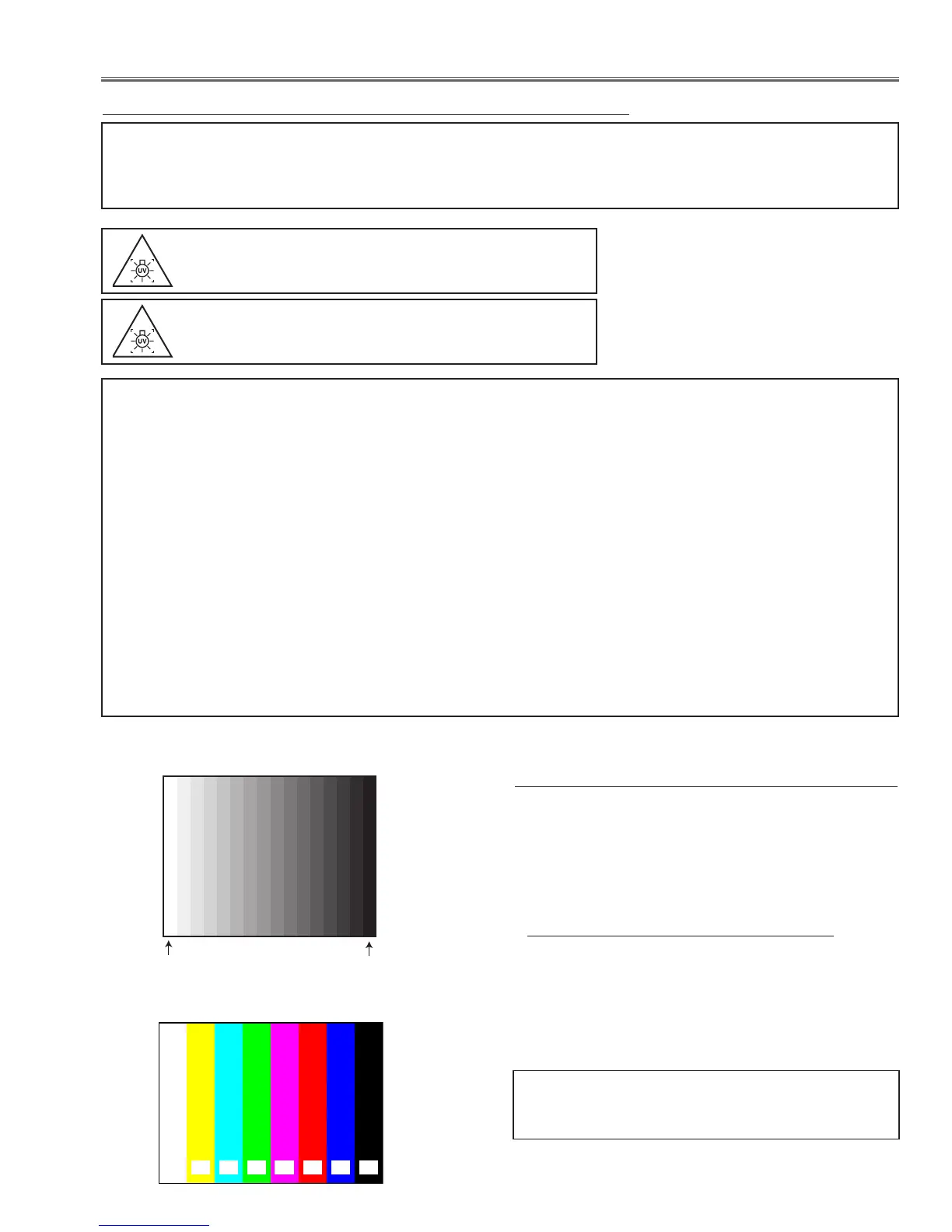

Electrical Adjustment
Circuit Adjustments
CAUTION: The each circuit has been made by the fine adjustment at factory. Do not attempt to adjust the following
adjustments except requiring the readjustments in servicing otherwise it may cause loss of performance
and product safety. Before taking these adjustments, turn the projector for more than 10 minutes to sta-
bilize the operation.
WARNING : USE UV RADIATION EYE AND SKIN
PROTECTION DURING SERVICING.
CAUTION:
To prevent suffer of UV radiation, those adjustments
must be completed within 25 minutes.
[Adjustment Condition]
● Input signal
Computer signal ................. 0.7Vp-p/75W terminated (XGA)
Video signal ...................... 1.0Vp-p/75W terminated (PAL/NTSC)
Component Video signal .... 1.0Vp-p/75W terminated (1080i/60)
● Image mode ........................ “Standard”
● Lamp mode......................... “2-Lamps”
● Lamp control ....................... “Normal”
● Brilliant color ....................... “Off”
● Auto picture control............. “Off”
● Color management ............. “Off”
Note:
* Please refer to “Service Adjustment Menu Operation” for entering the service mode and adjusting the service
data.
White 100%
Black 100%
16 steps gray scale pattern
W Y C G M R B BK
100% full color bar pattern
Equipment Digital voltmeter
Lamp mode 2-Lamps
Input AC Voltage 230V
Connect a digital voltmeter to test points and adjust the
volumes to be specified voltage as follow;
Test Points Volume Voltage
K16B1 (+) K16B2 (-) VR1601 390Vdc
K16C1 (+) K16C2 (-) VR1651 390Vdc
Caution:
Be sure to connect the lamp when taking this adjust-
ment.
z Output Voltage adjustment
● Test Pattern
This adjustment is not required even if the PFC board
is replaced because this adjustment is carried out be-
fore parts shipment.

Sanyo PLC HF10000L Specifications

General

Matrix size	1.65 \
Matrix type	3-panel (p-Si TFT active)
Projection distance	- m
Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 120 kHz
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	- \
Projector native resolution	-
Keystone correction, horizontal	30 °
Interface	USB
Power LED	Yes
RS-232 ports	2
Dimensions (WxDxH)	530 x 757 x 268 mm
Focus	Auto
Focal length range	- mm
Noise level	43 dB
Noise level (economic mode)	39 dB
Dot clock scanning frequency	230 MHz
Lamp power	380 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Wi-Fi	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Product color	Gray
Power consumption (standby)	18 W
Power consumption (typical)	955 W
Cables included	AC, RS-232

Weight and Dimensions

Weight	27600 g
