Sanyo PLC HF10000L Service Manual

PCB_KG2A A17
PWB,FRONT R/C KG2A
PARTS_SIDE
A2821
C2821
C2822
D2822
R2821
1
4
K28R
D2821
A30C5
LED
“K65B”

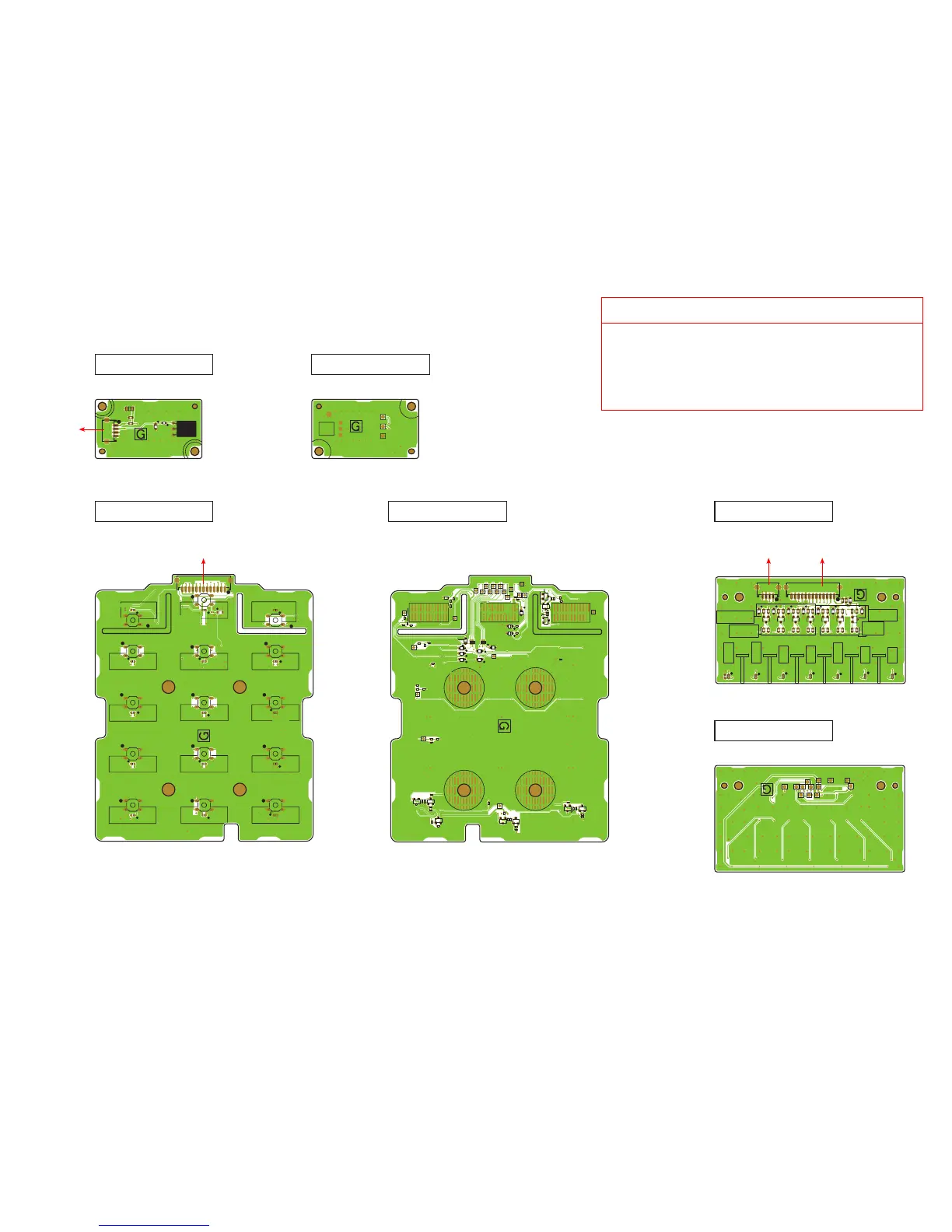

Printed Wiring Board Diagrams
This projector is isolated from AC line by using the internal converter transformer.
Please pay attention to the following notes in servicing
1. Do not touch the part on hot side (primary circuit) or both parts on hot and cold
sides (secondary circuit) at the same time.
2. Do not shorten the circuit between hot and cold sides.
3. The grounding lead must be connected to the ground of the same circuit when
measuring of voltages and waveforms.
! CAUTION
RC FRONT (SIDE:B)
PART SIDE
PWB,LED. KG2A
POWER (GREEN)
LAMP
(RED)
WARNING
WARNING
FILTER
SHUTTER
LAMP1_REP
(ORANGE)
(ORANGE)
(RED)
(BLUE)
(ORANGE)
LAMP2_REP
TEMP
1AA4B10C6880G
R2860
D2865
R2861
D2866
R2862 R2863 R2864
R2865 R2866 R2867 R2868 R2869 R2870
R2871
R2872
R2873 R2874
R2876 R2878 R2879 R2880
C2851
C2852
Q2851
Q2852
Q2853
Q2854
Q2855Q2856
Q2857
D2851
D2852
D2853 D2854
D2855
R2851
D2856
R2852
D2857
R2853
D2858
R2854
D2859
R2855 R2856
R2857 R2858 R2859
D2860
D2861 D2862
D2863
1 13
K28B
R2850
1
4
K65B
A30C5
LED (SIDE:A)
RC FRONT (SIDE:A)
SOLDER_SIDE
A2821
A30C5
FRONT RC
“K28R”
MAIN
“K28C”
SOLDER SIDE
A30C5
LED (SIDE:B)
PWB, CTRL. KL8A
1AA4B10C6740B
AUTO PC ADJ. INFORMATION.
DOWN
SELECT
RIGHT
LEFT
INPUT
UP
ZOOM
MENU
FOCUS
LENS SHIFT
LIGHT
ON/STAND-BY
SHUTTER
SW6801
SW6802
SW6803
SW6804
SW6806
D6801
D6802
D6803
D6804
D6806
D6807
D6808
SW6811
D6809
SW6812
SW6813
SW6814
SW6816
D6811
D6812
D6813
D6814
D6816
D6817
D6818
SW6821
SW6822
SW6823
SW6824
SW6826
D6826
R6884
R6886
1
13
K68A
A30C5
cam1 cam2
cam3cam4
cam6
SW6801
SW6802
SW6803
SW6804
SW6806
D6801
D6802
D6803
D6804
D6806
D6807
D6808
D6809
SW6811
SW6812
SW6813
SW6814
SW6816
D6811
D6812
D6813
D6814
D6816D6817 D6818
SW6821
SW6822
SW6823
SW6824
SW6826
D6826
R6884
R6886
K68A
CONTROL (SIDE:A)
MAIN
“K68B”
C6805
Q6801
Q6802
Q6803
Q6804
Q6806
Q6807
Q6808
Q6809
C6810
C6815
Q6811
C6819
Q6816
R6801
R6802
R6803
R6804
R6806
R6807
R6808
R6809
R6811
R6812
R6813
R6814
D6819
R6816
R6817
R6818
R6819
D6821
D6822
D6823
D6824
R6821
R6822
R6823
D6827
R6824
D6828
D6829
R6826
R6827
R6828
R6829
D6831
D6832
R6831
R6832
R6833
R6834
R6836
R6837
R6838
R6839
R6841
R6842
R6870
R6875
R6880
R6887
R6888
R6889
R6891
R6892
R6893
RB6801
RB6802
A30C5
cam5
K68A_1
K68A_2
K68A_3
K68A_4
K68A_5
K68A_6
K68A_7
K68A_8
K68A_9
Q6801
C6805 Q6802
Q6803
Q6804
Q6806
Q6807
Q6808
Q6809
C6810
Q6811
C6815
C6819
Q6816
R6801
R6802
R6803
R6804
R6806
R6807
R6808
R6809
R6811
R6812
R6813
R6814
D6819
R6816
R6817
R6818
R6819
D6821
D6822
D6823D6824
R6821
R6822
D6827
R6823
D6828
K68A_10
R6824
D6829
K68A_11
R6826
K68A_12
R6827
K68A_13
R6828 R6829
D6831
D6832
R6831
R6832
R6833
R6834
R6836
R6837
R6838
R6839
R6841
R6842
R6870
R6875
R6880
R6887
R6888
R6889
KEY01
KEY02
KEY03
KEY04
R6891
R6892
R6893
KEY11
KEY12
KEY13
KEY14
RB6801RB6802
CONTROL (SIDE:B)
