Sanyo PLC HF10000L Service Manual

-168-
Troubleshooting

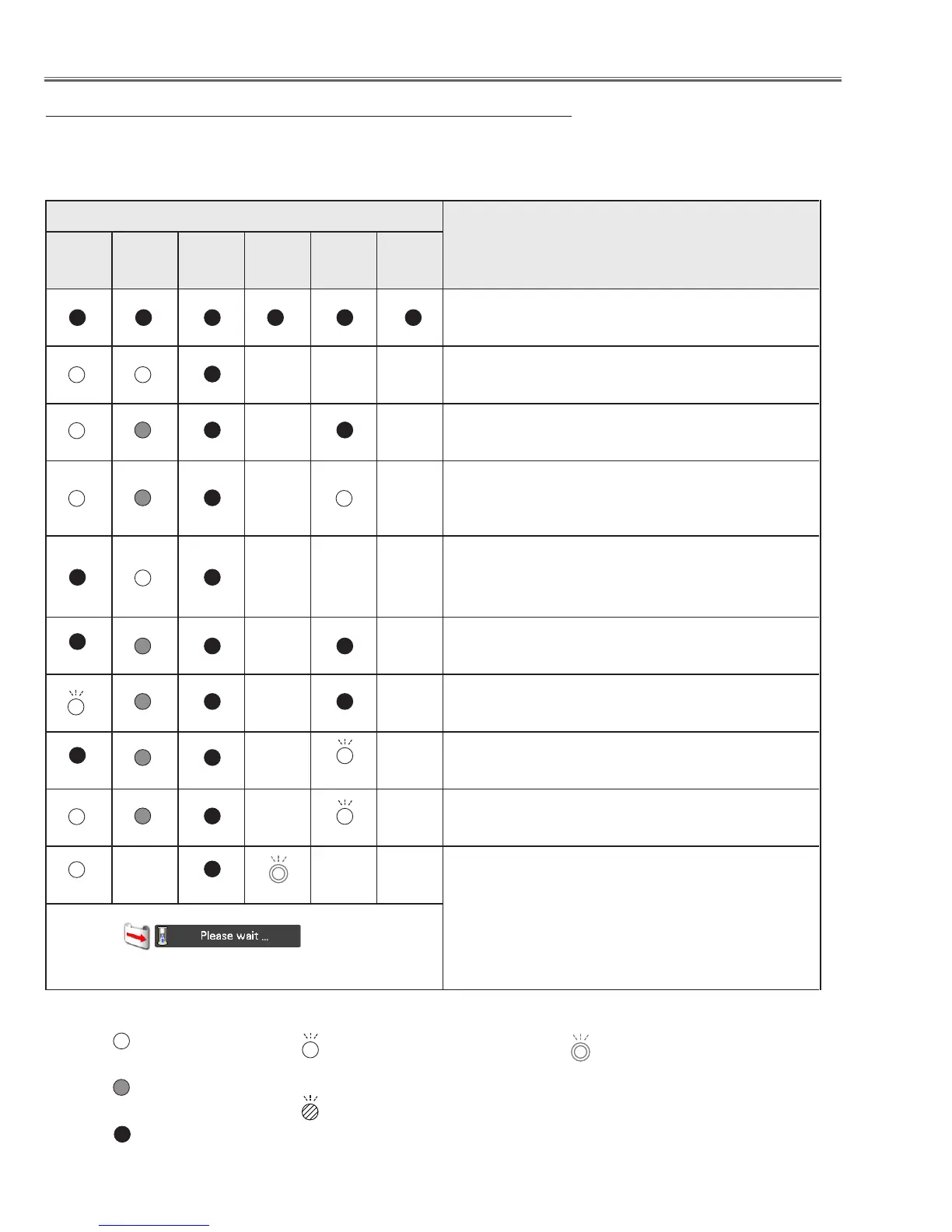

Indicators and Projector Condition
Check the indicators for the projector condition.
The projector is operating normally.
• • • on
• • • off
• • • blinking at the normal rate
(approx. 1 second ON,
1 second OFF)
• • • dim
• • • blinking slow
(approx. 2 seconds ON, 2
seconds OFF)
• • • blinking fast (approx. 0.5
seconds ON, 0.5 sec-
onds OFF)
Indicators
Projector Condition
POWER
green
LAMP
red
WARNING
TEMP.
red
WARNING
FILTER
orange
SHUTTER
blue
LAMP 1/2
REP.
orange
The projector is off. (The main On/Off switch is OFF
position or the AC power cord is unplugged.)
The projector is in stand-by mode. Press the ON/
STAND-BY button to turn on the projector.
The projector is operating normally.
(The Shutter is open)
The projector is operating normally.
(The Shutter is closed)
The projector is preparing for stand-by or the projec-
tion lamp is being cooled down. The projector can-
not be turned on until cooling is completed and the
POWER indicator lights green.
The projection lamp is being cooled down in the
Power management mode.
The projector is in the Power management mode.
The projection lamp is being cooled down in the
Shutter management mode.
The projector is in the Shutter management mode.
Press the ON/STAND-BY button to turn on the pro-
jector.
The filter is scrolled using the FILTER button on the
remote control or the Filter control function in the set-
ting menu. When the filter is being scrolled, the Filter
replacement icon and “Please wait...” message (Fig.
1) appear on the screen.
✽
✽
✽
✽
Fig.1 Filter replacement icon and “Please wait...”
✽
✽
✽
✽
✽ ✽
✽
✽
✽
✽
✽
✽
✽
✽
✽
✽
✽
• • • Differs according to conditions.
✽

Sanyo PLC HF10000L Specifications

General

Matrix size	1.65 \
Matrix type	3-panel (p-Si TFT active)
Projection distance	- m
Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 120 kHz
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	- \
Projector native resolution	-
Keystone correction, horizontal	30 °
Interface	USB
Power LED	Yes
RS-232 ports	2
Dimensions (WxDxH)	530 x 757 x 268 mm
Focus	Auto
Focal length range	- mm
Noise level	43 dB
Noise level (economic mode)	39 dB
Dot clock scanning frequency	230 MHz
Lamp power	380 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Wi-Fi	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Product color	Gray
Power consumption (standby)	18 W
Power consumption (typical)	955 W
Cables included	AC, RS-232
