Disassembly requires a 2.0mm or 2.5mm hex wrench and a screwdriver.
Optical Parts Disassembly
1 LCD panel/prism assy removal

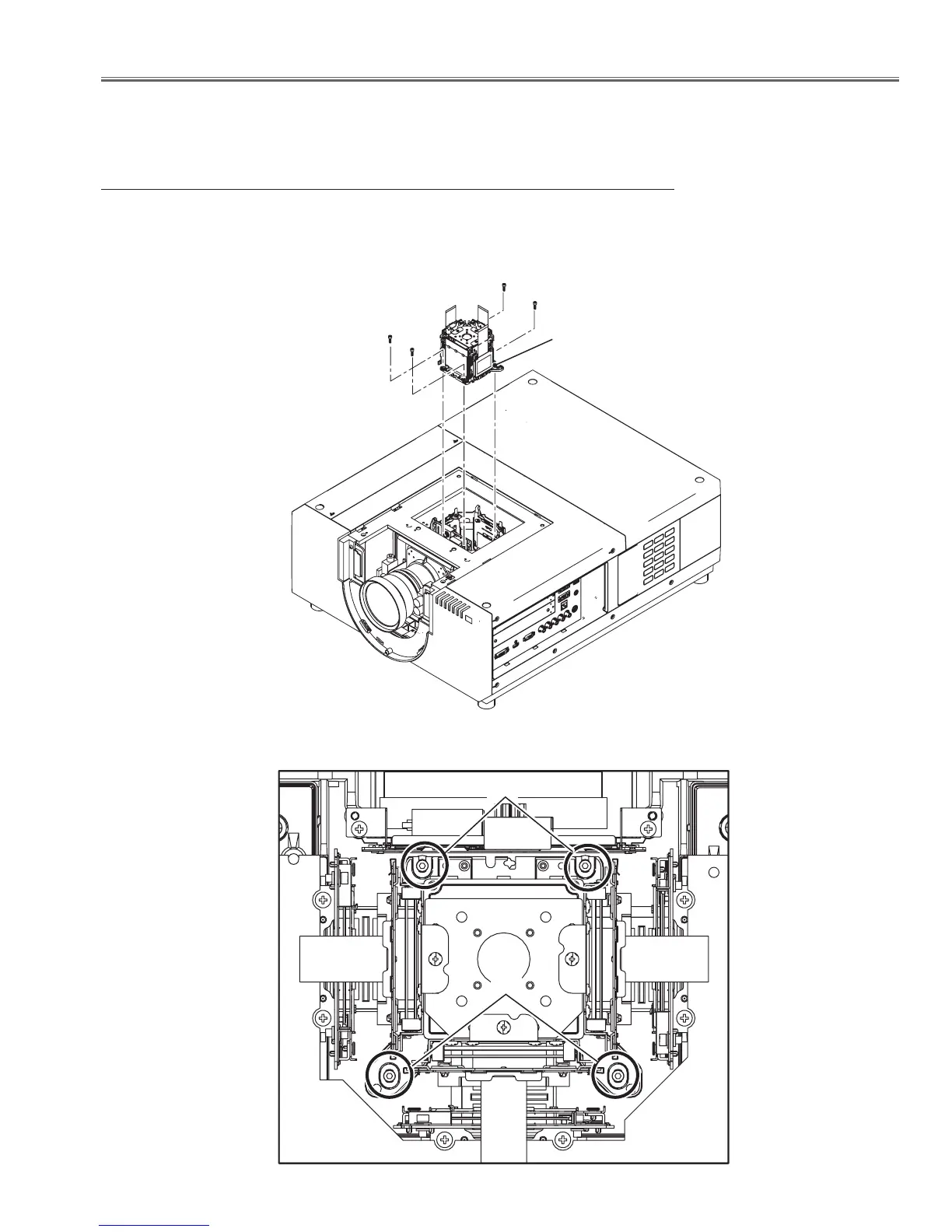

Remove the duct cover, and remove 4 screws-A(M2.5x8) and remove the LCD pan-
el/prism assy upward off.
A
A
A
A
A
A
LCD panel/prism
assembly
LCD panel/prism
top view
