-32-
Mechanical Disassembly

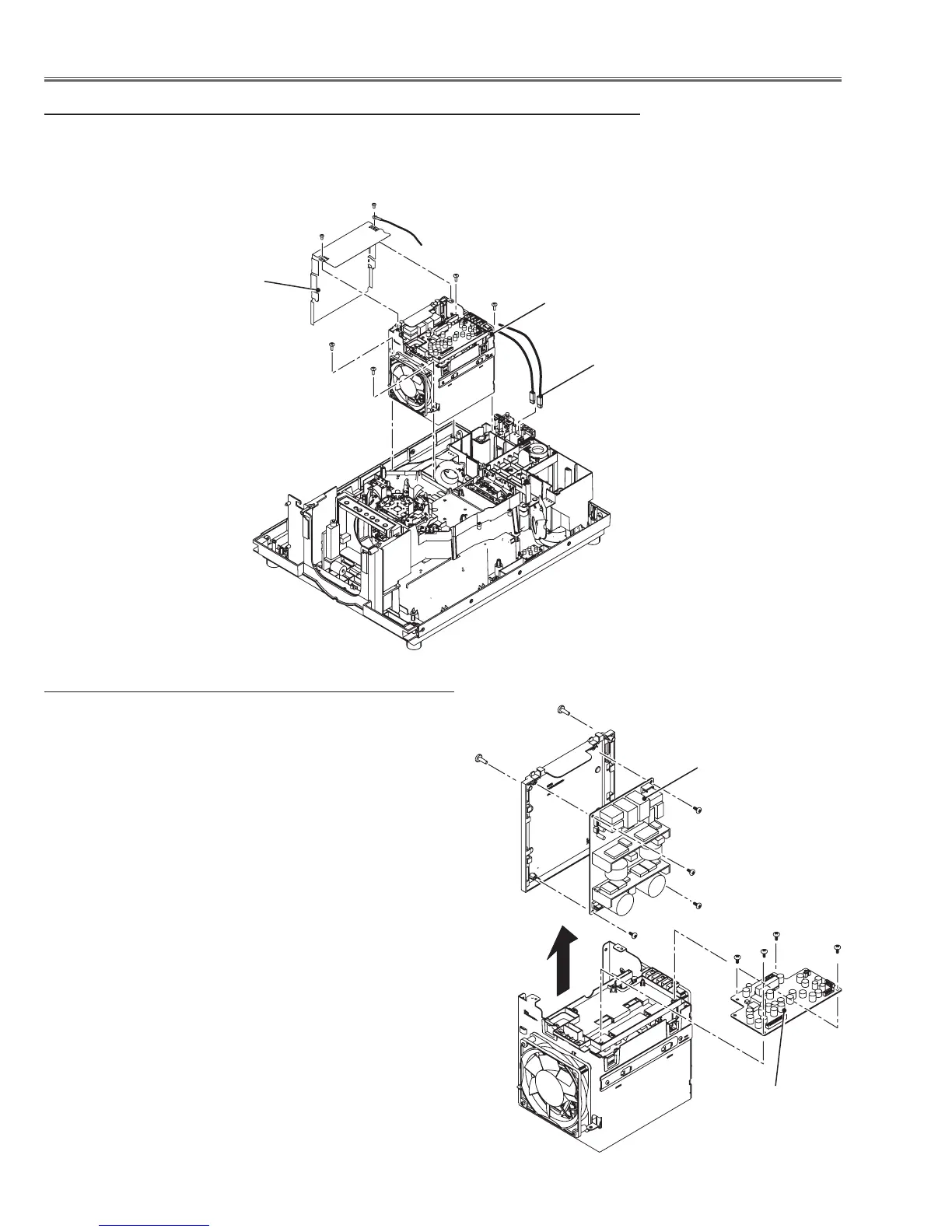

9-1 Power box assy removal-1
1 Remove 2 screws-A(M3x6) and remove power box cover.
2 Remove the sockets on the noise filter.
3 Remove 4 screws-B(T3x10) and pull the power box assy upward off.
A
Power box assy
A
B
B
B
9-2 Power box assy disassembly-1
1 Remove 4 screws-A(T3x6) and remove the power(DC)
board.
2 Remove 2 screws-B(T4x10) and pull the PFC board assy
upward off.
3 Remove 4 screws-C(T3x6) and remove the PFC board.
Power box cover
A
C
A
A
A
B
B
C
C
C
PFC board
Power(DC) board
Socket
B
