-31-
Mechanical Disassembly

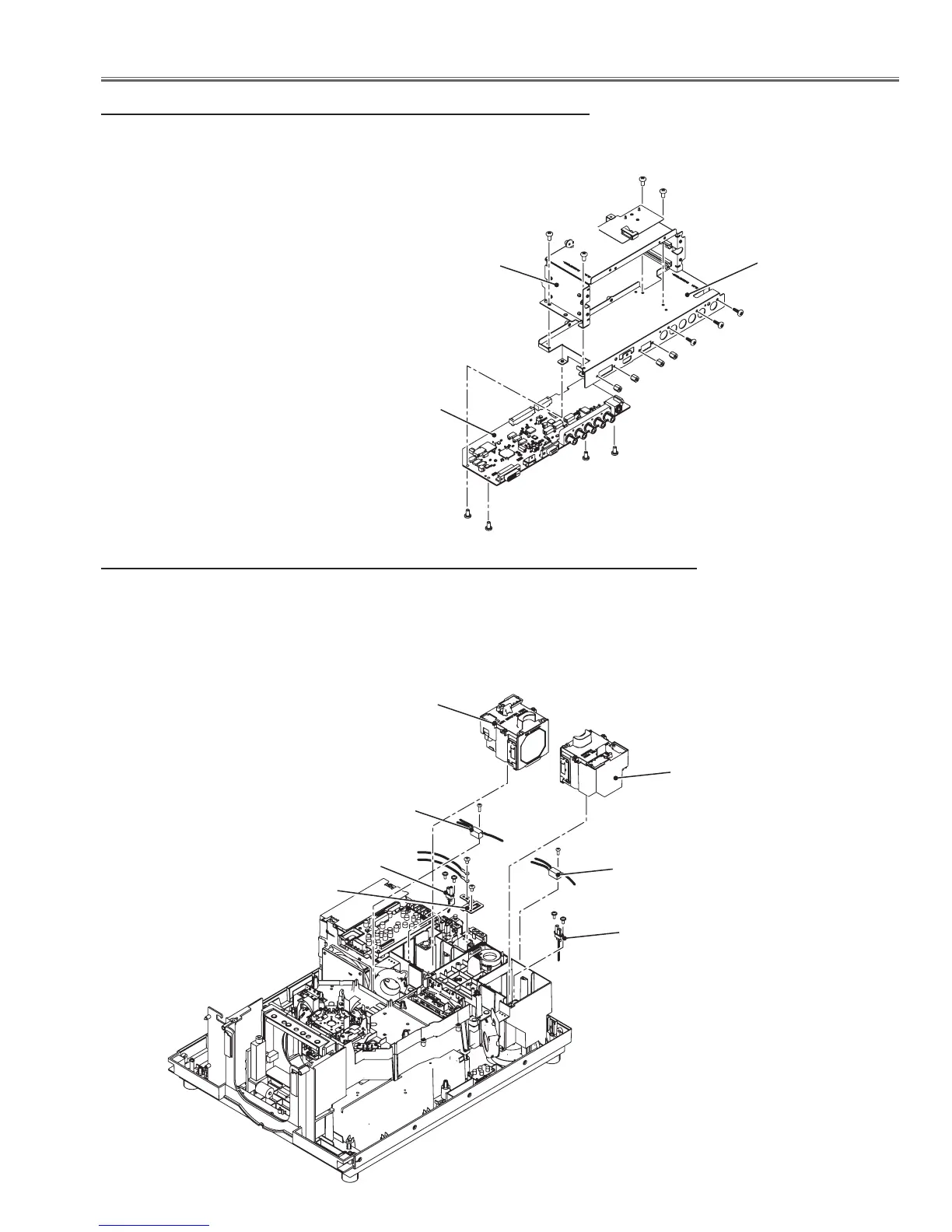

8-3 AV board assy disassembly
1 Remove 4 screws-A(M3x8) to remove the slot board holder.
2 Remove 4 screws-B(M3x6), 3 screws-C(T3x8) and 4 hex screws-D
and then remove the AV board holder and the AV board.
B
B
B
B
C
C
C
D
D
AV board
Slot board
holder
AV board
holder
9 Power box assy removal
1 Loosen each 2 screws on the lamp house and remove lamp houses.
2 Remove 1 screws-A(M3x10) and remove lamp1 ballast trigger, and remove 1 screw-
B(T3x8) and remove lamp2 ballast trigger.
3 Remove 2 screws-C(M3x6, M4x6) and remove the AC holder support and ground-
ing leads.
4 Remove each 2 screws-D(M3x8) and remove the lamp sockets.
B
A
lamp1 ballast
trigger
Lamp1
Lamp2
Lamp2 ballast
trigger
Lamp1 socket
Lamp2 socket
AC holder support
D
D
C
C
A
A
A
A
