Optical Adjustments
Contrast adjustment
Mirror-R
adjustment
Integrator adjust-
ment-1 and 2
WARNING : USE UV RADIATION EYE AND SKIN
PROTECTION DURING SERVICING.
CAUTION:
To prevent suffer of UV radiation, those adjustments
must be completed within 25 minutes.

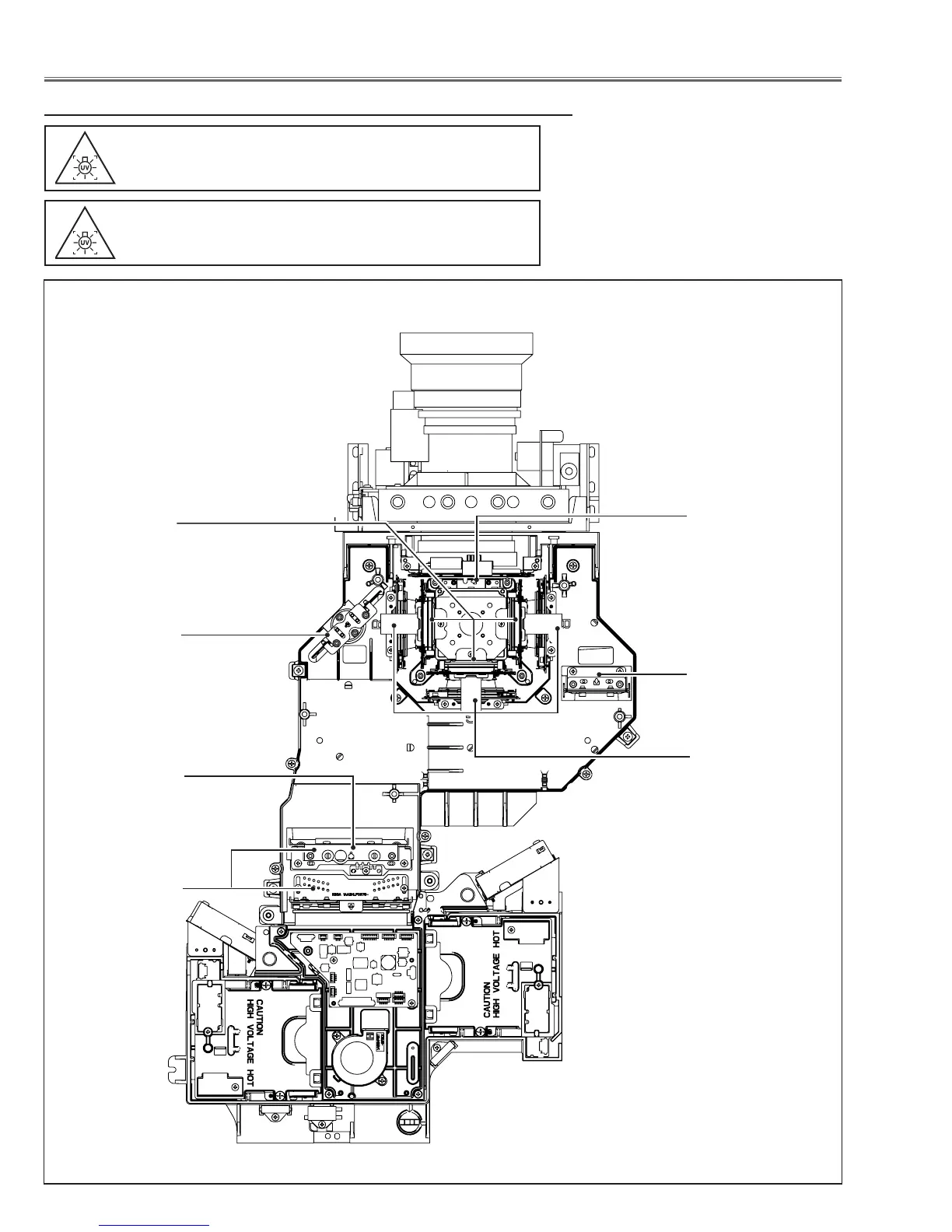

Optical adjustment location
PBS adjustment
Relay lens adjustment
Back focus adjust-
ment
Convergence
adjustment
