-34-
Mechanical Disassembly

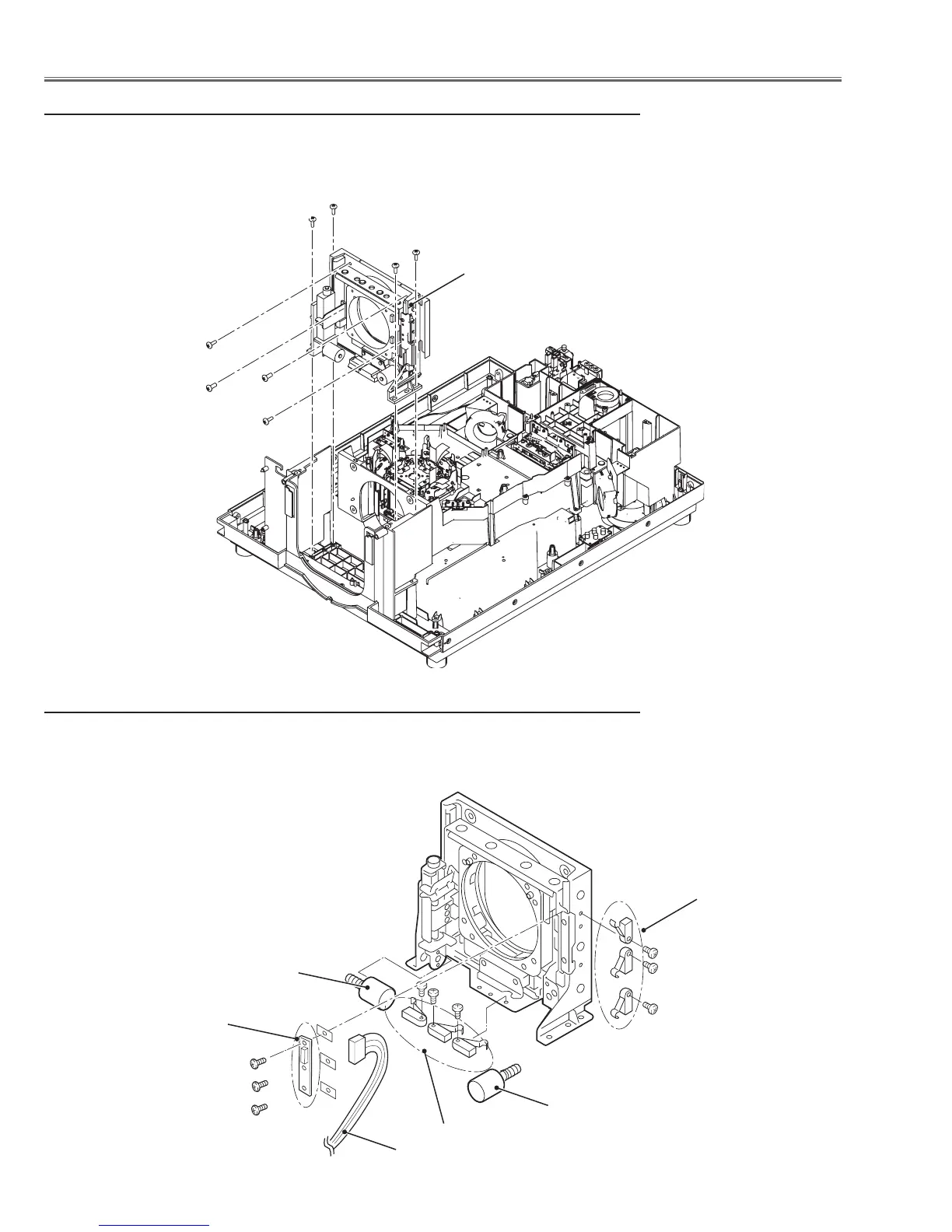

10 Lens shift assy removal
(Before disassembling, make sure the lens should be adjusted to the center position.)
1 Remove 4 screws-A(T4x14) and 4 screws-B(M4x12) and remove the lens shift assy
upward off.
Lens shift assy
A
A
A
A
B
B
B
B
Sensor Switch Y
Sensor Switch X
Lens Shift Motor (L/R)
Lens Shift Motor (U/D)
Cord
Lens Base Net Board
10-1 Lens shift assy disassembly
1 Remove the motors.
2 Remove the lens position detection switches.
3 Remove the Lens Base Net board.
