Mechanical Disassembly

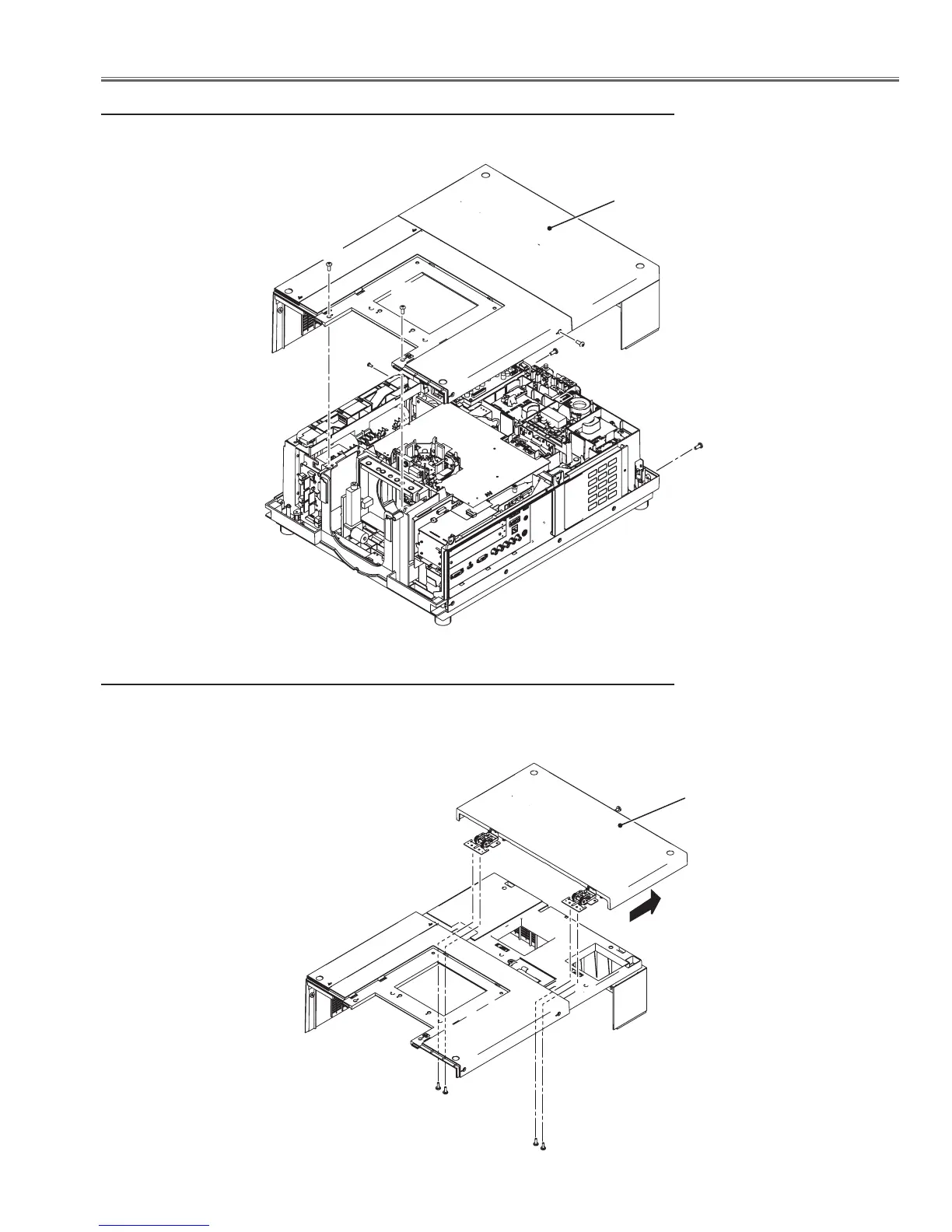

3 Cabinet top removal
1 Remove 2 screws A (M4x10) 4 screws-B (M4x10) and then remove the cabinet
top assy upward.
3-1 Lamp cover removal
1 Loosen 1-screw-A on the lamp cover and pull the cover backward.
2 Remove each 2 screws-B (T4x10) on the hinges and then remove the lamp cov-
er.
Cabinet top assy
Lamp cover
A
A
B
B
B
B
B
B
A
