-26-

Mechanical Disassembly

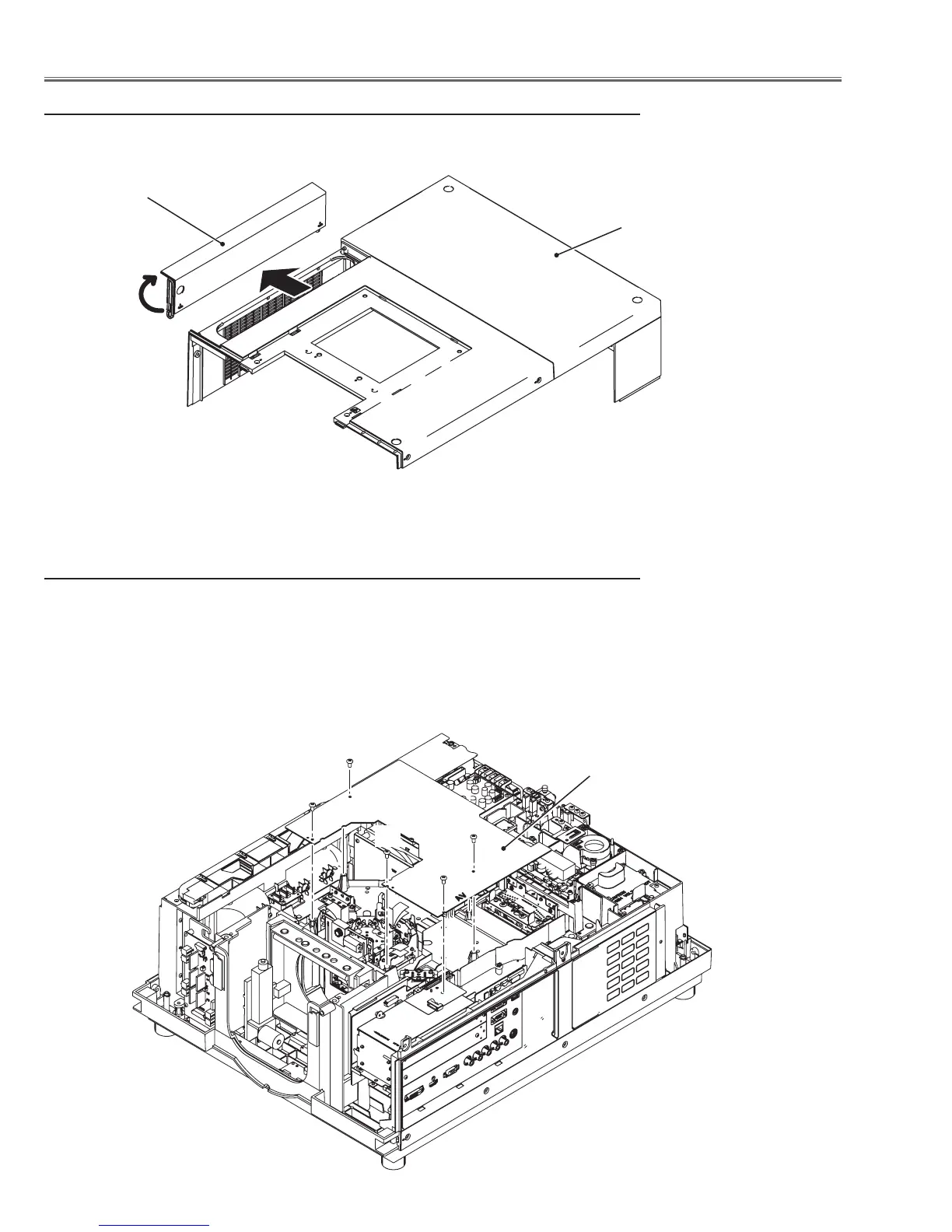

3-2 Filter cover removal

1 Slide the filter cover and remove it as shown in the figure.

4 Main board removal

1 Remove 5 screws-A (M3x6) and remove the main board.

Cabinet top assy

Filter cover

Main board

A

A

A

A

A
