Sanyo PLC HF10000L Service Manual

-63-
Optical Adjustment
1 Loosen 2 screws-A of Prism/LCD panel unit.
CAUTION: When loosening the screws-A, do not touch the other mechanical part or give it shock.
2 Fully loosen 2 screws-B on the Adjustment Tool.
3 Fully slide the Adjustment Tool part-A into the LCD Panel Bracket hole.
4 Mount Adjustment Tool on the Prism/LCD panel unit with 2 screws-C attached with Adjustment Tool along the
guide on top of Prism Ass’y.
CAUTION: Do not use other kind of screws for mounting, otherwise Prism/LCD panel unit may be damaged.
5 Tighten screws-B and hold the LCD Panel Bracket.

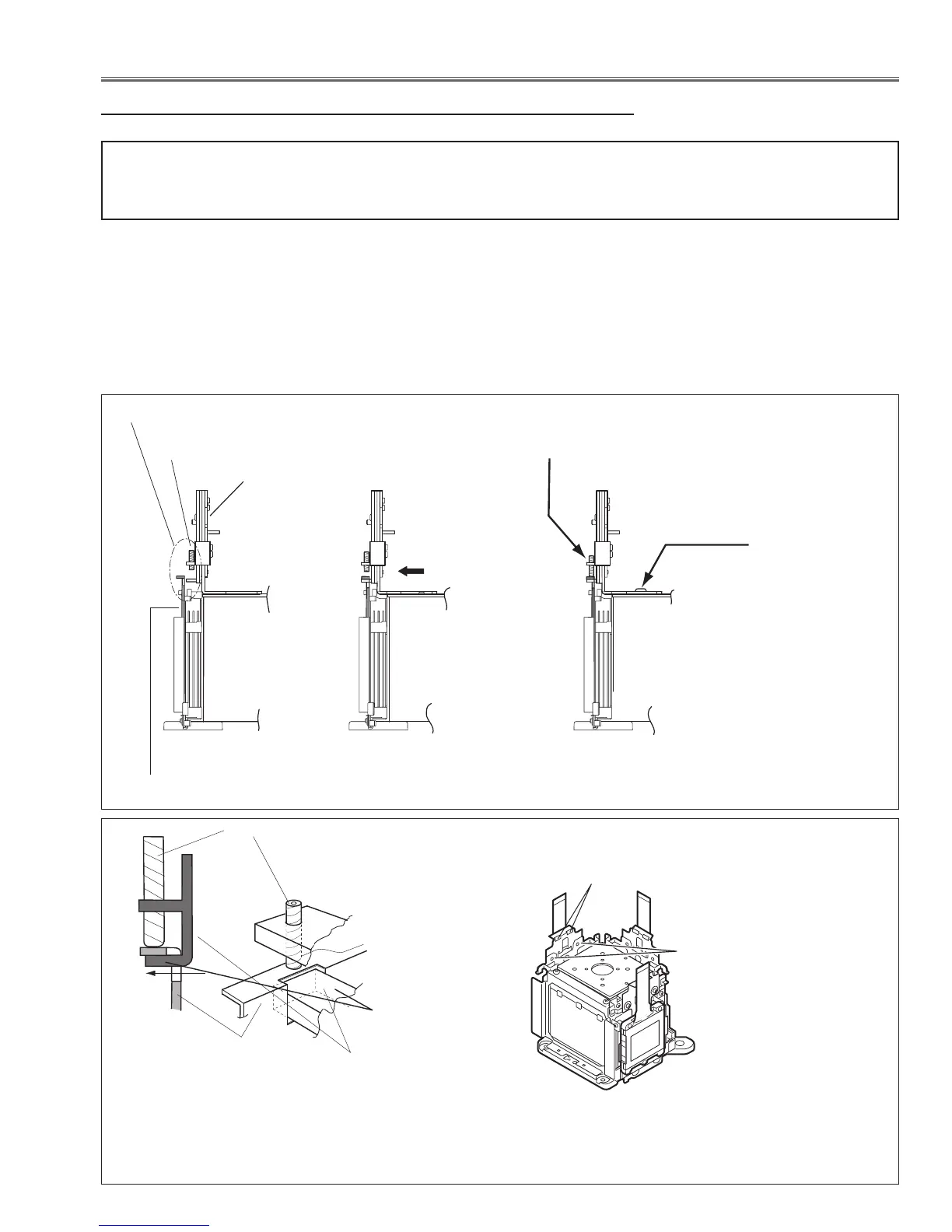

Adjustment tool installation
Note; Before mounting the Adjustment Tool, set adjustment screws of Adjustment Tool in center of the adjustment
range.
Refer to Screw Setting.
Adjustmen
t
Tool
Screw-B
LCD Panel Bracket
Part-A
Screw-A
LCD Panel
Bracket hole
Screw-B
Screw-C
Adjustment Tool
Loosen 2 Screws-B before installation.
LCD Panel bracket
Prism/LCD Panel
unit
Tighten 2 Screws-B and
hold the LCD Panel bracket
Tighten 2 Screws-C and
hold the Prism/LCD Panel
unit
Slide the
Adjustment Tool.
Insert Adjustment Tool Leg (2 Legs) into LCD
Panel Bracket holes, and tighten screws-B and
hold LCD Panel Bracket with Adjustment Tool.
Step 2 Step 3 Step 4
Prism/LCD Panel unit
