Sanyo PLC HF10000L Service Manual

-7-

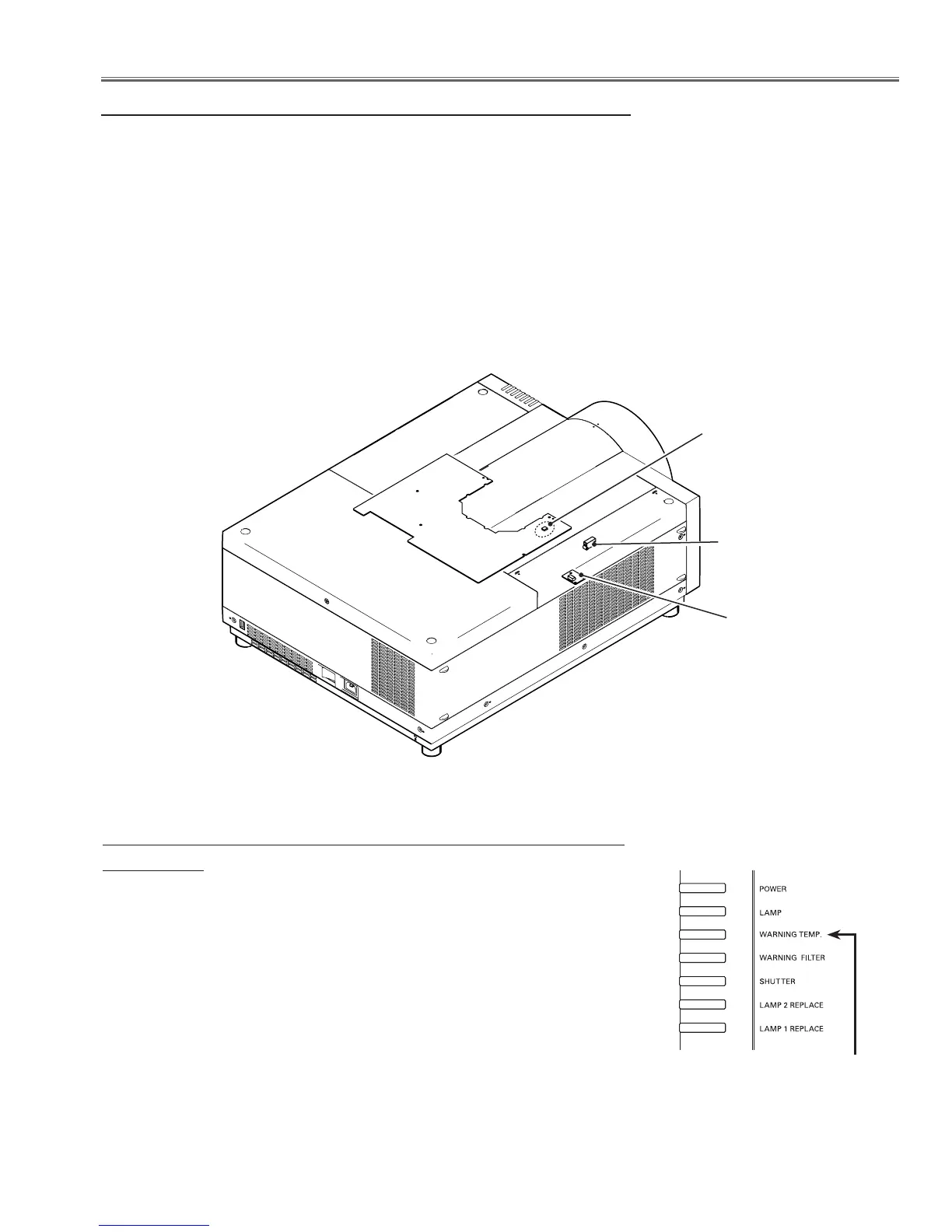

The projector provides 2 temperature sensor ICs, 1 sensor on the Main board and 1 sensor on the Sensor board,
and 1 wind sensor on the intake duct. The sensor ICs monitor surrounding temperature of the panels/prism, and
surrounding temperature of the intake duct, and the wind sensor monitors airflow passed through the air filter in the
intake duct.
- Temperature sensor (IC8856) on the Main board for monitoring the surrounding temperature of B-panel.
- Temperature sensor (IC8811) on the Ex Temp board for monitoring the surrounding temperature of the intake
duct.
- Wind sensor (S901) on the filter box.
Circuit Protections
IC8856
(Behind)
Temperature sensors, wind sensors
S901
Wind sensor
IC8811
The projector is shut down and the WARNING TEMP. indicator is
blinking red.
When the temperature inside the projector reaches a certain level, the projec-
tor will be automatically shut down to protect the inside of the projector. The
LAMP indicator turns red brighter and the WARNING TEMP indicator blinks
while the projector is being cooled down. When the projector has cooled
down enough (to its normal operating temperature), it can be turned on again
by pressing the ON/STAND-BY button.
✔Note:
• The WARNING TEMP. indicator continues to blink even after the temperature
inside the projector returns to normal. When the projector is turned on again, the
WARNING TEMP. indicator stops blinking.
Indicators
WARNING TEMP.
blinking red

Sanyo PLC HF10000L Specifications

General

Matrix size	1.65 \
Matrix type	3-panel (p-Si TFT active)
Projection distance	- m
Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 120 kHz
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	- \
Projector native resolution	-
Keystone correction, horizontal	30 °
Interface	USB
Power LED	Yes
RS-232 ports	2
Dimensions (WxDxH)	530 x 757 x 268 mm
Focus	Auto
Focal length range	- mm
Noise level	43 dB
Noise level (economic mode)	39 dB
Dot clock scanning frequency	230 MHz
Lamp power	380 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Wi-Fi	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Product color	Gray
Power consumption (standby)	18 W
Power consumption (typical)	955 W
Cables included	AC, RS-232

Weight and Dimensions

Weight	27600 g
