Sanyo PLC HF10000L Service Manual

-164-
Troubleshooting
CPU : ---- Lamp monitor operation ----
■
The CPU performs an input check by the lamp monitor
pin (LAMP_RX).
■
When the "H" signal continues 1 second or more con-
tinuously, the CPU judges the state to be abnormal.
■
When it has detected abnormal condition, the CPU
turns off a projector compulsorily. And the CPU sets up
the cooling time for 90 seconds.
■
The projector cannot be turned on during a cooling
time.
NOTE :
■ Lamp Cover Switch
Make sure that the lamp cover is mounted correctly. If not or the lamp cover
removed, the lamp does not light for safety.
Check the boss of the lamp cover and the lamp cover switch (SW902).
SW902 -- open : Abnormality
■Temperature Switches
When the internal temperature near the lamps reaches near 100ºC, the
temperature switches open and 12V is not supplied to PFC board, also the
Power fail signal "PF_TH" bocomes "Low" to stop operating the power supply.
SW903 - SW904 -- open : Abnormality
■
Power (green) LED indicates lamp monitor operation
LED off: Lamp is being cooled.
LED on: Lamp is being lit or already cooled down.
NOTE :
■ At first, the high-voltage pulse (about 8KVp-p) is generated between the lamp
electrodes to generate glow discharge. Then dielectric breakdown occurs,
finally glow discharge comes to arc discharge.
■ After projector turned on, 30 seconds are required until the light output
stabilizes.
■ After the projector is turned off, the cooling fans operate for 90 seconds to cool
down the lamp and reduce gas pressure inside the lamp.
K6D
POWER(AC)
K6C
LAMP1
PFC
BALLAST1
PFC_SW3_EX
PFC_SW4_EX
BALAST_SW4_EX
BALAST_SW3_EX
LAMP4_RX
LAMP3_TX_EX
K16A
CN1B
CN2B
CN3B
LAMP2
BALLAST2
CN1C
CN2C
CN3C
K16B
K16C
POWER(DC)
MAIN
LAMP FANNET
K36A
K36B
K47F
K77L
K88A
K17A
K66E
K66B K47D
IC4781
14
13
11
12
17
182
3
8
9
7
6
LAMP3_RX
LAMP4_TX_EX
PFC_SW3
PFC_SW4
BALAST_SW4
BALAST_SW3
LAMP3_TX
LAMP4_TX
IC6711
IC1701
LAMP ID2
LAMP ID2
IC5201
LVDS
DIGITAL SW
<XC3S200A>
IC301
SCALER
<IP00C811>
K77M
K77N
K88B,K88C,K88D
K16E
K47E
LAMP_ID2
LAMP_ID
LAMP_ID_BUSY
LAMP_ID_DATA
LAMP_ID_CLK
LAMP_ID 1
PFC1_SW PFC2_SW
12V
AC
F901
FUSE
SW901
MAINS
SWITCH
K6A
LAMP ID
LAMP ID
IC3401
YE & COLOR
MANAGEMENT
<EP3C80F484>
PFC_SWPFC_SW
PFC_SW
IC4751
POWER_ON_SW
POWER_ON_SW
12V
S12V
PF_TH
SW904
LAMP2
THERMAL SW
SW903
LAMP1
THERMAL SW
SW902
LAMP COVER
SW

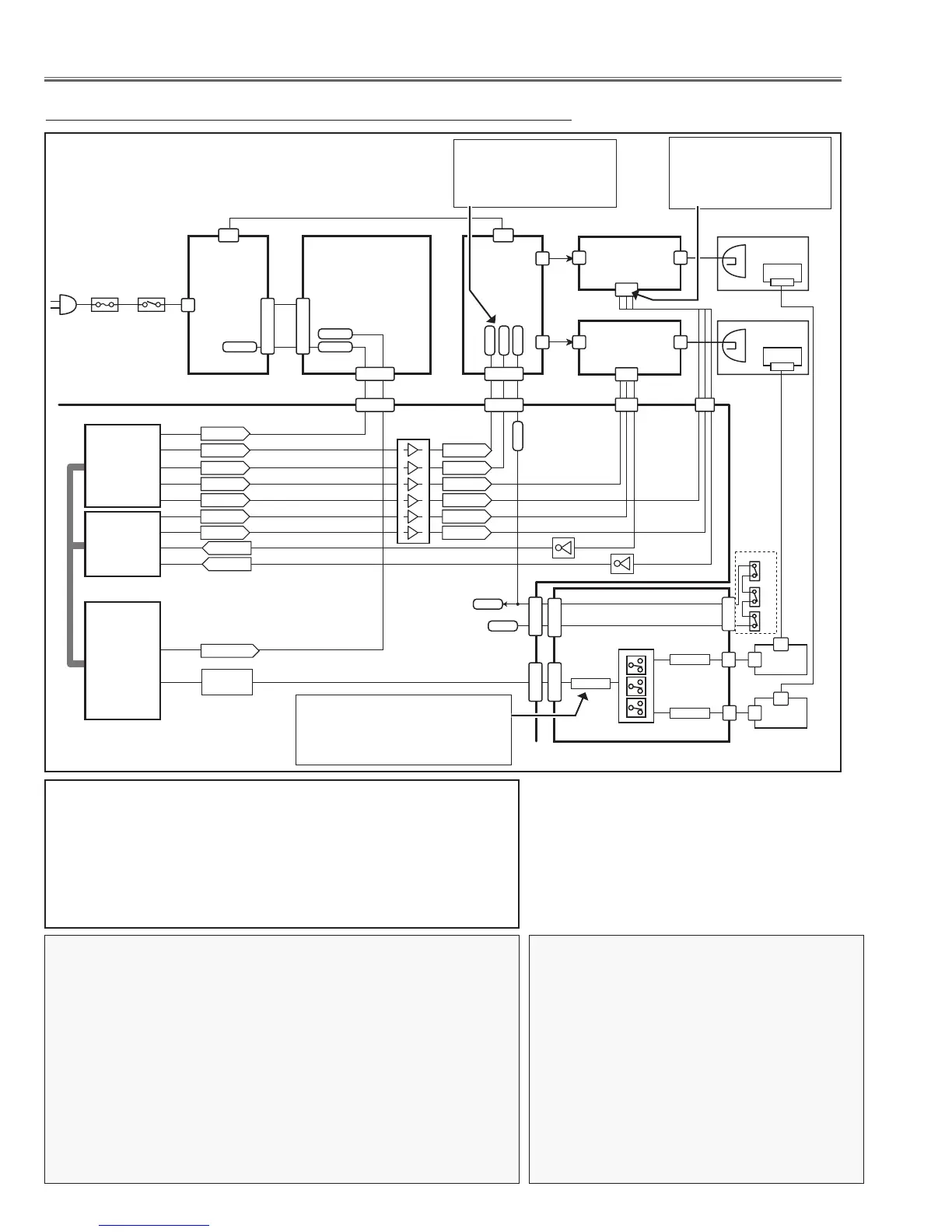

■The Lamp Driving Circuit
Lamp Abnormality
If the Lamp ID board is not mounted
securely, the warning message will
appear on the screen and some func-
tions may be disabled.
Check that the lamp on/off
signals (BALAST_SW1,
BALAST_SW2) are correct.
Lamp-On: 3V, Off: 5V
Check that the lamp power
drive signals (PFC1_SW,
PFC2_SW) are correct.
Power-On: H

Sanyo PLC HF10000L Specifications

General

Matrix size	1.65 \
Matrix type	3-panel (p-Si TFT active)
Projection distance	- m
Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 120 kHz
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	- \
Projector native resolution	-
Keystone correction, horizontal	30 °
Interface	USB
Power LED	Yes
RS-232 ports	2
Dimensions (WxDxH)	530 x 757 x 268 mm
Focus	Auto
Focal length range	- mm
Noise level	43 dB
Noise level (economic mode)	39 dB
Dot clock scanning frequency	230 MHz
Lamp power	380 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Wi-Fi	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Product color	Gray
Power consumption (standby)	18 W
Power consumption (typical)	955 W
Cables included	AC, RS-232

Weight and Dimensions

Weight	27600 g
