Mechanical Disassembly

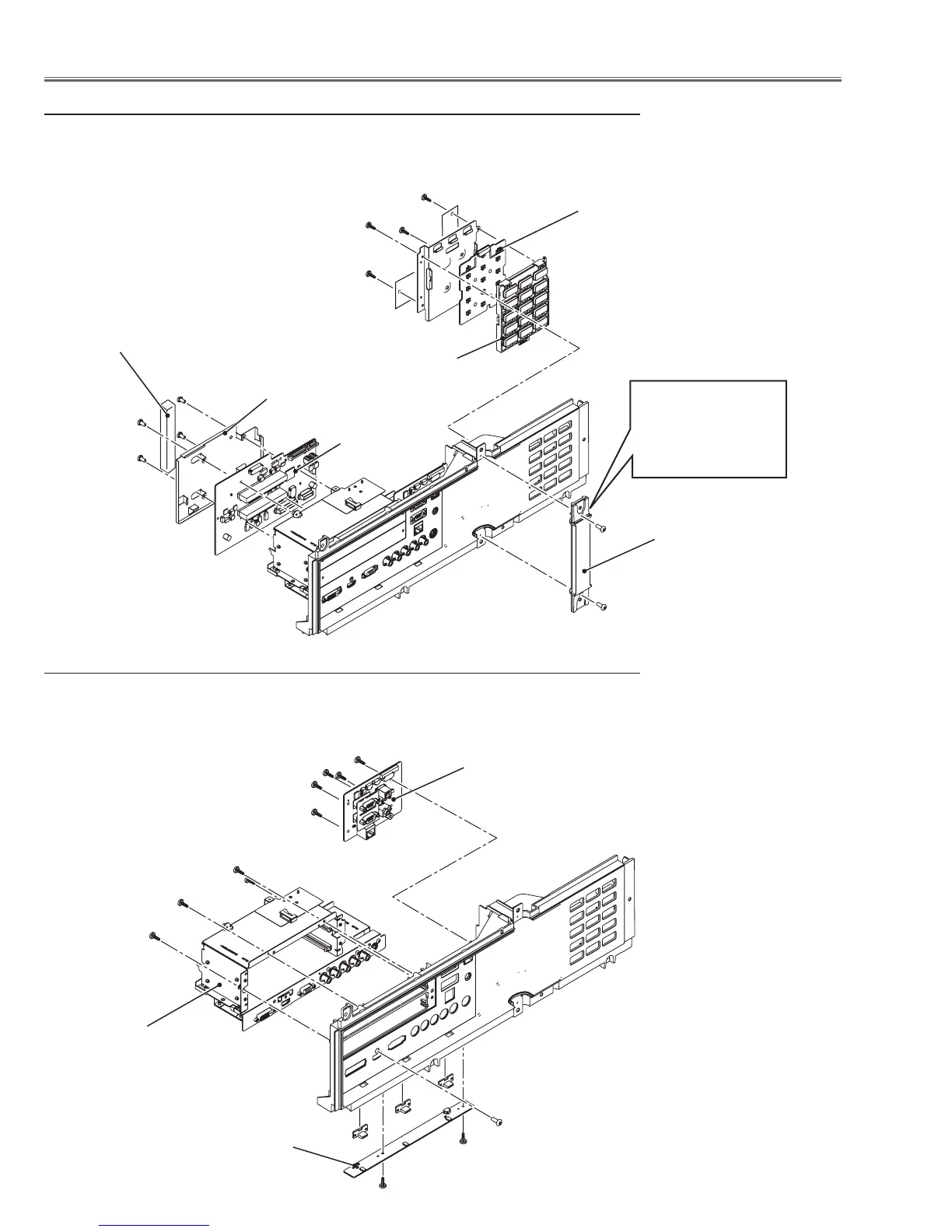

8-1 Side panel assy disassembly-1
1 Remove 4 screws-A(T3x8) and remove the control board and button assy.
2 Remove 2 screws-B(M3x8) and remove handle.
3 Remove 4 screws-C(M3x6) and remove shield plate and gasket. Pull out the mother
board.
B
B
C
C
C
Control board
A
A
A
C
Handle
Mother board
Shield plate
Gasket
When mounting the
handle, mount it as
the sticking out parts
comes to the upper
side.
8-2 Side panel assy disassembly-2
1 Remove 4 screws-A(T3x8) and 1 screw-B(M3x6) and remove the AV board assy.
2 Remove 5 screws-C(T3x8) and remove RS-2332C board.
3 Remove 2 screws-D(T3x8) and remove LED light board.
A
A
B
C
C
C
RS-232C board
AV board assy
Key button
A
A
A
LED light board
C
D
D

Sanyo PLC HF10000L Specifications

General

Matrix size	1.65 \
Matrix type	3-panel (p-Si TFT active)
Projection distance	- m
Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 120 kHz
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	- \
Projector native resolution	-
Keystone correction, horizontal	30 °
Interface	USB
Power LED	Yes
RS-232 ports	2
Dimensions (WxDxH)	530 x 757 x 268 mm
Focus	Auto
Focal length range	- mm
Noise level	43 dB
Noise level (economic mode)	39 dB
Dot clock scanning frequency	230 MHz
Lamp power	380 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Wi-Fi	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Product color	Gray
Power consumption (standby)	18 W
Power consumption (typical)	955 W
Cables included	AC, RS-232

Weight and Dimensions

Weight	27600 g
