-50-
Optical Parts Disassembly

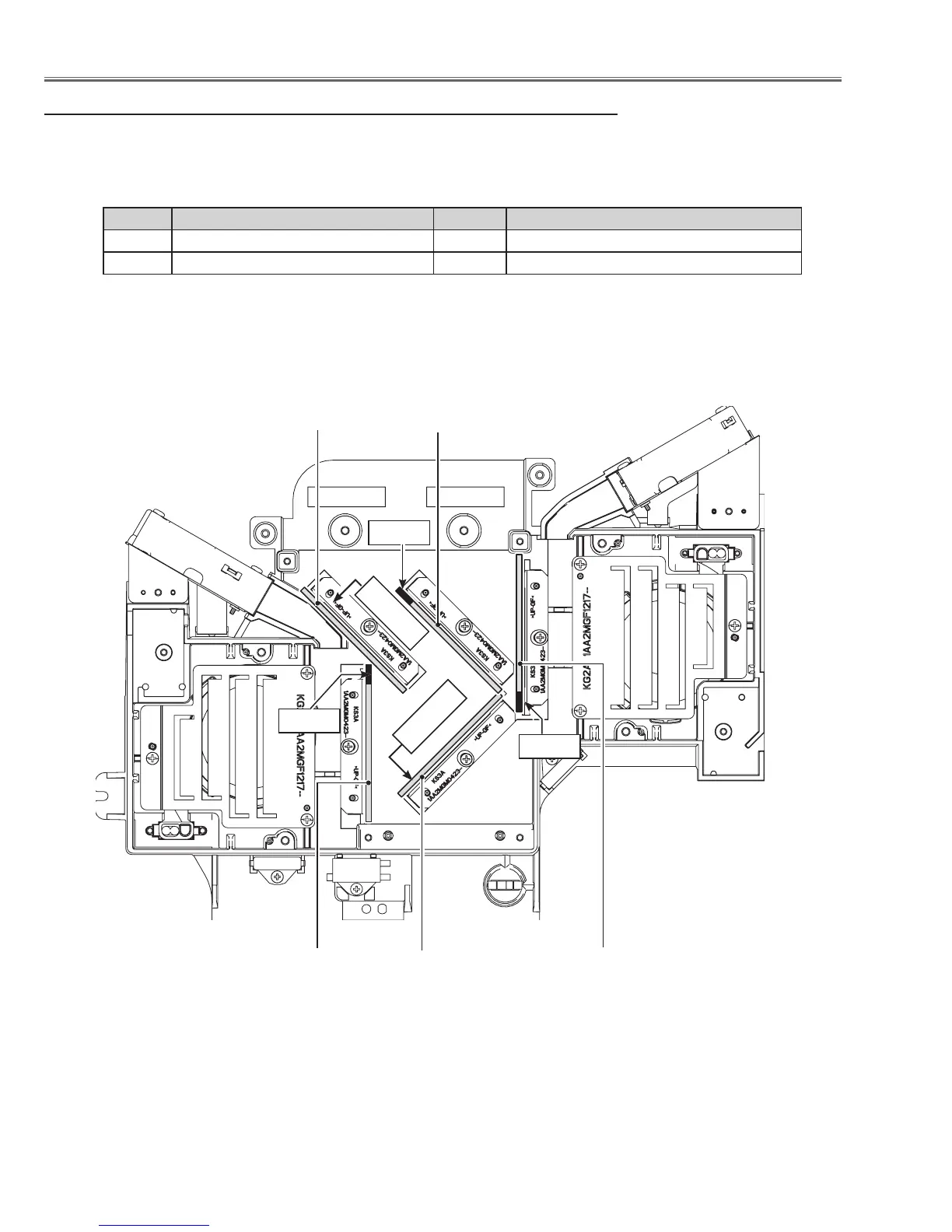

9-2 Optical parts locations in the optical lamp unit
When mounting the optical parts in the optical lamp unit, the parts must be mounted
in the specified location and direction as shown in the figure below.
No. Parts Name No. Parts Name
1 OPTICAL FILTER(UV/IR) 3 MIRROR(W-COLD)
2 MIRROR(HALF)
1
1
2
3
3
Cutting
Cutting
Cutting
Mirror side
Mirror side
To Next Page
