Mechanical Disassembly
Mechanical disassembly

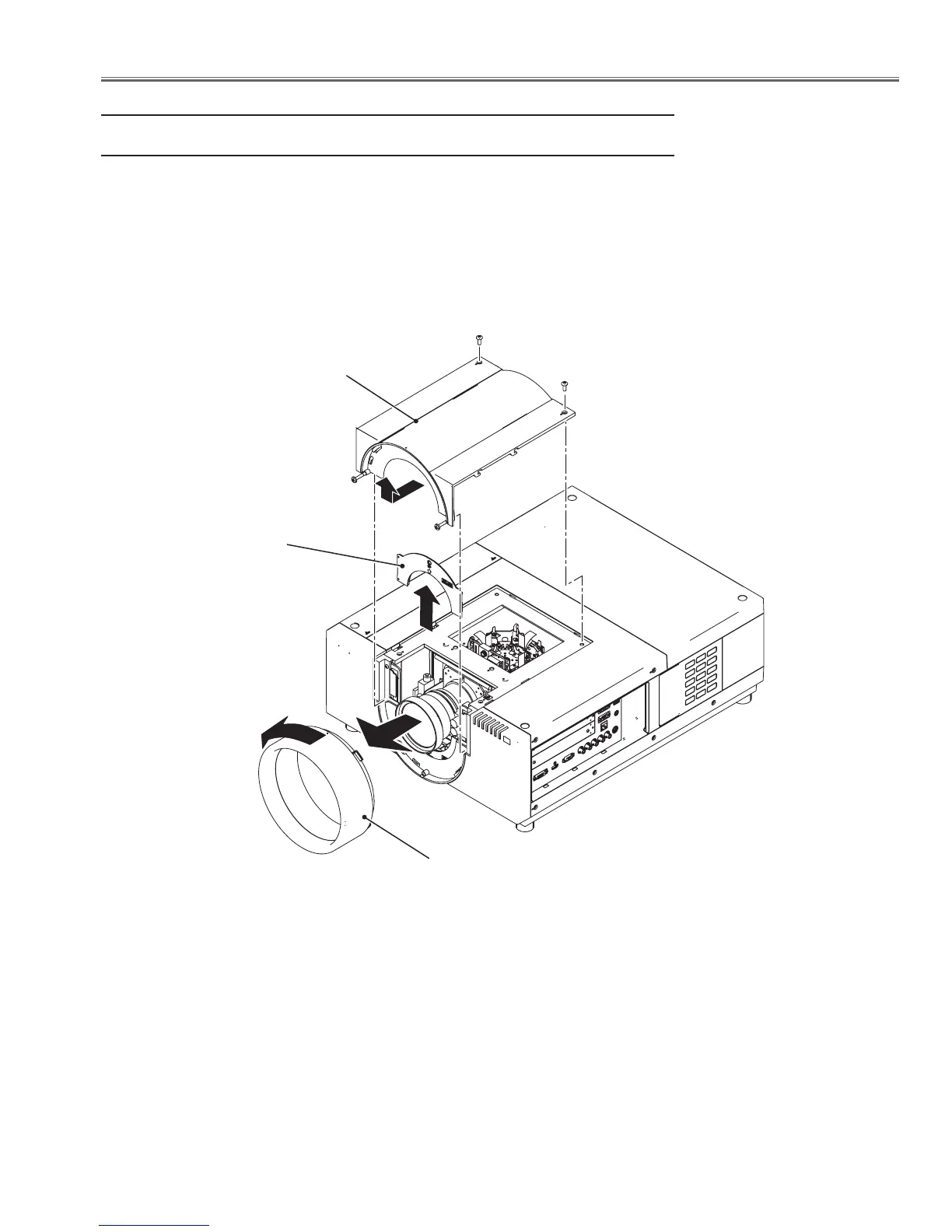

Cabinet front cover-A
1 Cabinet front cover removal
1 Turn the Cabinet Front Ring anti-clockwise and pull it forward to remove.
2 Remove 2 screws-A (M4x10) and loosen 2 screws-B, and pull the cabinet front
cover-A forward.
3 Remove the projection Lens Assy. See item "Lens Mounting" for further informa-
tion.
Cabinet front ring
A
A
B
B
Light block plate
upper
