Sanyo PLC HF10000L Service Manual

-21-
Lens Mounting
- 7 -
Some parts are not used for installation or replacement. Keep these parts for later use. Note: Figures in this manual may differ from the actual product.

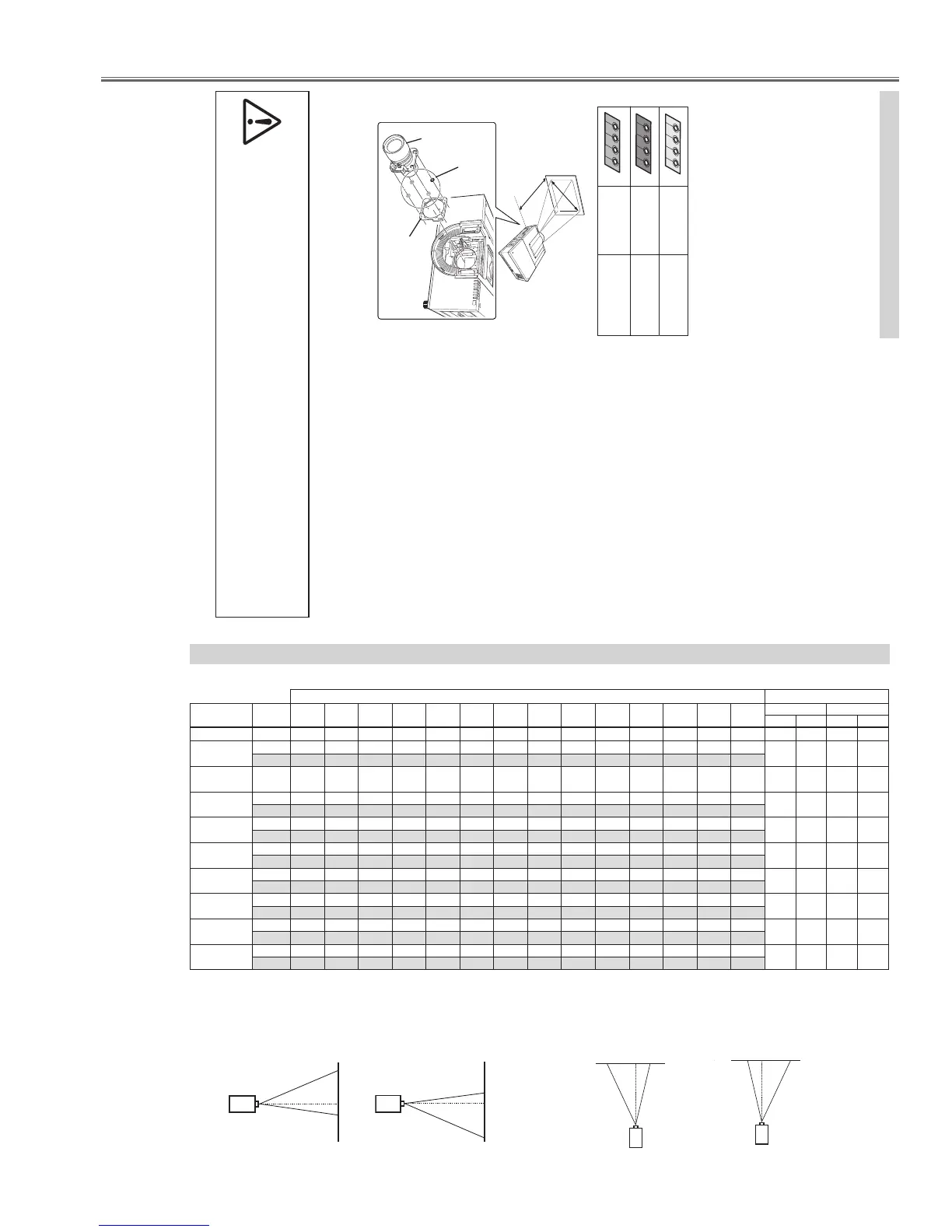

FOCUS CORRECTION
BE SURE TO CHECK FOR SAFETY
After installing or replacing the lens, be sure to check the following for safety. 1. Check the lens is securely fixed with the screws. 2. Check no wiring is damaged or tangled on the gear of the lens motor or the other
mechanical parts.
3. Check no part is missing, and no mounting part is loose.
When the lens is attached to the projector and images are being projected onto the screen, the peripheral focus may be out of focus in some localized areas. If this happens, insert the one, of three sizes of spacers, in between the Lens Attachment and the lens to adjust the focus. Inserting the Spacer corrects the distance on the Lens Adjustment and improves the diagonal focus. The corrected distance is determined by the thickness of the used spacers. As a guide, the distance is adjusted by approximately 30 mm for each 0.1-mm thickness of the spacers. There are three types of spacers provided, and there are four of each spacer type. Use these spacers to correct the distance as required.
Spacer "1" Color; Clear Thickness; 0.1 mm
60-inch projection
Screen
A
B C
D
B'
A'
D'
C'
Distance
Lens
Lens Attachment
Spacer "2" Color; Black Thickness; 0.2 mm Spacer "3" Color; Cream Thickness; 0.3 mm
Correction distance 30 mm/for 60-inch projection Correction distance 60 mm/for 60-inch projection Correction distance 90 mm/for 60-inch projection
Spacer
- 8 -
NOTE: Following table shows approximate measurement. Actual measurement depends on lens and projectors.
SPECIFICATIONS (Throw distance and screen size, lens shift ratio) for PLC-HF10000L
LENS SHIFT (UP/DOWN)
H2
H1
H2
H1
LENS SHIFT (SIDE TO SIDE)
W2 W1
W2W1
Leftmost
Uppermost Downmost
Rightmost
SCREEN SIZE (INCH) AND THROW DISTANCE (m) LENS SHIFT/CENTER RATIO
Part No.
Zoom 40 60 80 100 120 150 180 200 250 300 350 400 500 600
U/D (MAX) SIDE(MAX)
H1 H2 W1 W2
LNS-W01Z
NONE 1.0 1.6 2.1 2.7 3.2 4.0 4.9 5.4 6.8 8.1 9.5 10.9 13.7 16.4 0 10 2 3
LNS-W02Z
TELE 1.6 2.4 3.3 4.1 4.9 6.2 7.4 8.3 10.3 12.4 14.5 16.6 20.8 24.9
0 10 2 3
WIDE 1.2 1.8 2.5 3.1 3.8 4.7 5.7 6.3 7.9 9.5 11.1 12.7 15.9 19.1
LNS-W03
LNS-W03E
NONE 0.7 1.0 1.4 1.8 2.1 2.7 3.3 3.6 4.5 5.5 6.4 7.3 9.2 11.0 1 1 1 1
LNS-W04
TELE 1.7 2.7 3.6 4.5 5.5 6.8 8.2 9.2 11.5 13.8 16.1 18.5 23.1 27.7
0 10 2 3
WIDE 1.3 2.0 2.7 3.4 4.1 5.2 6.3 7.0 8.8 10.5 12.3 14.1 17.6 21.2
LNS-W06
TELE 1.3 2.0 2.7 3.4 4.1 5.2 6.2 6.9 8.7 10.4 12.2 13.9 17.4 20.9
0 10 1 1
WIDE 1.0 1.6 2.1 2.6 3.2 4.0 4.8 5.3 6.7 8.0 9.4 10.7 13.4 16.1
LNS-S03
TELE -------- -------- -------- 7.9 9.5 11.9 14.3 15.9 19.9 23.9 27.9 32.0 40.0 48.0
0 10 2 3
WIDE -------- -------- -------- 5.8 7.0 8.8 10.6 11.8 14.7 17.7 20.7 23.7 29.6 35.6
LNS-S04
TELE -------- 3.4 4.6 5.8 7.0 8.7 10.5 11.7 14.7 17.6 20.6 23.5 29.5 35.4
0 10 2 3
WIDE -------- 2.6 3.5 4.4 5.3 6.7 8.1 9.0 11.3 13.6 15.9 18.1 22.7 27.3
LNS-M02
TELE -------- 6.0 8.1 10.2 12.3 15.5 18.6 20.7 26.0 31.2 36.5 41.7 52.2 62.7
0 10 2 3
WIDE -------- 4.5 6.1 7.7 9.3 11.7 14.1 15.7 19.7 23.7 27.7 31.7 39.7 47.7
LNS-T02
LNS-T02E
TELE 5.6 8.4 11.1 13.8 16.6 20.6 24.7 27.5 34.3 41.1 47.9 54.8 68.4 82.0
0 10 2 3
WIDE 4.1 6.1 8.0 10.0 11.9 14.8 17.7 19.7 24.5 29.4 34.3 39.1 48.9 58.6
LNS-T03
TELE 8.3 12.3 16.3 20.3 24.3 30.3 36.3 40.3 50.3 60.3 70.3 80.3 100.2 120.2
0 10 2 3
WIDE 5.8 8.5 11.2 13.9 16.7 20.7 24.8 27.5 34.3 41.1 47.9 54.7 68.3 81.9

Sanyo PLC HF10000L Specifications

General

Matrix size	1.65 \
Matrix type	3-panel (p-Si TFT active)
Projection distance	- m
Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 120 kHz
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	- \
Projector native resolution	-
Keystone correction, horizontal	30 °
Interface	USB
Power LED	Yes
RS-232 ports	2
Dimensions (WxDxH)	530 x 757 x 268 mm
Focus	Auto
Focal length range	- mm
Noise level	43 dB
Noise level (economic mode)	39 dB
Dot clock scanning frequency	230 MHz
Lamp power	380 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Wi-Fi	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Product color	Gray
Power consumption (standby)	18 W
Power consumption (typical)	955 W
Cables included	AC, RS-232

Weight and Dimensions

Weight	27600 g
