Sanyo PLC HF10000L Service Manual

-170-

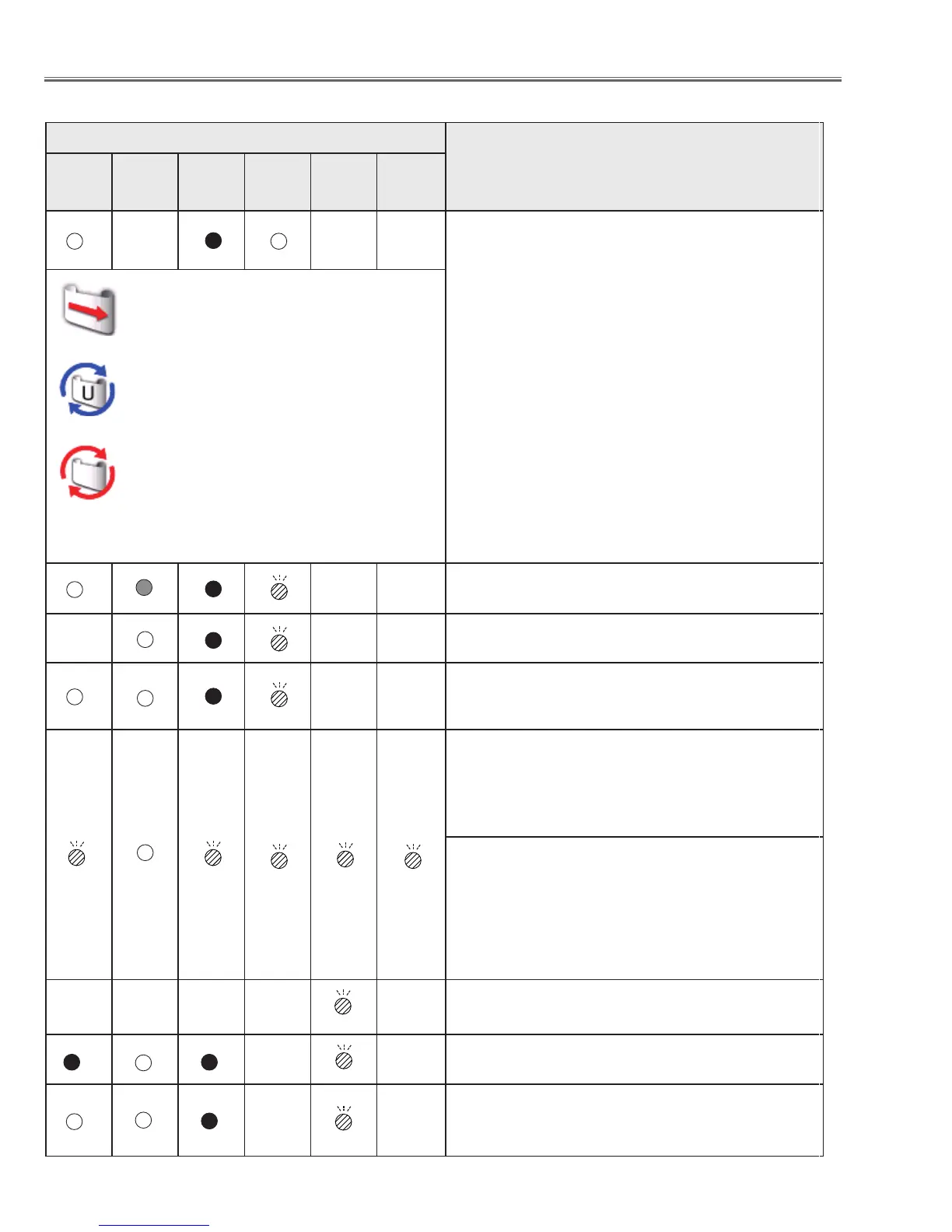

Troubleshooting
The projector is detecting abnormal condition.
Indicators
Projector Condition
POWER
green
LAMP
red
WARNING
TEMP.
red
WARNING
FILTER
orange
SHUTTER
blue
LAMP 1/2
REP.
orange
If the Filter counter reached a time set in the timer
setting, a Filter replacement icon (Fig.2) appears on
the screen and the WARNING FILTER indicator on
the top panel lights up. Replace the filter as soon as
possible. If the filter is out of scroll and the projector
reaches a time set in the timer setting, Fig. 3 appears
on the screen and the WARNING FILTER indicator
lights up. Replace the filter cartridge as soon as pos-
sible.
If the filter is clogged and no scroll is left in the filter
cartridge, a Filter cartridge replacement icon (Fig.4)
appears on the screen and the WARNING FILTER
indicator lights up. Replace the filter cartridge as
soon as possible.
✔Note:
• Fig.2, Fig.3 and Fig.4 icon will not appear when
the Display function is set to “Off” (p.48), or during
“Freeze” (p.29).
The projector detects an abnormal condition during
filter scroll.
The projector is being cooled down after detecting
an abnormal condition during filter scroll.
The projector has been cooled down enough and is
in the stand-by mode after detecting an abnormal
condition during filter scroll.
The filter cartridge is not installed in the projector.
Check the filter compartment to see if the filter car-
tridge is installed in the projector. When the filter car-
tridge is installed and the indicators continue to light
and blink, read the column below.
The projector detects an abnormal condition and
cannot be turned on. Unplug the AC power cord and
plug it again to turn on the projector. If the projector
is turned off again, unplug the AC power cord and
contact the dealer or the service center. Do not leave
the projector on. It may cause an electric shock or a
fire hazard.
The shutter is out of control.
The shutter is out of control. (The projector is in the
cooling mode.)
The shutter is out of control. (The projector is in the
stand-by mode.) In that case, contact the service sta-
tion immediately.
Fig.2 Filter replacement icon
Fig.4 Filter cartridge replacement icon
Fig.3
✽
✽
✽
✽
✽
✽
✽✽✽
✽ ✽
✽
✽
✽
✽
✽
✽
✽
✽

Sanyo PLC HF10000L Specifications

General

Matrix size	1.65 \
Matrix type	3-panel (p-Si TFT active)
Projection distance	- m
Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 120 kHz
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	- \
Projector native resolution	-
Keystone correction, horizontal	30 °
Interface	USB
Power LED	Yes
RS-232 ports	2
Dimensions (WxDxH)	530 x 757 x 268 mm
Focus	Auto
Focal length range	- mm
Noise level	43 dB
Noise level (economic mode)	39 dB
Dot clock scanning frequency	230 MHz
Lamp power	380 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Wi-Fi	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Product color	Gray
Power consumption (standby)	18 W
Power consumption (typical)	955 W
Cables included	AC, RS-232

Weight and Dimensions

Weight	27600 g
